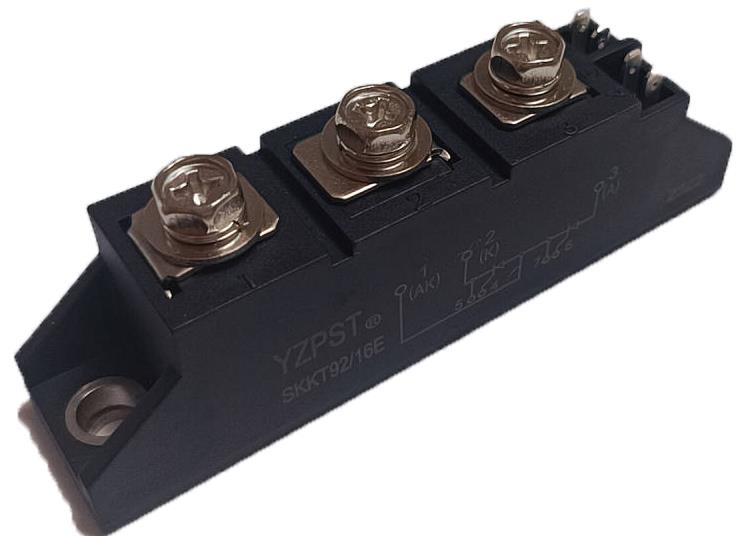

TYPE:YZPST-SKKT92/12E/16E
High reliability YZPST brand 1200V Thyristor Modules
Features
Heat transfer through aluminium nitride ceramic isolated metal baseplate
Precious metal pressure contacts for high reliability
Thyristor with amplifying gate
Typical Applications
DC motor control
AC motor starters
Temperature control
Professional light dimming
|
VDRM |
VRRM |
VRSM |
|
1200 |
1200 |
1300 |
|
1600 |
1600 |
1700 |
|
Symbol |
Conditions |
Values |
Units |
|
IT(AV)
IRMS |
sin. 180; TC=85°C |
95
150 |
A |
|
ITSM I2t |
Tvj=25°C; 10ms Tvj=25°C; 8.3…10ms |
2000 20 |
A KA2s |
|
VT IDD IRD |
Tvj=25°C; IT=300A Tvj=125°C; VRD=VRRM; VDD=VDRM |
max. 1.65 max. 20 |
V
mA |
|
tgd tgr |
Tvj=25°C; IG=1A; diG/dt=1A/μs; VD=2/3VDRM |
1 2 |
μs |
|
(di/dt)cr (dv/dt)cr tq IH IL |
Tvj=125°C Tvj=125°C Tvj=125°C Tvj=25°C; typ. /max. Tvj=25°C; RG=33Ω; typ. /max. |
max. 150 max. 1000 100 250 600 |
A/μs V/μs μs mA mA |
|
VGT IGT VGD IGD |
Tvj=25°C; d.c. Tvj=25°C; d.c. Tvj=125°C; d.c. Tvj=125°C; d.c. |
min.1.0 min. 35 max. 0.25 max.6 |
V mA V mA |
|
Rth(j-c) Rth(c-s) Tvj Tstg |
per thyristor /per module per thyristor /per module |
0.28 0.2 -40…+125 -40…+125 |
K/W K/W °C °C |
|
Visol |
a.c. 50Hz; r.m.s.; 1s/1min. |
3600/3000 |
V |
