P/N: YZPST-S2535 Series 25A SCRs
25A YZPST-S2535 SCRs series is suitable to fit all modes of control
DESCRIPTION:
Glass passivated thyristors in a plastic envelope, The YZPST-S2535 SCRs series is suitable to fit all modes of control, found in applications such as overvoltage crowbar protection, motor control circuits in power tools and kitchen aids, inrush current limiting circuits, capacitive discharge ignition, Softstart AC motor control and voltage regulation circuits…
|
Symbol |
Value |
Unit |
|
IT(RMS) |
40 |
A |
|
VDRM VRRM |
1200 |
V |
|
IGT |
35 |
mA |
ABSOLUTE MAXIMUM RATINGS
|
Parameter |
Symbol |
Value |
Unit |
|
Storage junction temperature range |
Tstg |
-40 ~150 |
℃ |
|
Operating junction temperature range |
Tj |
-40~125 |
℃ |
|
Repetitive peak off-state voltage (T =25℃) |
VDRM |
1200 |
V |
|
Repetitive peak reverse voltage (T =25℃) |
VRRM |
1200 |
V |
|
Non repetitive surge peak Off-state voltage |
VDSM |
VDRM +100 |
V |
|
Non repetitive peak reverse voltage |
VRSM |
VRRM +100 |
V |
|
RMS on-state current (T =100℃) |
IT(RMS) |
40 |
A |
|
Non repetitive surge peak on-state current |
ITSM |
350 |
A |
|
Average on-state current (180° conduction angle) |
IT(AV) |
25 |
A |
|
I2t value for fusing (tp=10ms) |
I2t |
450 |
A2S |
|
Critical rate of rise of on-state current (I =2×IGT, tr ≤ 100 ns) |
dI/dt |
150 |
A/μS |
|
Peak gate current |
IGM |
4 |
A |
|
Average gate power dissipation |
PG(AV) |
1 |
W |
|
Symbol |
Test Condition |
|
Value |
Unit |
|
IGT |
V =12V R =140Ω |
MAX. |
35 |
mA |
|
VGT |
MAX. |
1.3 |
V |
|
|
VGD |
VD=VDRM Tj=125℃ R=1KΩ |
MIN. |
0.2 |
V |
|
IL |
IG=1.2IGT |
MAX. |
75 |
mA |
|
IH |
IT=50mA |
MAX. |
50 |
mA |
|
dV/dt |
VD=2/3VDRM Gate Open Tj=125℃ |
MIN. |
500 |
V/μs |
STATIC CHARACTERISTICS
Thermal Resistances
Symbol
Parameter
Value(MAX.)
Unit
VTM
ITM =40A tp=380μs
Tj =25℃
1.65
V
IDRM
VD=VDRM VR=VRRM
Tj =25℃
500
μA
IRRM
Tj =125℃
6
mA

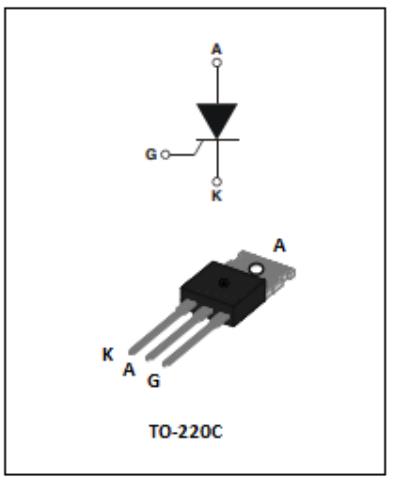

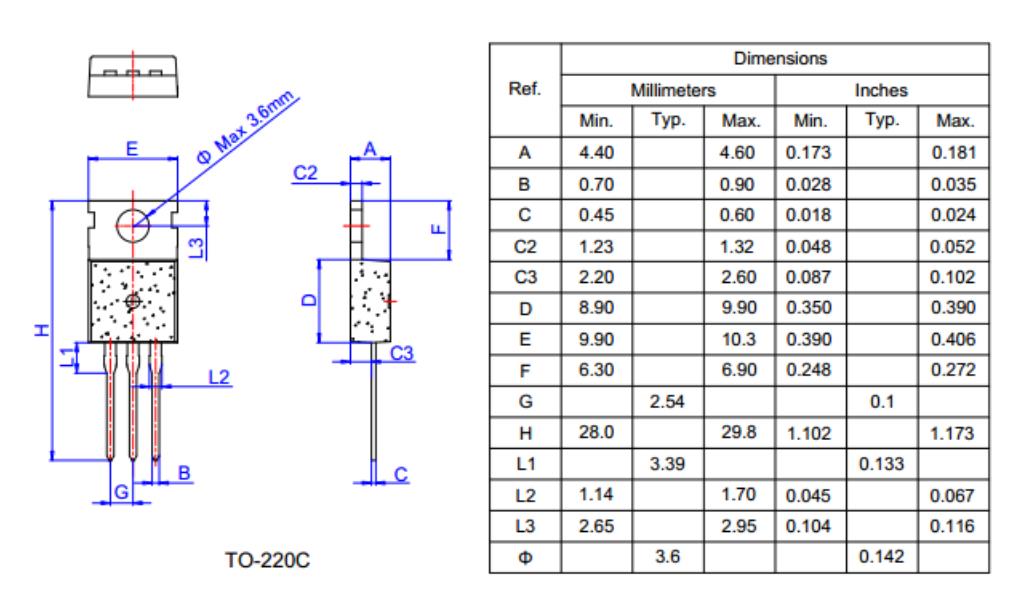

TO-220C Package Mechanical Data
Symbol
Parameter
Value(MAX.)
Unit
Rth(j-a)
junction to ambient(DC)
60
Rth(j-c)
Junction to case (DC)
0.9
℃/W
