Product details

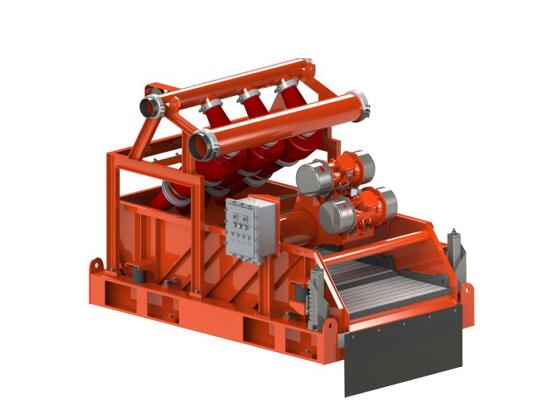

Oilfield Drilling Mud Desander

Desander is the second phase solids control equipment in drilling operation. Generally, there are a set of hydrocyclones in 8”, 10” or 12” in the desander, which mainly used for separating the solid particles sized in 47~76μm from the drilling fluids. The desander cleaner mainly consists of shale shaker, hydrocyclones, distribution manifold, and electric control cabinet and desander removes the abrasive solids from the drilling fluids which cannot be removed by shale shaker.

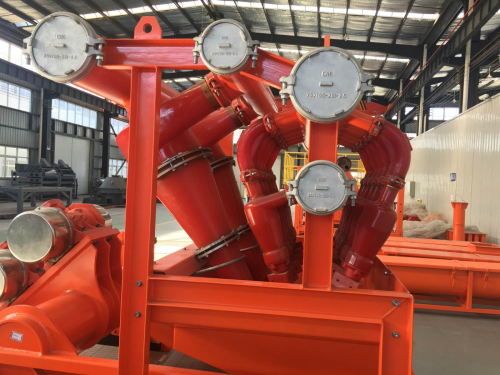

Desander 22 Desander 21

Characteristics and features

▲Used for the second stage separation equipment of the solid control system which is used in drilling and horizontal wells.

▲Separating solid particle size:40-100 micron.

▲Size and quantity of cones are optional.

▲Anti-splash system to protect motor and keep working-site clean.

Specifications and parameters

Model	KAZJ112-1S/2S	KAZJ113-1S/2S/3S	KAZJ114-2S/3S	KAW2S/3S
Cyclone Unit
Treatment Capacity(m³/h)	120/240	120/240/360	240/360	240/360
Desander Cyclone Size(inch)	10" (DN250)	10" (DN250)	10" (DN250)	10" (DN250)
Desander Cyclone Qty	1/2	1/2/3	2/3
Work Pressure(Mpa)	0.25～0.4	0.25～0.4	0.25～0.4	0.25～0.4
Inlet Size	DN150	DN150	DN150	DN150
Outlet Size	DN200	DN200	DN200	DN200
Parameters of Matching Shaker				Desander Without Bottom Shaker
Model	KAZS112	KAZS113	KAZS114
Vibration Model	Linear Motion	Linear Motion	Linear Motion
Motor Power(kW)	2x0.75	2x1.5	2x1.72
Screen Qty	2	3	4
Screen Size(mm)	750x900	585x1165	585x1166
Screen Area(㎡)	1.35	2.04	2.73
Output Force	≤7.1G	≤7.5G	≤7.5G
Double Amplitude(mm)	3.92～5.62	4.14～5.96	4.4～6.34
Double Amplitude(mm)	3.92～5.62	4.14～5.96	4.4～6.34
Deck Angle Adjustment	+2°	-3～+3°	-3～+3°
Explosion-proof	China Ex/IECEX/A-TEX
Weight & Szie
Weight(kg)	1048/1105	1490/1550/1610	1762/1822	560/615
Dimensions(mm)	1718x1470x1615	2058x1762x1820	2650x1762x1820	1900x885x2070

The mud circulation system mainly consists of drilling fluid shale shaker, vacuum degasser, desander, desilter, integrated desander and desilter, liquid-gas separator, agitator, sand pump, shear pump, centrifuge, electronic ignition device, mixing funnel, jet slurry mixing device, mud tank and other stone oil drilling solid control equipment and a complete set of mud circulation system.
