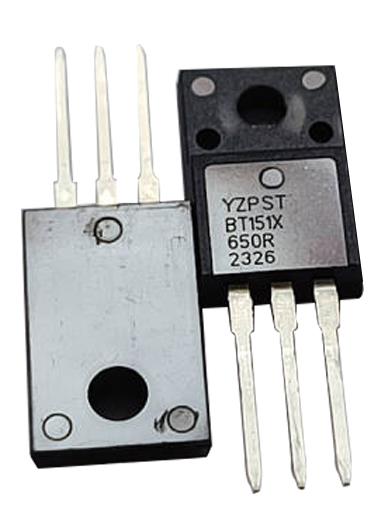

BT151 Series 12A SCRs
YZPST-BT151X-650R
Glasspassivated thyristors in aplastic envelope, The BT151 SCRs series is suitable to fit all modes of control,found in applications such as overvoltage crowbar protection, motor control circuits in power tools and kitchen aids, inrush current limiting circuits, capacitive discharge ignition and voltage regulation circuits
MAIN FEATURES
|
Symbol |
Value |
Unit |
|
IT(RMS) |
12 |
A |
|
VDRM VRRM |
650 |
V |
|
IGT |
15 |
mA |
|
Parameter |
Symbol |
Value |
Unit |
|
Storage junction temperature range |
Tstg |
-40 ~ 150 |
℃ |
|
Operating junction temperature range |
Tj |
-40~ 125 |
℃ |
|
Repetitive peak off-state voltage (T =25℃) |
VDRM |
650 |
V |
|
Repetitive peak reverse voltage (T =25℃) |
VRRM |
650 |
V |
|
RMS on-state current (T = 105℃) |
IT(RMS) |
12 |
A |
|
Non repetitive surge peak on-state current ( 180° conduction angle, F=50Hz) |
ITSM |
100 |
A |
|
Average on-state current ( 180° conduction angle) |
IT(AV) |
8 |
A |
|
I2t value for fusing (tp= 10ms) |
I2t |
45 |
A2S |
|
Critical rate of rise of on-state current (I =2 ×IGT, tr ≤ 100 ns) |
di/dt |
50 |
A/μS |
|
Peak gate current |
IGM |
4 |
A |
|
Average gate power dissipation |
PG(AV) |
1 |
W |
|
Symbol |
Test Condition |
|
Value |
Unit |
|
IGT |
V = 12V R = 140Ω |
MAX. |
15 |
mA |
|
VGT |
MAX. |
1.3 |
V |
|
|
VGD |
VD=VDRM Tj=125℃ R= 1KΩ |
MIN. |
0.2 |
V |
|
IL |
IG= 1.2IGT |
MAX. |
50 |
mA |
|
IH |
IT=50mA |
MAX. |
30 |
mA |
|
dV/dt |
VD=2/3VDRM Gate Open Tj=125℃ |
MIN. |
400 |
V/μs |
STATIC CHARACTERISTICS
Thermal Resistances
Symbol
Parameter
Value（MAX.）
Unit
VTM
ITM =23A tp=380μs
Tj =25℃
1.6
V
IDRM
VD=VDRM VR=VRRM
Tj =25℃
5
μA
IRRM
Tj =125℃
2
mA
TO-220FW Package Mechanical Data
Symbol
Parameter
Value
Unit
TO-220M1
60
Rth(j-a)
junction to ambient
TO-220FW
50
TO-252
70
TO-220M1
1.5
℃/W
Rth(j-c)
Junction to case
TO-220FW
4.5
TO-252
2
