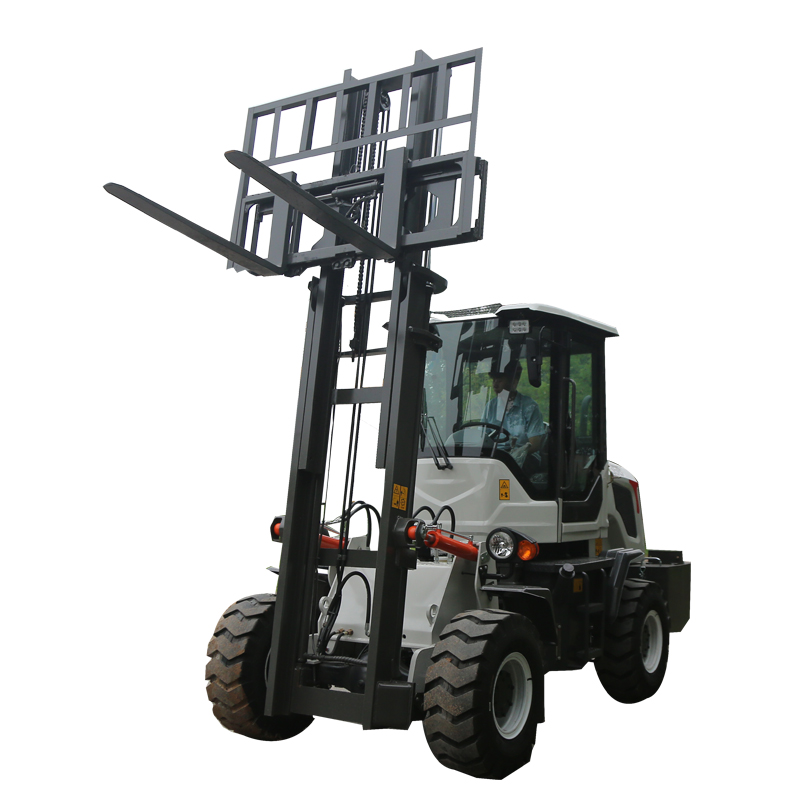

Features of off-road forklift:
1. Four-wheel drive cross-country forklift has excellent passability and cross-country all-wheel drive capability. There was no differential between the axles, and wide-base off-road tires with large diameters were used.
2. The articulated frame is chosen, the steering system is simple, the expensive steering drive shaft is not required, and the small turning radius can be achieved. Operating the steering wheel can swing the frame horizontally, so that the fork is easy to align with the material, suitable for small tonnage off-road forklifts.
3. All-wheel brake of four-wheel drive cross-country forklift truck. Most small tonnage forklifts use caliper disc brakes, except those that use an extended brake shoe brake structure. Large tonnage forklifts also use wet brakes. Parking brakes are more widely used together with independent hand brakes.
4. The rear axle of the four-wheel drive cross-country forklift is fixed on the frame, and a supporting hydraulic cylinder is arranged between the frame and the front axle. When the forklift is lifting, the hydraulic cylinder works to keep the lifting door frame in the side plumb state.
Size
4200*1800*2700mm
Power
58kw
Engine
490 Turbo
Climbing angle
≤38 °c
Fork length
1220mm
Rated lifting height
3000~6000mm
Rated lifting weight
3500kg
Ground clearance of gantry
250~350mm
Turning radius
3500mm
Driving mode
Four wheel drive
Wheelbase center ground clearance
300mm
Gearbox
265 Double high and low speed
Axle
Heavy casting steel bridge with small wheel rim
Hinge thickness
30mm
tyre
Steel wire 20.5/70-16
Gantry width
160mm
