Sinotruk brand new cement mixer truck price
La batterie industrielle 24V/210Ah a une puissance puissante et durable et peut répondre aux besoins de manutention de fret à haute fréquence de la plupart des entreprises. Conception modulaire, fonctionnement pratique, fonctionnement stable, conception de placement de batterie à traction latérale, démontage et entretien rapides. Cadre de porte à large vue conçu avec de l'acier en forme de H, 2e niveau standard 3m ; Le cadre de porte de 2,5 à 5,5 m au 2e ou 3e niveau est facultatif

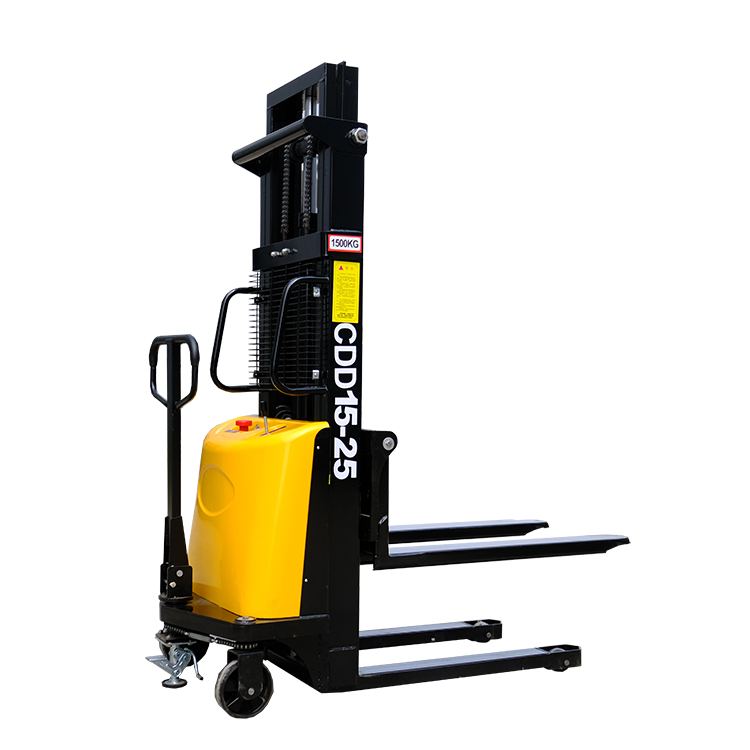

Main drawing display
电动堆高车CDD15参数表
Basic parameters
Performance
Product number
CDD15
Driving speed laden/unladen
4/5Km/h
Drive form
electric
Maximum lifting speed without load
100mm/s
Driving style
Walking
Maximum lifting speed with full load
50mm/s
Rated load
1500KG
Maximum gradeability full load/unloaded
3/5%
Wheelbase
1241mm
Braking method
Electromagnetic brake
Weight (including battery)
545KG
Electric machine
Basic size
Drive motor power
0.75Kw
Total height (when the fork is lowest)
2080/1580/1830/2080/2330mm
Increase motor power
2.2Kw
Total height (when the fork is highest)
2080/2560/3060/3560/4060mm
Battery voltage/capacity
2*12V/80Ah
Lifting height
1600/2000/2500/3000/3500mm
wheel
Height of forks from the ground (at the lowest time)
85mm
Tires
Polyurethane wheel
The height of the operating handle from the ground
1230/750mm
Drive wheel size
210*70
Vehicle length
1791mm
Front wheel size
80*70
Vehicle width
822mm
Balance wheel size
125*50
Fork size
60/160/1100
Number of wheels
1x+1/4
Outer width of fork
680mm
Front track
520mm
Minimum ground clearance
30mm
Rear track
513mm
Right-angle stacking channel width, pallet 1000*1200
2305mm
Turning radius
1431mm
