BTA06/BTB06 Series 6A Triacs

YZPST-BTA06-600BW

High dv/dt rate 600V BTA06-600BW 6A triac

DESCRIPTION:
With high ability to withstand the shock loading of Large current, BTA06/BTB06 series triacs provide high dv/dt rate with strong resistance to electromagnetic interface.
With high commutation performances, 3 quadrants products especially recommended for use on inductive load. From all three terminals to external heatsink, BTA06 provides a rated insulation voltage of 2500 VRMS complying with UL standards

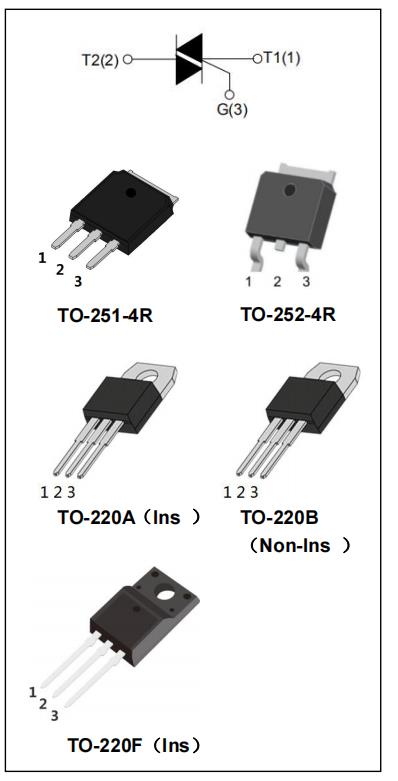

TO-220

MAIN FEATURES:

symbol	value	unit
IT(RMS)	6	A
VDRM/VRRM	600/800	V
VTM	≤1.5	V

ABSOLUTE MAXIMUM RATINGS:

Parameter	Symbol	Value	Unit
Storage junction temperature range	Tstg	-40~150	℃
Operating junction temperature range	Tj	-40~125	℃
Repetitive peak off-state voltage (Tj=25℃)	VDRM	600/800	V
Repetitive peak reverse voltage (Tj=25℃)	VRRM	600/800	V
RMS on-state current	IT(RMS)	6	A
Non repetitive surge peak on-state current (full cycle, F=50Hz)	ITSM	60	A

I2t value for fusing (tp=10ms)	I2t	18	A2s
Critical rate of rise of on-state current(IG=2 × IGT)	dI/dt	50	A/ μs
Peak gate current	IGM	2	A
Average gate power dissipation	PG(AV)	1	W
Peak gate power	PGM	5	W

ELECTRICAL CHARACTERISTICS (Tj=25℃ unless otherwise specified)

3 Quadrants：

Parameter				Value
Parameter	Test Condition	Quadrant		TW	SW	CW	BW	Unit
IGT	VD=12V,			5	10	35	50	mA
VGT	RL=33Ω	Ⅰ- Ⅱ-Ⅲ	MAX	1.5				V
VGD	VD=VDRM	Ⅰ- Ⅱ-Ⅲ	MIN	0.2				V
IH	IT=100mA		MAX	6	10	35	60	mA
		Ⅰ-Ⅲ		10	15	50	70
IL	IG=1.2IGT	Ⅱ	MAX	15	25	60	80	mA
	VD=2/3VDRM Tj=125℃ Gate open
dV/dt	VD=2/3VDRM Tj=125℃ Gate open		MIN	50	100	500	1000	V/ µs

4 Quadrants：

Parameter				Value
Parameter	Test Condition	Quadrant		C	B	Unit
		Ⅰ- Ⅱ-Ⅲ		25	50	mA
IGT	VD=12V,	Ⅳ		50	70	mA
VGT	RL=33Ω	ALL	MAX	1.5		V
VGD	VD=VDRM	ALL	MIN	0.2		V
IH	IT=100mA		MAX	40	60	mA
IL	IG=1.2IGT	Ⅰ-Ⅲ- Ⅳ	MAX	50	70	mA

THERMAL RESISTANCES

Symbol	Test Condition		Value	Unit
		TO-251-4R/ TO-252-4R	2.8
		TO-220A(Ins）	3.4
		TO-220B(Non-Ins）	2.2	℃/W
Rth(j-c)	junction to case(AC)	TO-220F(Ins）	3.2

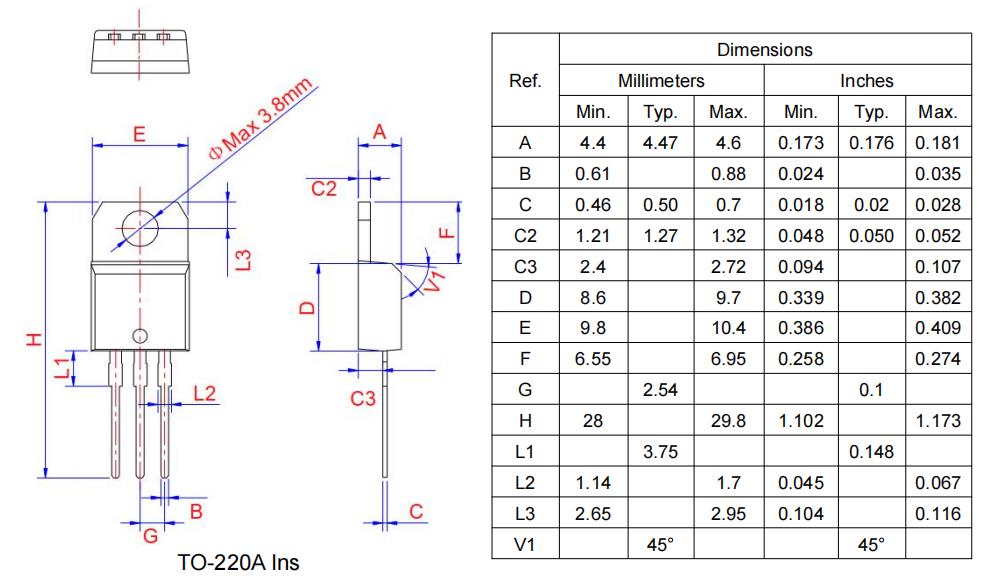

PACKAGE MECHANICAL DATA
