Product details

One color pad printer//Usage and characters

Drawing on the principle of the cylindrical screen printer, through necessary improvements, the pad printer can also perform pad printing in the circumferential direction of some cylindrical products. In the action of the fixture, the fixture can drive the product to rotate; the time for the pad printing rubber head to press down and the product to stay lasts until the product rotates one circle and the pattern ends. First, install the product on the fixture, the rubber head presses down to contact the product and remains stationary, and the fixture drives the product to rotate along the rubber head until the pattern on the rubber head is transferred to the cylinder.

This cylindrical product pad printer uses servo motor control for fixture rotation and worktable shuttle, ensuring the precise contact between the product rotation process and the rubber head. The control device uses PLC and touch screen panel to make the adjustment of the machine more convenient. This is very useful for products that have a precise positional relationship between the pattern and the product and require high precision!

The printing area of the pad printing machine is generally 90% of the size of the steel plate, and the pad printing opportunity of the oil cup is even smaller. Most pad printing machines use the stroke of the oil cup to move forward and backward to expand the printing area, but if the stroke is too large, it will The accuracy of the pad printing machine is reduced, and the adjustment is difficult, so there is a pad printing machine with the oil cup moving left and right. The oil cup moves left and right, which can greatly increase the size of the steel plate and the printing area will also increase significantly. The pad printing machine with the oil cup moving left and right is very suitable for pad printing products with a long length, such as infusion tubes, clubs, turnover boxes, rulers and other products.

P1-412CRRS One color pad printer with lateral movement cup //Structure
Working table	Standard working table with 3-size adjustment
Ink supply system	Closed -type system
Plate type and size	0.3mm Thin steel plate. Size ：100*300mm.
Pad dropping control	Simple-cylinder , simultaneously pressing
P1-412CRRS One color pad printer//Usage and characters

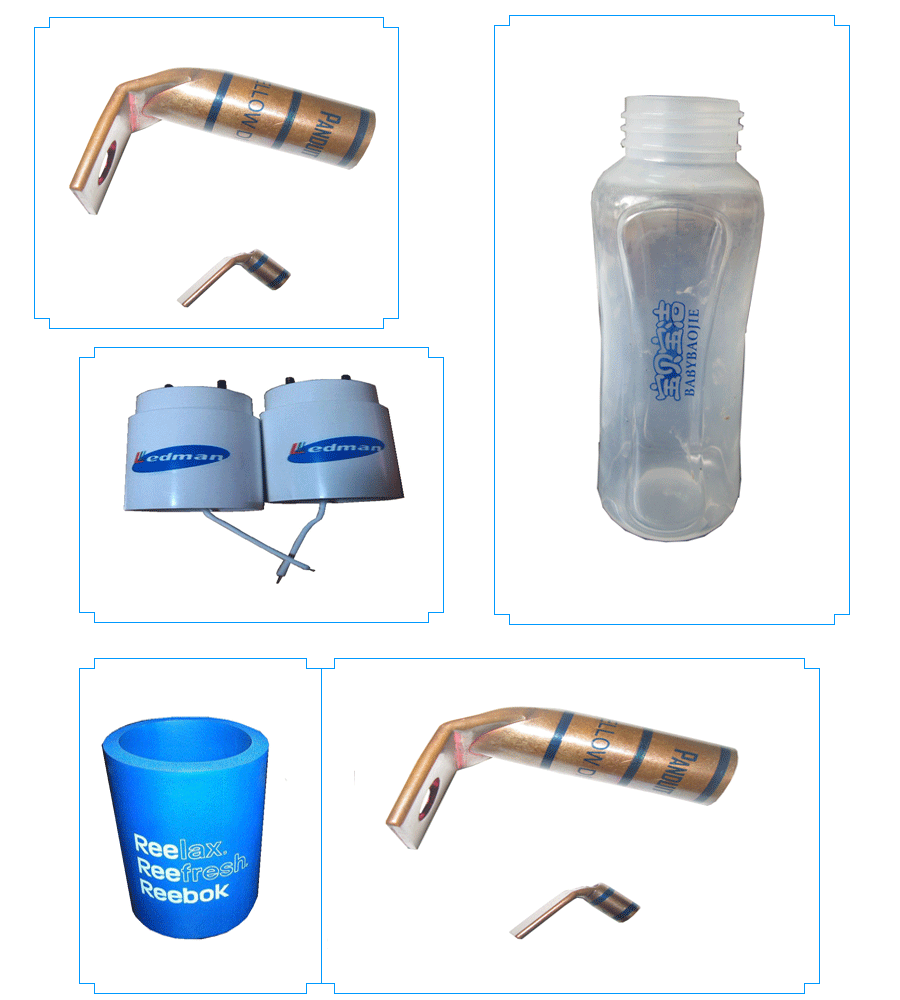

Application fields	Electrons, hardware, autos, toys, gifts, Plastics, household appliances, artwork, stationery, adornment, cosmetic, commodity, sport goods, decorative lightings, woodwork, office supplies, Photo Materials, Kitchen utensils, Hotel supplies, Computer, Mobile, etc., industrial field.
P1-412CRRS One color pad printer //Parameter
Technical parameters	Max. steel plate: 100 ×300mm； Ink cup size: Ф90mm； Max. printing area :50×380 mm ； Printable color quantity:1； Max. printing speed: 1000 pcs/h; Table size: 165*500mm
Works supply	110V-220VPower supply； 5-7Bar Compress air；
Package list	Package size:1.270×0.570×1.470m; Gross weight: 176Kg; CBM: 1.064133
H.S.Code	8443198000
Certicate	CE

Advantage

Sealed cup move from right to left and fit for printing long objects;
Using the dimensional modulating table, can be up and down, front, left, and rotation of the adjustment, which will help precise printing;
T-slot structure, easy installation of fixtures and products;
Hand pick and place workpiece, operating more handy;
Microcomputer program control, the movement is more accurate and reliable;
Test machine can be a single action adjustment, adjustment is completed, you can use the automatic mode of operation;
Equipped with four counters, can effectively measure the number of products;
Structure using die-casting aluminum, lightweight and solid.
Independent Rubber pad up and down stroke and speed adjustment function;
Sealed cup ink system, ink savings, and also to prevent the ink in the VOC emission into the air pollution of the environment, health protection of operating personnel;
Sealed cup glide independent driving cylinder Blade pressure and Ink Removing Completely;
Either use the tungsten steel ring, you can use a ceramic ring, and easy to replace;
Temporary shutdown can prevent the ink to dry within the Sealed cup with INK function;
World famous pneumatic components to ensure the long service life of machine;
Rubber sliding shaft with hardened guide shaft grinding of high hardness, good abrasion resistance.

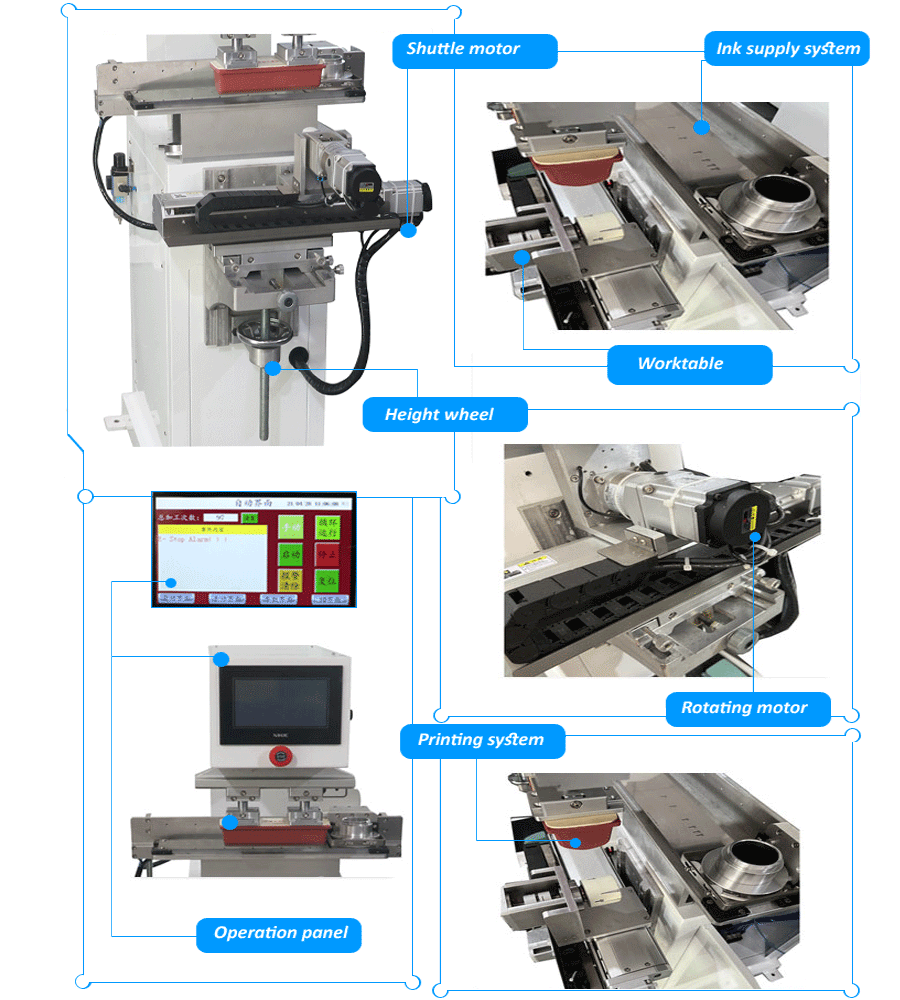

Machine details

Pad printers target a wide variety of products, with differences in shape and material. Different products have different printing positions and printing effects. Printing engineers must design different printing processes and select different printing consumables according to user needs.
1) Pad printing plates: The plates are made of thick steel plates, thin steel sheets, resin plates, etc. They are used on oil cup pad printers or open pad printers. The printed pattern needs to be etched on the plates. Generally, a single-color pad printer is equipped with one plate, a two-color pad printer is equipped with two plates, and so on.
2) Fixture: The printed product must be fixed on the workbench with a fixture to ensure that the printing position meets the requirements. The fixture can be made of metal or non-metal materials. A single-color pad printer and a shuttle pad printer require a fixture, while a turntable pad printer needs to be equipped with a number of fixtures equal to the number of workstations.
3) Ink: The ink type is selected according to the material of the product, and the ink color is selected according to the printed pattern. Different types of inks should match different pad printing processes. After the ink dries, it should be able to firmly adhere to the product surface. A single-color pad printer uses one color of ink at a time, a four-color pad printer uses four colors of ink, and so on.
4) Pad printing rubber head: Different product shapes and different pad printing patterns require pad printing rubber heads of different shapes. The pad printing rubber head should be able to perfectly achieve the pad printing task and maintain the stability of the properties.
5) Blade or oil cup: Blades are used on open pad printing machines, and oil cups are used on closed pad printing machines. Blades and oil cups should be able to scrape off the ink on the steel plate and should be replaced in time when damaged.
