Model
|
MLWF350H
|
|
Motor Power
|
3.0 KW
|
|
Air Volume
|
3000~3500 m^3/h
|
|
Filter Efficiency
|
0.3um 99.9%
|
|

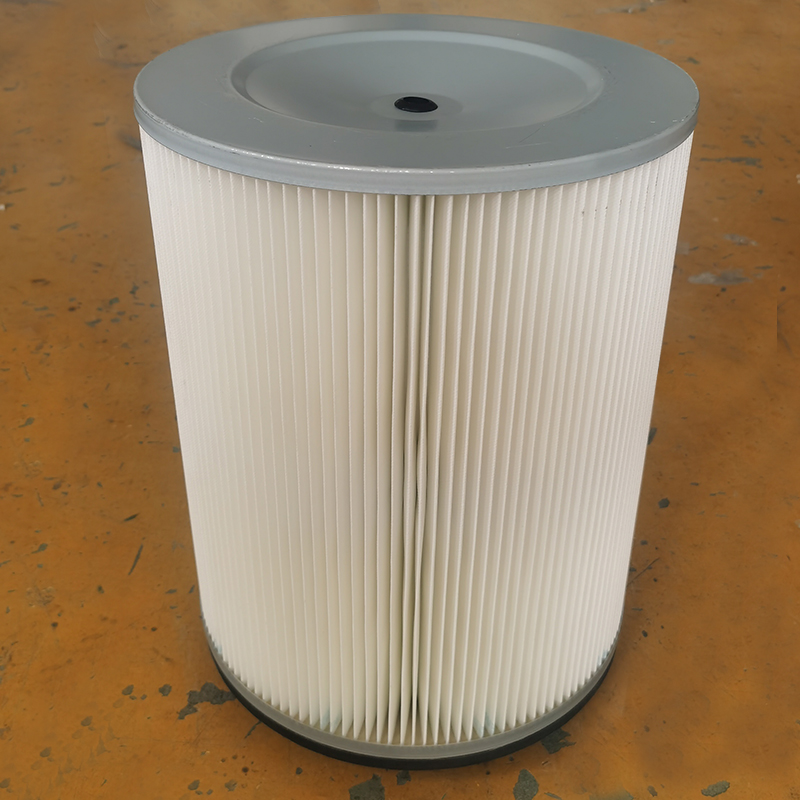

Filter Material
|
Imported flame retardant coated polyester fiber
|
|
Extraction Arm Size
|
Dia. 160mm * Length 3m or customized
|
|

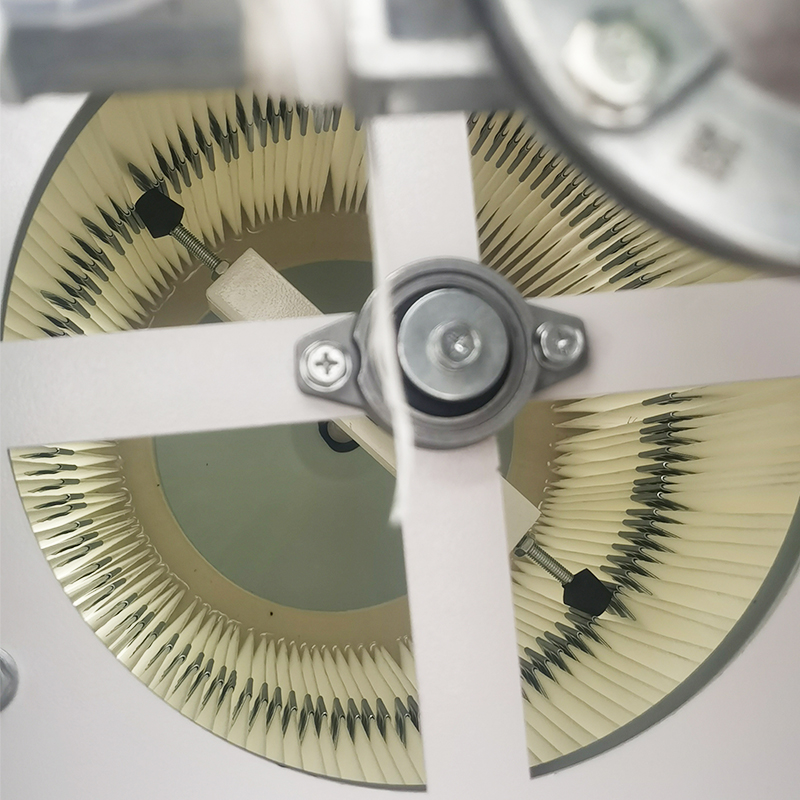

Cleaning Mode
|
Pulse jet cleaning + Mechanical vibration
|
|
Filter Area
|
16 m^2
|
|
Noise Level
|
72±3dBA
|
|
Size
|
900*800*1700mm
|
|
Weight
|
200kg
|
|
Logo
|
Moland or customized
|
|
Color
|
White or customized
|
|
Application
|
Suitable for non-oily welding conditions such as electric welding, argon arc welding, and secondary protection welding, etc.
|
Standard Configuration
1. Filtration efficiency ≥99.9%
2. Phase failure protection, overload protection, air pressure monitoring device.
3. PLC intelligent control system
4. Pressure differential gauge

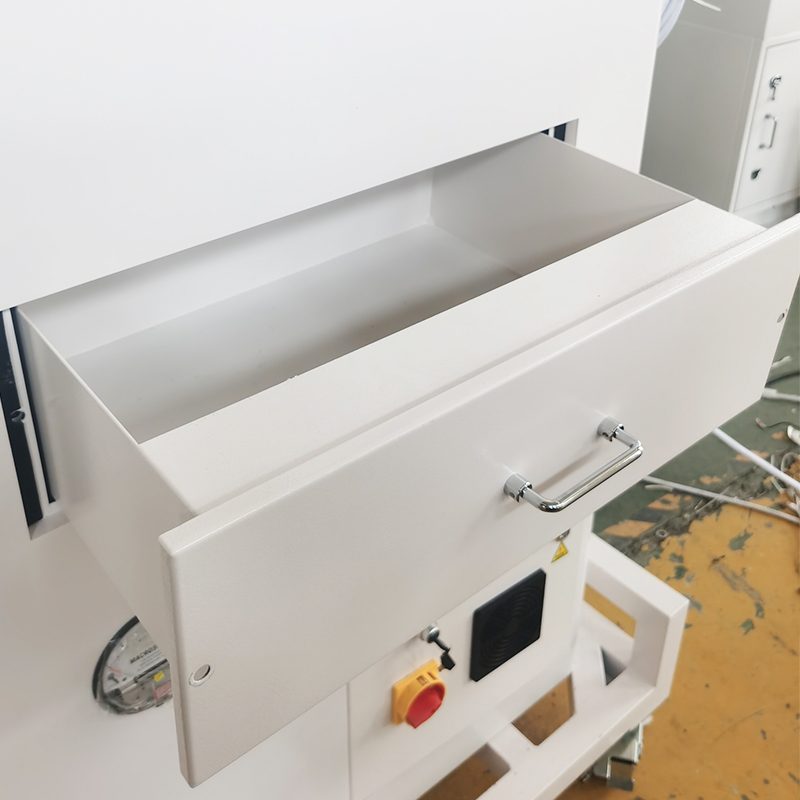

5. 40L dust collection drawer
6. 10m power cord
7. External support extraction arm
Feature Description
1. Integrated structure, small footprint
2. Power supply status monitoring: over-voltage and under-voltage alarms when the wrong phase is broken to prevent damage to the motor and electrical components.
3. Air pressure condition monitoring: alarm when air source pressure is too low to prevent incomplete cleaning. The differential pressure gauge visually displays the use status of the filter, and the dust is automatically pulse when the differential pressure is too high.
4. When the pointer of the differential pressure gauge reaches 1.5~2, it can be cleaned by hand (manual mechnical cleaning function).
Applicaiton
The mobile fume extractor is apply to welding fume, cutting fume and dust, laser welding cutting fume, plasma cutting fume, grinding and polishing dust, drilling dust, stirring and blanking dust, etc.
Recommended working conditions:
welding station (2*2*3m), maunal welding, grinders, grinding, cutting, polishing, etc.
