Rectifier Diode Modules
YZPST-M1D400-2800V
Features
· Heat Transfer Through Aluminium Oxide Ceramic Isolated Metal Baseplate
· Hard Soldered Joints For High Reliability
· UL Recognized
Typical Applications
· Rectifier for drives applications
· Rectifiers for UBS
· Battery chargers
BLOCKING
|
Symbol |
Condition |
Ratings |
Unit |
|
VRRM VRSM |
Tj= Tj Max. |
2800 2900 |
V |
|
IRRM |
AtVRRM ，Single phase ，half wave ，Tj= Tj Max. |
40 |
mA |
|
VISOL |
50Hz, 1min, 1s |
3000/3600 |
V |
CONDUCTING
|
Symbol |
Condition |
Ratings |
Unit |
|
IF(AV) |
TC=97°C; 180° sine |
400 |
A |
|
IF(RMS) |
TC=85°C; 180° sine |
628 |
A |
|
IFSM |
Tj= Tj Max.; t = 10 ms (50 Hz); sine |
8.0 |
KA |
|
I2t |
Tj= Tj Max.; t = 10 ms (50 Hz); sine |
320 |
kA2S |
|
VF(TO) |
(I > π x IF(AV)),Tj= Tj Max. |
0.80 |
V |
|
rF |
(I > π x IF(AV)),Tj= Tj Max. |
0.800 |
mΩ |
|
VFM |
On-State Current 1570A ，Tj=25°C |
2.4 |
V |
Electrical Characteristics
| Symbol | Condition | Ratings | Unit |
| Rth(j-c) | Per Module | 0.034 | K/W |
| Rth(c-h) | Per Module | 0.01 | K/W |
| Tj | -40 ~ + 150 | °C | |
| Tstg | -40 ~ + 150 | °C | |
| M | mounting torque | 6 | Nm |
| terminal torque | 12 | Nm | |
| W | - | g |

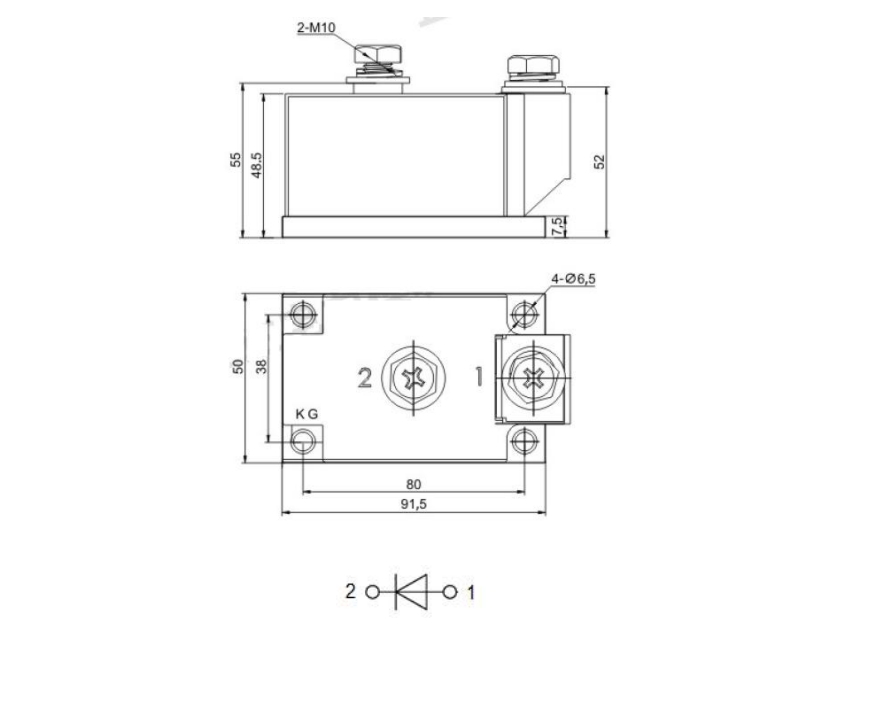

Outline Drawing
