SCR P/N:YZPST-TYN616
Package
TO-220C
Main Feature Tj=25℃
Symbol
Value
Unit
IT (RMS)
16
A
VDRM / VRRM
600
V
IGT
2 to15
mA
Absolute ratings (Limiting Values)
|
Symbol |
Parameter |
Value |
Unit |
|
IT (RMS) |
RMS on-state current (180 °conduction angle) |
16 |
A |
|
IT(AV) |
AV on-state current (180 °conduction angle) |
10 |
A |
|
ITSM |
Non repetitive surge peak on-state Current (tp= 10ms) |
160 |
A |
|
I2t |
(tp= 10ms) |
100 |
A2S |
|
IGM |
Peak gate current(tp=20us) |
4 |
A |
|
PGM |
Peak gate power |
5 |
W |
|
PG(AV) |
Average gate power |
1 |
W |
|
Tstg Tj |
Storage temperature Operating junction temperature |
-40--+150 -40--+125 |
℃ |
Thermai Resistances
|
Symbol |
Parameter |
Value |
Unit |
|
Rth (j-c) |
Junction to case |
1. 1 |
K/W |
|
Rth (j-a) |
Junction to ambient |
55 |
K/W |
Symbol
Test Conditions
Value
Unit
Min
Type
Max
IGT
VD=6V, RL= 100Ω
2
5
15
mA
VGT
VD= 12V, RL= 100Ω
-----
0.7
0.8
V
VGD
VD=VDRM, RL=3.3KΩ Tj=110℃
0.2
-----
-----
V
IH
IT= 100mA Gate Open
-----
30
40
mA
dV/dt
VD=67%VDRM, GateOpen, Tj=125℃
400
v/μs
-----
-----
VTM
IT=24A,tp=380μs
-----
-----
1.7
V
IDRM
VD=VDRM
Tj=25℃
-----
-----
10
uA
Irrm
VR=VRRM
Tj=125℃
-----
-----
1
mA

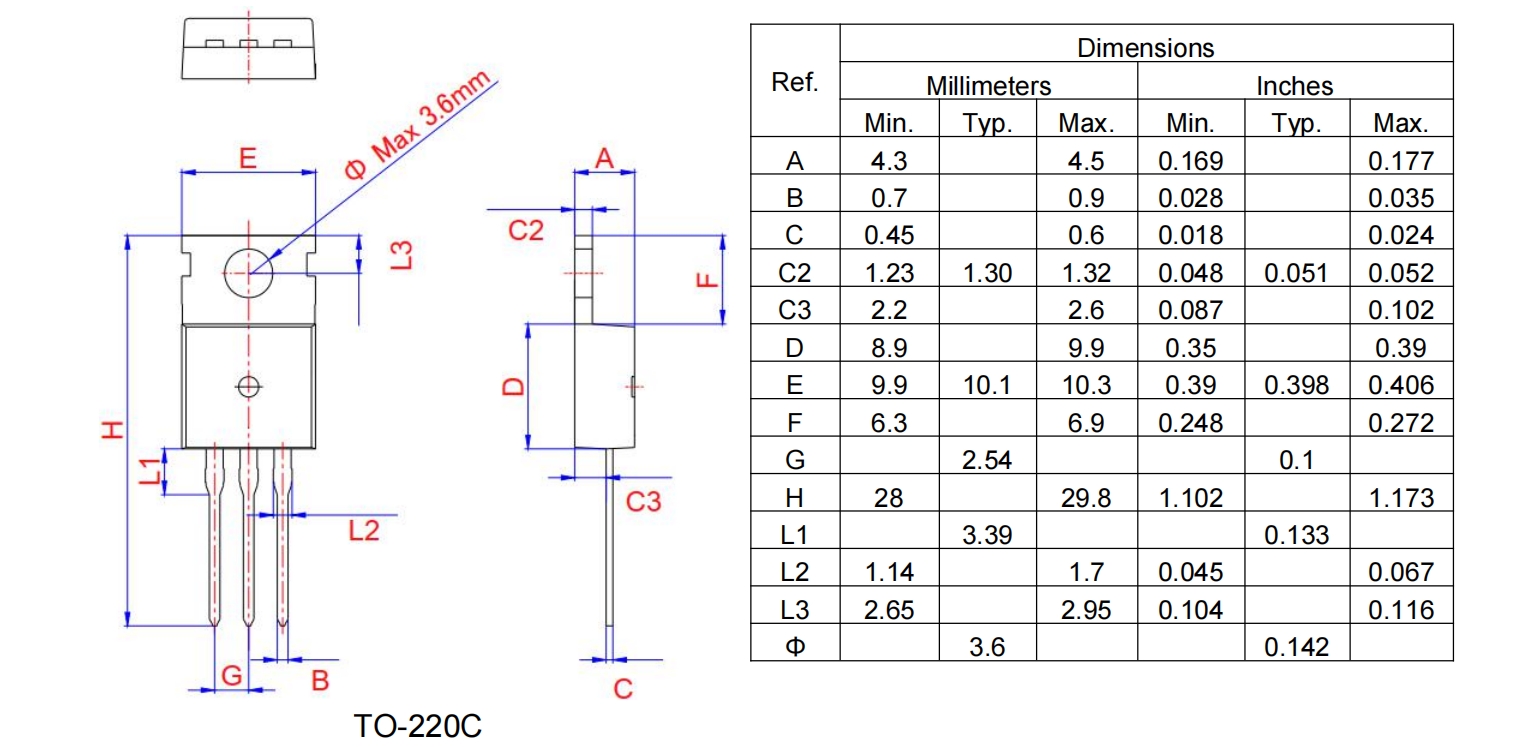

Measure of package
