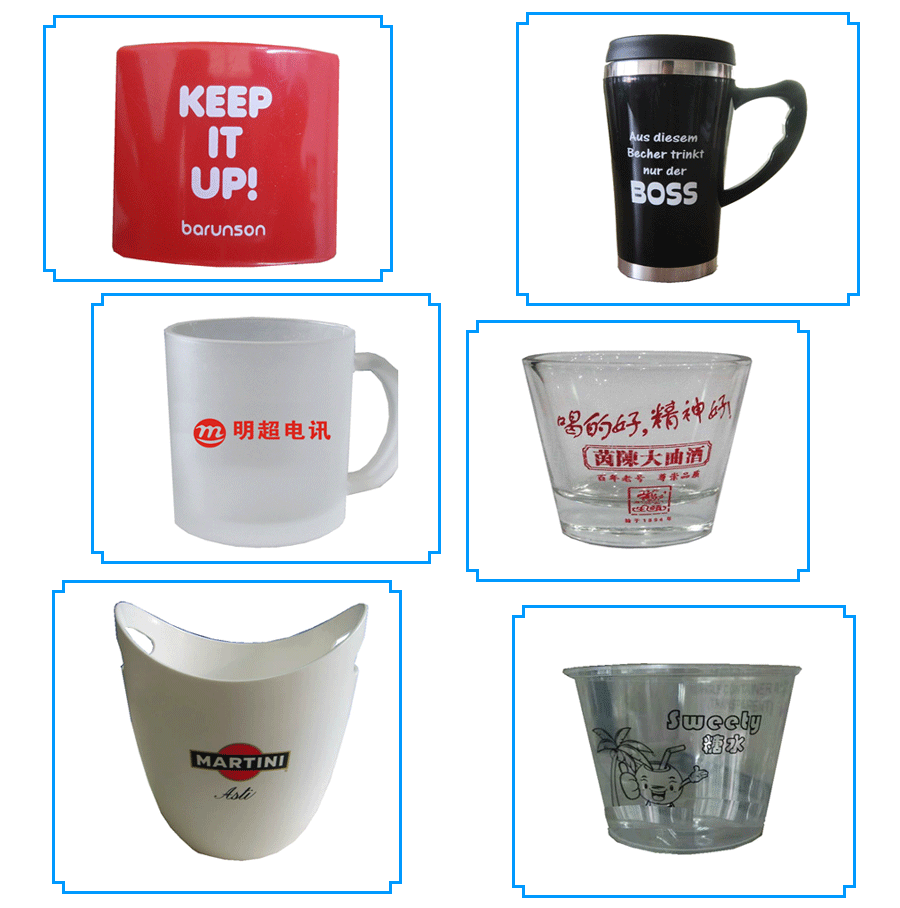

Samples show

255

Machine description

220mm in diameter, suitable for printing less, hollow plastic bottles, hose, there is a slight taper of the hard and soft surface material color screen.
Used in baby bottles, cosmetic bottles, medicine bottles, filters, ignition and other hollow containers monochrome screen printing;
With surface UV curing machine M-1030UVS can be UV screen printing of plastic containers;
Solvent ink for screen printing, UV screen printing inks, screen printing ink printing a variety of functions;
Upper and lower part of table type surface screen printing machine, take place after the table automatically lifting the work piece;
You can use the foot switch for automatic operation, the safety factor greatly increased;
Multi-type screen printing machine, Both printing round objects and printing taper and flat objects, hardware replacement only way a simple gas conversion, will be able to achieve a multifunctional , and reduce costs.

S-220S Multi-function screen printing Machine //Parameters

Max. printing height: 320 mm;
Max. Printing diameter:;whole circle: 220 mm;.arc: 680 mm;
Max. printing speed: 1000 pcs/hr;
Air consume: 80 Litre/min(6bar).
Max Screen Frame: 850×450mm;
Stroke up-and-down of working table: 150mm;
Stroke up-and-down of Squeegee: 50mm;
Max length of printing objects: 400mm;
Range back-forth of Squeegee: 250mm;
Diameter of Fixture axis: 18mm;
Range back-forth of screen frame: 180mm
Works supply: 110V-220V Power supply;5-7 Bar compress air;
Package Dimension: 1130*1560*1360mm;
Gross weight: 190kg;
CBM: 2.3974
H.S.CODE: 8443198000
Certificate: CE

Details description-Advantage

Choose clamp-type Workbench can be inflatable, or may not be blowing, can be placed all types of round, oval-shaped substrates;
Contact with the substrate , Working table up and down, to facilitate the placement of the substrates and removed;
High Precision axis control. Working table up and down, smooth running, accuracy up to 0.07mm;
High Precision axis control movement. Screen printing pressure is uniform and reliable, the accuracy up to 0.07mm;
Self-balance scraper technology and back blade, to ensure uniformity of ink, ink formation;
Microcomputer control program operations, set up a variety of modes;
Four counts digital LED count, high degree of automation;
Printed Stroke mechanical adjustments, adjust the speed of integrated circuit digital.
Around the screen frame, up and down the emblem of the tune, overlay accuracy, tuning and quick
