ZJ50/3150 Drilling Rig for Oil Gas Geothermal Well

Product introduction

All the rig's systems of power,drawworks,mast,traveling block and transmission system are equipped to the self-proplled chassis.The rig is easy and low cost to be transported,and it has reliable performance,large working load and good off-road power. The basi parameters and overall design conform to the APl standard and HSE system. Adopt mature,reliable,practical and advanced technology.Key components of diesel engine,transmission case and so on are selected imported components.

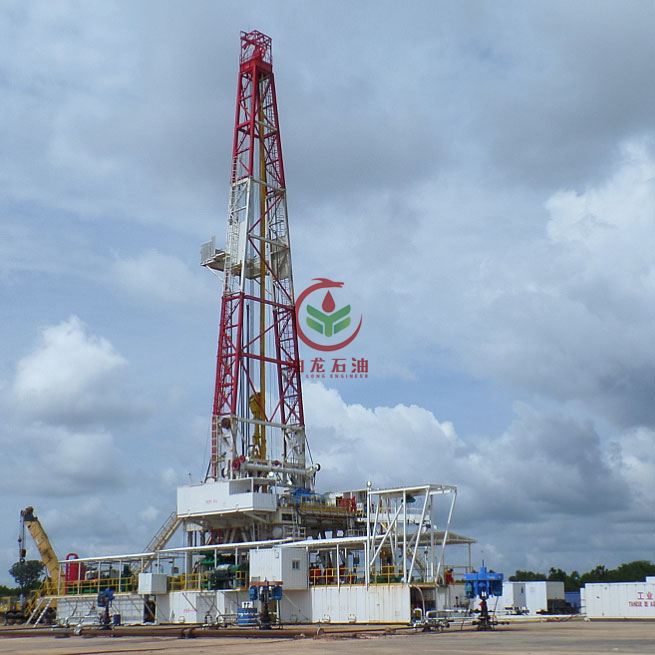

Drilling Onsite1

Over 4 decades,We have been specializing in drilling rig matching and production,and can provide ZJ90,ZJ70,ZJ50,ZJ40,ZJ30 drilling rig and related accessories that fully conform to API standard,including the drill,top drive,BOP blowout preventer,manifold system,compound drill pipe,drill pipe,drill collar,drilling tools,commuter transport vehicles,the lifting cranes and excavators,generator set etc.

Workover Rig 2 Workover Rig 1

ZJ50/3150D rig adopts 3 sets of CAT3512 diesel generator sets as the main power. The 600V/50Hz AC is rectified 0～750V DC by SCR cabinet to drive YZ08/YZ08A series DC motor for Drawworks, rotary table and mud pumps. Drawworks is driven by 2 sets of motors,2 sets of mud pumps are separately driven by 2 sets of motors. Rotary table is driven by 1 motor, electrical transmission system is one-two control type, AC-SCR-DC transmission. Front open-face mast, swing up substructure, hoisted by Drawworks power, main brake of Drawworks is hydraulic disc brake and the auxiliary brake is magnetic eddy current brake.

Characteristics and features

▲Adopt swing up or slingshot substructure. Substructure, mast and all equipments on the floor are installed at low position,mast and substructure are raised up at once by Drawworks power. Have advantages of dismounting convenience, quick-carrying, entire movement and installation, etc.

▲Drill arrangement meet the requirement of explosion-proof, safety, drilling engineering and equipment installation, disassembly and convenient maintenance.

▲The Drawworks, rotary table and mud pump can realize independent step less speed regulation, has provided the safeguard for optimizing drilling technology.

Specifications and parameters

Nominal drilling depth(114mmDP)	3500～5000m	Open diameter of rotary table	φ952.5mm (37.5” )
(127mmDP)	2800～4500m	Qty.× power of diesel engine	3×1080kW
Max.hook load	3150kN	Shift of Drawworks	Stepless speed regulation
Traveling system	6×7	Height of drilling floor	9m
Dia of Drill line	φ35mm	Mast type and height	K type, 45m
Qty.× power of mud pump	2×1300hp	Drawworks power	1100kW（1500hp）
Transmission type	AC-SCR-DC	mud high pressure manifold	Φ102mm（dia）×35MPa
shift of rotary table	2 shifts step less speed regulation	Effective capacity of mud tank of solid control system	≥240m³

FAQ

Q1. Why choose us ?

1. Competitive price: our company is a professional supplier of Cementing and Fracturing Equipment, Gate Valve and Wellhead Christmas Tree, Plunger Pumps and Mud Pumps, Flow line Products, Solid Control Equipment, Drilling Rigs and Work over Rigs Matching Equipment etc. We have competitive prices and best resources in advanced production line and testing equipment, designed and manufactured according to certification of API, ISO, GOST, etc.

2. Fast delivery: the delivery time of all our machines is very fast, especially the popular Plunger Pumps and Mud Pumps, Flow line Products.

3. Warranty: after sales service is very important for construction machinery. Our company provides warranty for all machinery purchased from us. During the warranty period, we will accurately confirm the damaged parts in the shortest time and send the replacement parts to the customers by DHL or air freight in the most efficient way.

Q2. How can you guaranteed quality?

On the basis of more than 40 years of manufacturing experience,more than 30 years of export experience, high quality products with competitive price, better understanding in Chinese market, High quality after-sales service, we hope to establish business relations with your company.

Q3. Can you satisfy my special requirement?

As the manufacturer, Youlong will review the special requirement and recondition it as per request (if possible).

Q4. How about your technology after-service team available?

We have postgraduated engineer and repair machines team, and worked inconstructions machine area almost 20 years. We could give you service support on line on time, or send to Machinican to support on necessary.
