Lamp control; Home Appliances
Main Specification (Tj=25℃）
| Type | Content | Value | Unit | |
| IT(RMS) | Nominal RMS on-state Current | 0.8 | A | |
| Off-state/reverse repetitive peak voltage | MAC97A6 | 400 | V | |
| VDRM/VRRM | ||||
| MAC97A8 | 600 | V | ||
| ITSM | Non-repetitive on-state surge current | 8 | A | |
| Type | Specification and conditions | value | units | |
| IT(RMS) | Nominal RMS on-state Current Tlead ≤50℃ | 0.8 | A | |
| Repetitive peak off-state | 400 | V | ||
| voltage Tj=25℃ | MAC97A6 | |||
| VDRM/VRRM | Repetitive peak reverse | 600 | V | |
| voltage Tj=25℃ | MAC97A8 | |||
| ITSM | Non-repetitive on-state surge current sine 50HZ,one cycle TC=25℃ | 9 | A | |
| I2t | Fuse current (tp=10ms) | 0.45 | A2S | |
| IGM | Gate peak current | 1 | A | |
| PGM | Gate peak power | 1 | W | |
|
PG(AV) |
Gate average power |
0.1 |
W |
|
di/dt |
Critical rate of rise of on state voltage (ITM=1 A,,IG=0.2A, d IG /dt=0.2A/μS , Tj=110℃ ) |
20 |
A/μS |
|
Tstg Tj |
Storage temperature Junction temperature |
-40--+150 -40--+110 |
℃ |

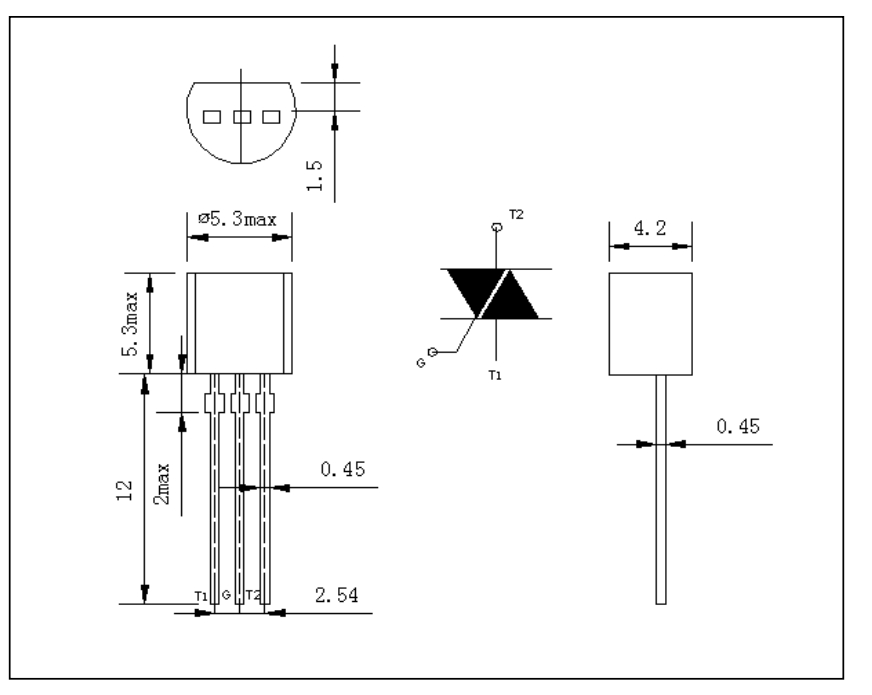

TO-92 package drawing：
