Limiting Values(Absolute Maximum Rating)
|
Item |
Symbol |
Unit |
Test Conditions |
1N53 |
||||||
|
91 |
92 |
93 |
95 |
97 |
98 |
99 |
||||
|
Repetitive Peak Reverse Voltage |
VRRM |
V |
|
50 |
100 |
200 |
400 |
600 |
800 |
1000 |
|
Maximum RMS Voltage |
V RMS |
V |
|
35 |
70 |
140 |
280 |
420 |
560 |
700 |
|
Maximum DC Blocking Voltage |
VDC |
V |
|
50 |
100 |
200 |
400 |
600 |
800 |
1000 |
|
Average Forward Current |
IF(AV) |
A |
60Hz Half-sine wave, |
1.5 |
||||||
|
Resistance load,T L=75℃ |
||||||||||
|
Surge(Non-repetitive)Forward Current |
IFSM |
A |
60Hz Half-sine wave, |
50 |
||||||
|
1 cycle,Ta=25℃ |
||||||||||
|
Junction Temperature |
TJ |
℃ |
|
-55 ~ +150 |
||||||
|
Storage Temperature |
TSTG |
℃ |
|
-55 ~ +150 |
||||||
Electrical Characteristics (T=25℃ Unless otherwise specified)
|
Item |
Symbol |
Unit |
Test Condition |
Value |
|
|
Maximum Peak Forward Voltage |
VFM |
V |
IFM =1.5A |
1.1 |
|
|
|
IRRM1 |
|
|
Ta=25℃ |
5 |
|
Maximum Peak Reverse Current |
IRRM2 |
μA |
VRM=VRRM |
Ta=100℃ |
50 |
|
Typical junction capacitance |
CJ |
pF |
Measured at 1MHz and applied reverse voltage of 4.0V D.C. |
20 |
|
|
|
RθJ-A |
|
Between junction and ambient |
50 |
|
|
Typical Thermal Resistance |
RθJ-L |
℃/W |
Between junction and Lead |
25 |
|

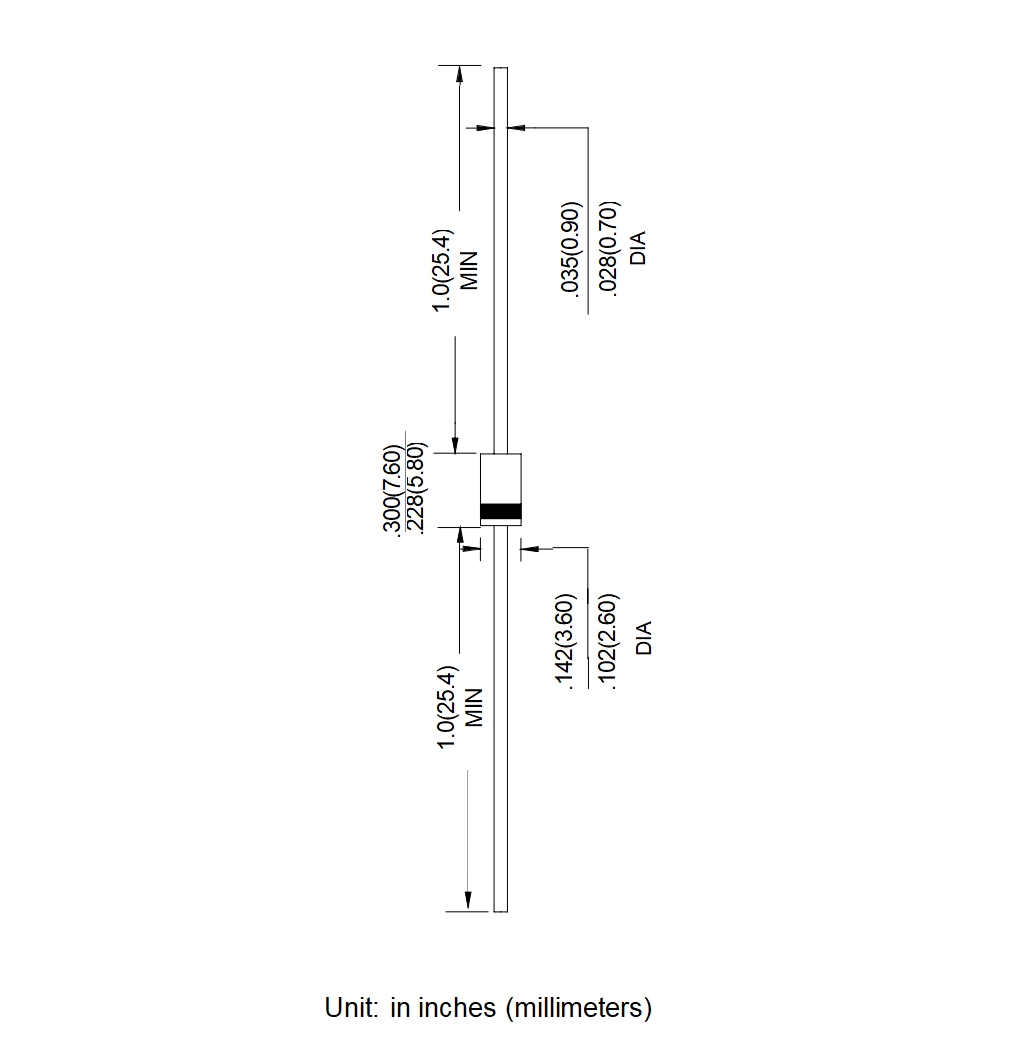

DO-15 packageoutlineDimensions
