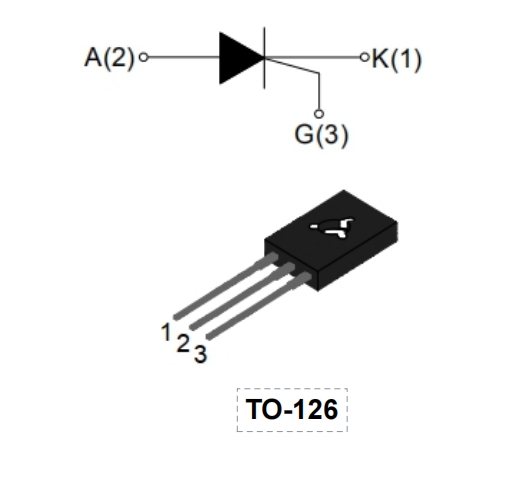

2P4M 2A Sensitive SCRs


DESCRIPTION:
The 2P4M 2A SCR series provide high dv/dt rate
with strong resistance to electromagnetic interface.
They are especially recommended for use on residual
current circuit breaker, straight hair, igniter etc.
YZPST-2P4M 10-30UA



MAIN FEATURES:

symbol

value

unit

IT(RMS)

2.0

A

IGT

≤200

μA

VDRM/VRRM

600

V

ABSOLUTE MAXIMUM RATINGS:

Parameter

Symbol

Value

Unit

Storage junction temperature range

Tstg

-40~150

Operating junction temperature range

Tj

-40~110

Repetitive peak off-state voltage (Tj=25)

VDRM

600

V

Repetitive peak reverse voltage (Tj=25)

VRRM

600

V

RMS on-state current

IT(RMS)

2

A

Non repetitive surge peak on-state current

(full cycle, F=50Hz)

ITSM

20

A

I2t value for fusing (tp=10ms)

I2t

2

A2s

Critical rate of rise of on-state current (IG=2 × IGT)

dI/dt

50

A/ μs

Peak gate current

IGM

0.2

A

Average gate power dissipation

PG(AV)

0.1

W

Peak gate power

PGM

0.5

W

ELECTRICAL CHARACTERISTICS (Tj=25℃  unless otherwise specified)

Symbol Value
Test Condition MIN TYPE MAX Unit
IGT VD=12V, RL=33Ω - 50 200 μA
VGT - 0.6 0.8 V
VGD VD=VDRM Tj=110 0.2 - - V
IH IT=50mA - - 5 mA
IL IG=1.2IGT - - 6 mA
dV/dt VD=2/3×VDRM   Tj=110 RGK=1KΩ 20 - - V/ µs

STATIC CHARACTERISTICS

Symbol Test Condition Value Unit
VTM ITM=4A   tp=380μs Tj=25 MAX 1.5 V
IDRM VD=VDRM= VRRM RGK=1KΩ Tj=25 MAX 5 µA
IRRM Tj=110 0.1 mA

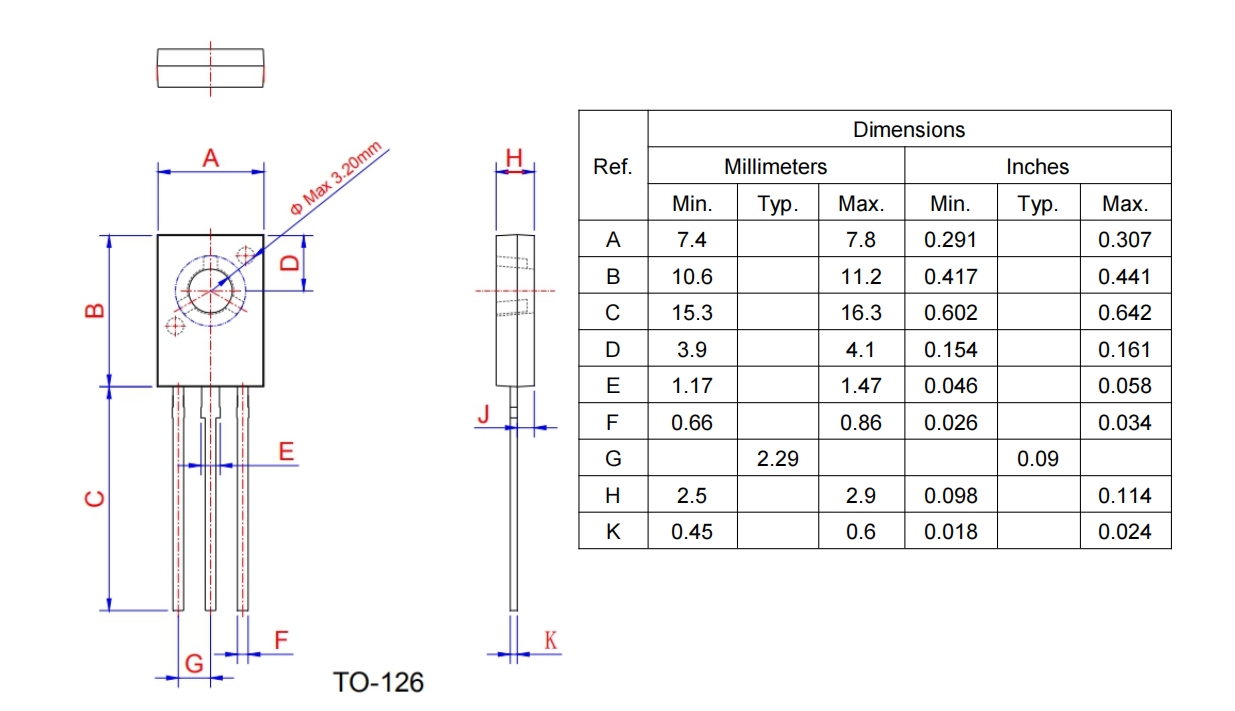

PACKAGE MECHANICAL DATA
YZPST-2P4M TO-126
