Part Number |
Package |
Marking |
M1A045170L |

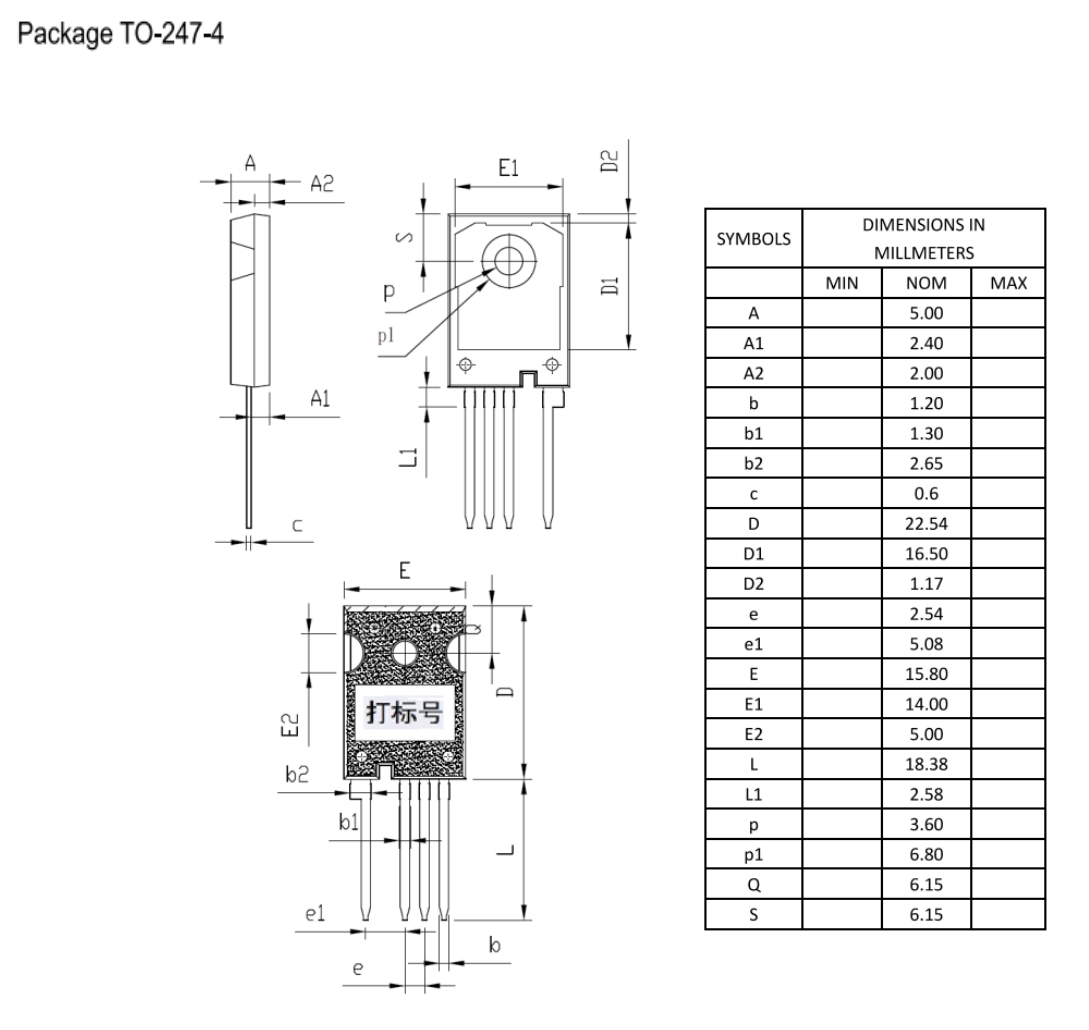

TO-247-4L |
M1A045170L |
Maximum Ratings (Tc = 25°C unless otherwise specified)
Symbol | Parameter | Value | Unit | Test Conditions | Note |
VDSmax | Drain-Source Voltage | 1700 | V | VGS = 0 V, ID = 100 μA | |
VGSmax | Gate-Source Voltage | -0.4 | V | Absolute maximum values | |
VGSop | Gate-Source Voltage | -0.25 | V | Recommended operational values | |
ID | Continuous Drain Current | 85 | A | VGS = 20 V, TC = 25˚C | |
55 | VGS = 20 V, TC = 100˚C | ||||
ID(pluse) | Pulsed Drain Current | 160 | A | Pulse width tP limited by Tjmax | |
PD | Power Dissipation | 520 | W | TC =25˚C, TJ =150℃ | |
TJ , Tstg | Operating Junction and Storage Temperature | -55 to 175 | ℃ | ||
TL | Solder Temperature | 260 | ℃ | 1.6mm (0.063 ”) from case for 10s | |
Md | Mounting Torque | 1 | Nn | M3 or 6-32 screw | |
8.8 | lbf-in |
Symbol | Parameter | Min. | Typ. | Max. | Unit | Test Conditions | Note | |
V(BR)DSS | Drain Drain-Source | 1700 | - | V | VGS = 0 V, ID = 100 μA | |||
Breakdown Voltage | ||||||||
2 | 2.6 | 4 | V | VDS = VGS, ID = 18mA | ||||
VGS(th) | Gate threshold Voltage | 1.9 | V | VDS = VGS, ID = 18mA, TJ =150°C | ||||
IDSS | Zero Gate Voltage Drain Current | 2 | 100 | μA | VDS = 1700 V, VGS = 0 V | |||
IGSS | Gate Source Leakage | 2 | uA | VGS = 20 V, VDS = 0 V | ||||
Current | ||||||||
Drain-Source | 34 | 60 | mΩ | VGS = 20 V, ID = 50 A | ||||
RDSON | On-State Resistance | 66 | VGS = 20 V, ID = 50A, TJ =150°C | |||||
gfs | Transconductance | 16 | VGS = 20 V, ID = 50A | |||||
19 | S | VGS = 20 V, ID = 50A, TJ =150°C | ||||||
C | Input Capacitance | 4078 | ||||||
oss | Output Capacitance | 167 | ||||||
rss | Reverse Capacitance | 39 | pF | VDS =1000V,TJ=25°C,f=1MHz | ||||
Eoss | Coss Stored Energy | 203 | μJ | |||||
Eon | Turn on Switching Energy | 1.9 | VDS = 1200 V, VGS = -5/20 V, ID = 50A, Rg(ext) = 2.5Ω, | |||||
Eoff | Turn off Switching Energy | 0.3 | mJ | TJ=150°C | ||||
tdon | Turn on delay time | 21 | ||||||
tr | Rise time | 46 | VDS = 1200 V, VGS = -5/20 V, ID = 50A, Rg(ext)= 2.5Ω | |||||
tdoff | Turn off delay time | 50 | ||||||
tf | Fall time | 19 | ns | |||||
Rgint | Internal Gate Resistance | 2.6 | VAC =25mV, f=1MHz | |||||
Qgs | Gate to Source Charge | 44 | VDS = 1200 V, VGS = -5/20 V, ID = 50A | |||||
Qgd | Gate to Drain Charge | 84 | ||||||
Qg | Total Gate Charge | 248 | nC |
Electrical Characteristics (Tc = 25°C unless otherwise specified)
Symbol | Parameter | Min. | Typ. | Max. | Unit | Test Conditions | Note |
VSD | Diode Forward Voltage | 6.1 | - | V | VGS = -5 V, ISD = 25 A | ||
5.2 | VGS = -5 V, ISD = 25 A,TJ =150°C | ||||||
I | Continuous Diode Forward Current | 75 | A | VGS = -5V, Tc=25°C | |||
S | |||||||
trr | Reverse Recovery Time | 126 | ns | VR= 1200 V, VGS = -5V, ID = 50A, di/dt=1400A/μS,, TJ =150°C | |||
Qrr | Reverse Recovery Charge | 1360 | nC | ||||
Irrm | Peak Reverse Recovery Current | 19 | A |
