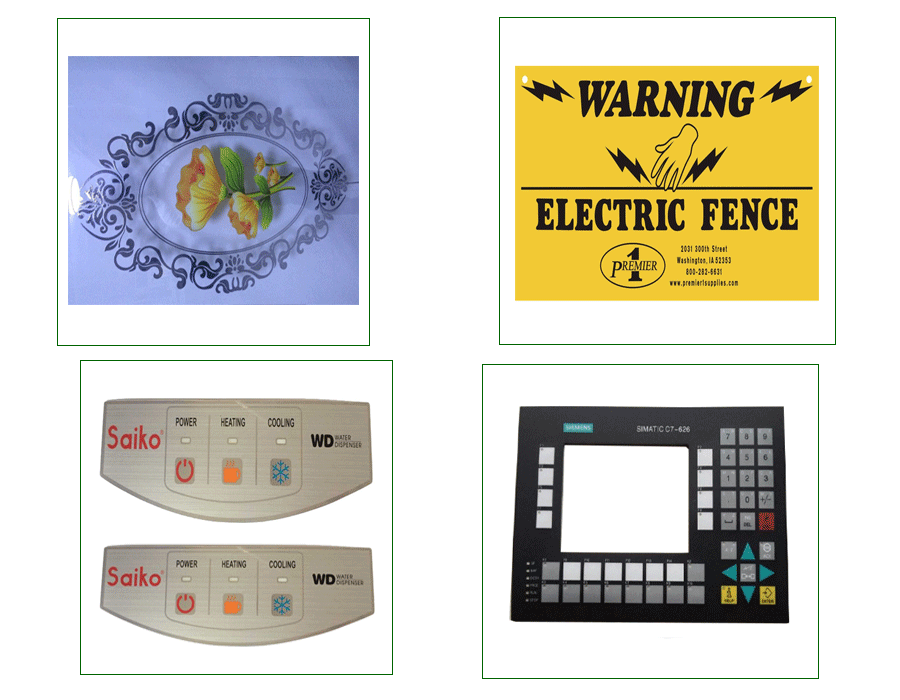

Samples

When you encounter some flat and small-sized products that require multi-color printing and UV curing, and do not have high requirements for cost control and printing speed, it is recommended that you choose a flat automatic screen printing machine with a workbench shuttle. It uses four sets of printing systems and three sets of UVLED curing systems to connect and arrange, while the workbench uses servo shuttles to move cyclically in the four sets of printing systems.
Fix the product and the jig on the workbench, and the jig will take the product into the first color screen printing, the first UV curing, the second color screen printing, and the second color UV curing until the four colors are completed. The shuttle then drives the gripper and product back to the starting position for the second product.
This automatic screen printing machine is low in cost and slow in printing speed, but has high overprint accuracy. It is a good choice for small-sized products that require multi-color screen printing.

265

Machine description

SA4-2030PTSSR Automatic 4 colors Flat screen printing machine with servo shuttle table //Structure
Working table	Shuttle working table, Size: 200*300mm
Actions	Up-down of screen plate
To be printed	Plain objects
Squeegee stroke	Adjust the Limited switch
Squeegee and screen plate control	High precision guide shaft
SA4-2030PTSSR Automatic 4 colors Flat screen printer with servo shuttle table //Usage and characters
Application	The machine panel, plastic parts, Paper, furniture industry, glass industry, circuit board industry, film, wooden case
SA4-2030PTSSR full automatic 4 colors Flat screen printing Machine with shuttle table//Parameters
Technical parameters	Max printing thickness: 260 mm； Air consumption: 90Litre/Min； Dimension of working table: 200×300mm； Max printing areas: 150×250mm; Max printing speed: 1100Pcs/H; Max frame dimension: 350×550mm; Compress air: 5-7 bar; Stroke of cylinder up and down:160mm； Stroke of Squeegee: 200mm.
Works supply	110V-220V Power supply； 5-7Barcompress air；
Package parameters	Outer dimension:1.97×1.45×1.65m； Net weight: 490kg；
Package parameters	Package dimension:1.47×1.49×1.70m; Gross weight: 583kg; CBM: 3.7235
H.S.CODE	8443192190
Certificate	CE

Machine structure

Servo shuttle table to make precision overprint .
Screen Forme up and down movement of contact with the table, suitable for hand-placed and remove the product;
Distance of the screen and table to the flexibility to adjust for different heights of the product silk screen;
Screen forme Clamping device free to adjust to fit different sizes of screen;
Screen Plate clamping device can be adjusted Front and back, left and right, up and down, the angle of the fine-tuning in order to fine-tune the exact location of the pattern in the product above;
Stroke of the scraper can be flexibly adjusted the pattern to suit different size;
Squeegee pressure can be individually adjusted to fit any high-precision screen printing;
PLC program control operations;
Hight accurate overprint;
Automatic Robot downloading system.
