TRIAC BT131 1-3MA>600V TO92CU

10 month ago
37 0
Product details

BT131 Series 1A Triacs SOT-223



DESCRIPTION:

With low holding and latching current, BT131 Series triacs are especially recommended for use on middle and small resistance type power load.

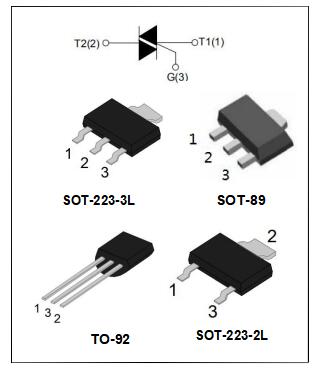

YZPST-BT131-1
MAIN FEATURES:

symbol

value

unit

IT(RMS)

1

A

VDRM/VRRM

600/800

V

VTM

≤1.5

V

ABSOLUTE MAXIMUM RATINGS:

Parameter

Symbol

Value

Unit

Storage junction temperature range

Tstg

-40~150

Operating junction temperature range

Tj

-40~125

Repetitive peak off-state voltage (Tj=25)

VDRM

600/800

V

Repetitive peak reverse voltage (Tj=25)

VRRM

600/800

V

RMS on-state current

IT(RMS)

1

A

Non repetitive surge peak on-state current (full cycle, F=50Hz)



ITSM



16



A

I2t value for fusing (tp=10ms)

I2t

1.28

A2s

Critical rate of rise of on-state current (IG=2×IGT)



dI/dt

--

50



A/μs

10

Peak gate current

IGM

2

A

Average gate power dissipation

PG(AV)

0.5

W

Peak gate power

PGM

5

W

ELECTRICAL CHARACTERISTICS (Tj=25℃ unless otherwise specified)





Parameter



Test Condition



Quadrant



Value



Unit

T

D



IGT





VD=12V, RL=33Ω

Ⅰ-Ⅱ-Ⅲ





MAX

3

5

mA

5

10



VGT

Ⅰ-Ⅱ-Ⅲ-Ⅳ

1.3

V

VGD

VD=VDRM

Ⅰ-Ⅱ-Ⅲ-Ⅳ

MIN

0.2

V

IH

IT=100mA

MAX

5

7

mA



IL



IG=1.2IGT

Ⅰ-Ⅲ-Ⅳ



MAX

5

5



mA

10

20

dV/dt

VD=0.66×VDRM Tj=125℃ Gate open

MIN

20

50

V/µs



STATIC CHARACTERISTICS

Symbol

Test Condition

Value

Unit

VTM

ITM=1.4A tp=380μs

Tj=25

MAX

1.5

V

IDRM IRRM



VDRM= VRRM

Tj=25



MAX

5

µA

Tj=125

0.5

mA

THERMAL RESISTANCES

Symbol

Test Condition

Value

Unit



Rth(j-c)



junction to case(AC)

TO-92

60

/W

SOT-89/SOT-223 SOT-223-2L

31

/W

PACKAGE MECHANICAL DATA

YZPST-BT131-2325
