430nm Deep Blue LED SMD;

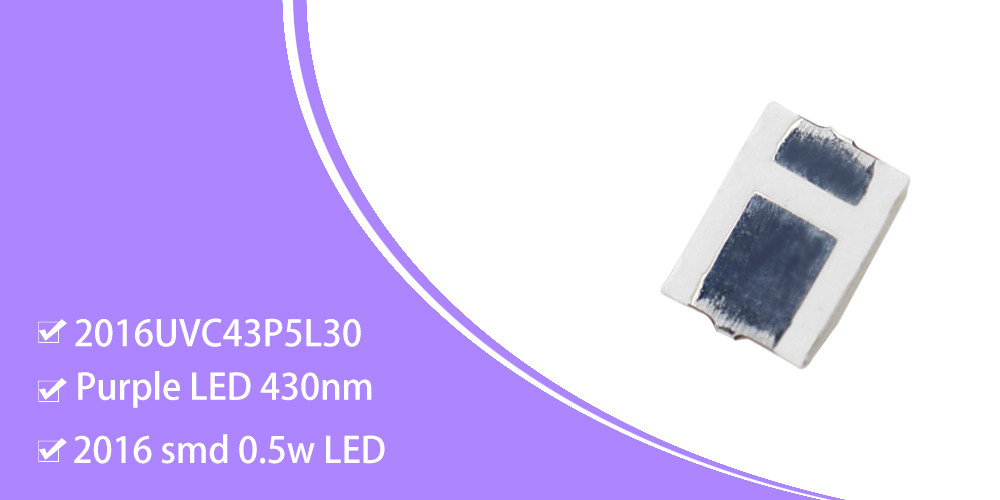

As we know, 2016 SMD LED can be kinds of color of LED. Which depends on what kinds of LED chip were packaged inside the SMD LED case. 2016UVC43P5L30 is a 0.5W deep blue SMD LED that can handle 150mA operation current and provide 5lm brightness when you light it up with 150mA current. Small size of 2016 SMD LED are perfect for the LED strip. With the super bright color, this LED will be easy to zing your project. 150mA are the suggested maximum current, but that doesn't means the SMD LED have to work in 150mA. This LED can work even the current is 20mA or 60mA. Such small operation current will be better for the lifespan of SMD LED.
Electrical Parameters:
|
Parameter |
Symbol |
Min |
Type |
Max |
Unit |
Test Condition |
|
Forward Voltage |
VF |
2.8 |
- |
3.4 |
V |
IF=150mA |
|
Luminous Flux |
IV |
3 |
- |
5 |
lm |
IF=150mA |
|
Dominant Wavelength |
DW |
425 430 435 |
nm |
IF=150mA |
||
|
Viewing Half Angle |
2θ1/2 |
|
120 |
|
deg |
IF=150mA |
|
Reverse Current |
IR |
|
|
5 |
uA |
VR=5V |
*Luminous intensity is measured by ZWL600.
*λD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

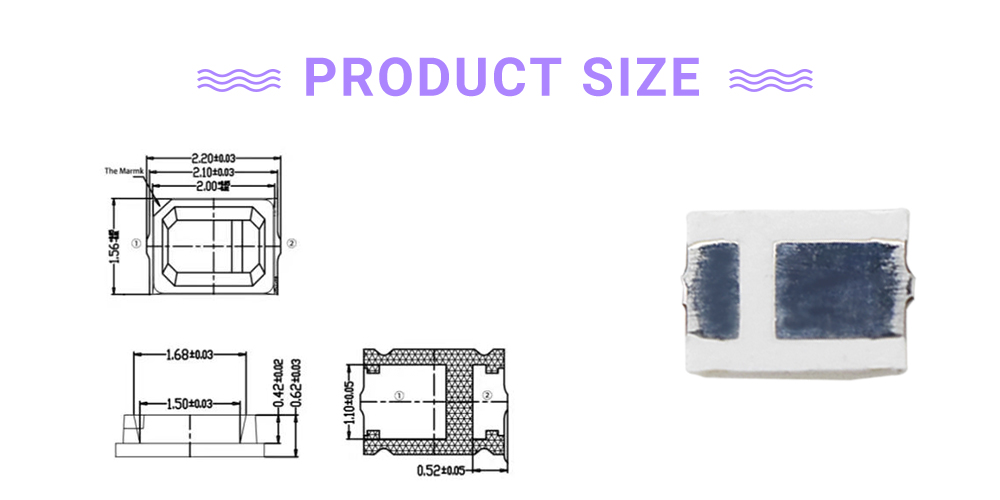

Demension of 2016 SMD LED;
*UV LED, Red SMD LED, Yellow LED, Blue SMD LED are all available in this 2016 SMD LED size.*
Product Details:
99.99% purity gold wire;
Silver plated LED frame;
Famous branded chips;
High quality epoxy;
