Same as those 810nm LED, 820nm infrared LED are also widely used in beauty industry and some medical applications. As we know, there have two type of encapsulation: SMD LED (surface mount device and DIP (dual in line package). The later one, DIP LED lamps, these package type are available for kinds of viewing angle, such 45 degree, 60 degree, 90 degree ect. For the picture as follow, we package this 820nm dare die with 5mm through-hole LED case and clear lens 30 degree viewing angle. Commonly, the more wider viewing angle you got, the more bigger radiation area you can got. But with more narrow angle, you will got more longer radiation when this infrared LED is working. So this IR LED will got a longer radiation distance than the 45 degree, 60 degree and 90 degree viewing angle~ Do you need some 820nm LED emitter for your project? Contact us for more detail about it~

5mm IR led

- Size: 5.0*H8.7mm

- Chip Number:1 chip

- Color: 820nm LED

- Type: water clear

- Chip brand: Tyntek

- Different color are available

- Different wavelength are available

- Warranty: 5 Years

- RoHS, REACH, EN62471

- Uniform light output

- Long life-solid state reliability

- Low Power consumption

-Anti UV epoxy resin package

-High temperature resistance

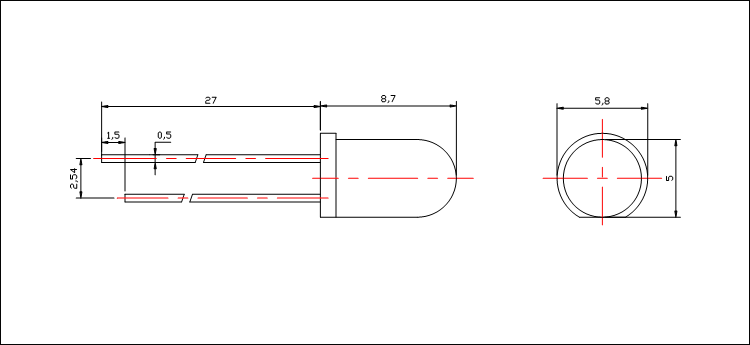

- Size of 5mm Through-hole LED -

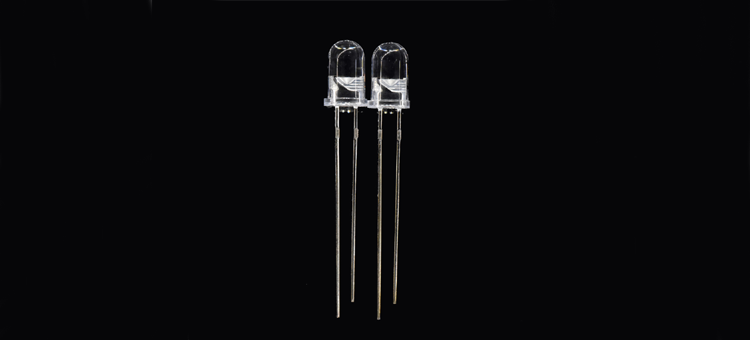

820nm Wavelength LED 5mm LED

- Through-hole LED Radiant -

820nm IR LED

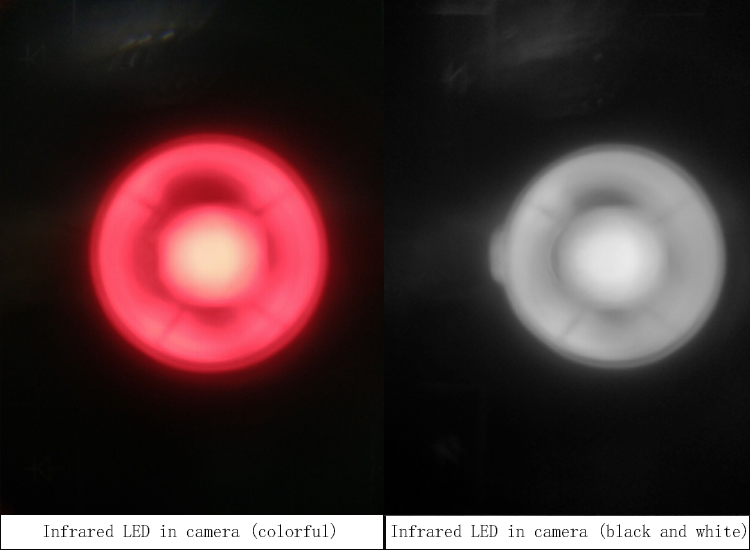

*Colors in the photo was took by camera, please take actual emitting color as standard.

- Through-hole LED Parameter -

Parameter	Symbol	Rating
Power Dissipation	Pd	190mw
Pulse Forward Current	IFP	1000mA
Forward Current	IF	150mA
Reverse Voltage	VR	5V
Junction Temperature	Tj	115°C
Operating Tempertature	Topr	-40 - +80°C
Storage Tempertature	Tstg	-40 - +100°C
Soldering Temperature	Tsol	260°C
Electro-Static-Discharge(HBM)	ESD	2000v
Warranty	Time	5Years
Antistatic bag	Piece	1000Bag
*Pulse Forward Current Condition:Duty 1% and Pulse Width=10us.
*Soldering Condition:Soldering condition must be completed with 3 seconds at 260°C

Parameter	Symbol	Min	Typ	Max	Unit	Test Condition
Radiant Intensity	Ee	60		90	mW/sr	IF=20mA
		140		190		IF=50mA
		320		360		IF=100mA
Viewing Angle	2q1/2		30		deg	IF=100mA
Peak Wavelength	λp	820	825	830	nm	IF=100mA
Spectral Bandwidth	Dl		50		nm	IF=100mA
Forward Voltage	VF	1.3	1.4	1.6	V	IF=20mA
		1.5	1.6	1.8		IF=50mA
		1.5	1.6	1.9		IF=100mA
Reverse Current	IR			5	uA	VR=5V
*Luminous Intensity is measured by ZWL600.
*2q1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
*lD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

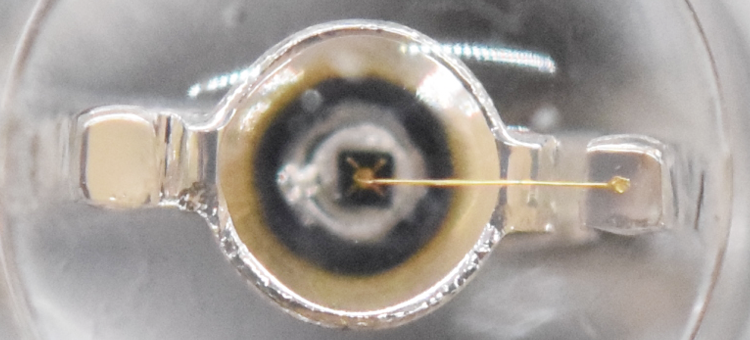

- Golden wire connection -

* In order to keep every one of LED's long lifespan, BestLED factory use high pure gold wire for inside circuit connection

- LED Packing -

5mm led

*We can pack this LED with any number of packages and taped or bend the LED pins as your requirement.
