- 2835 SMD LED -

2835FIRC-82L/14I100

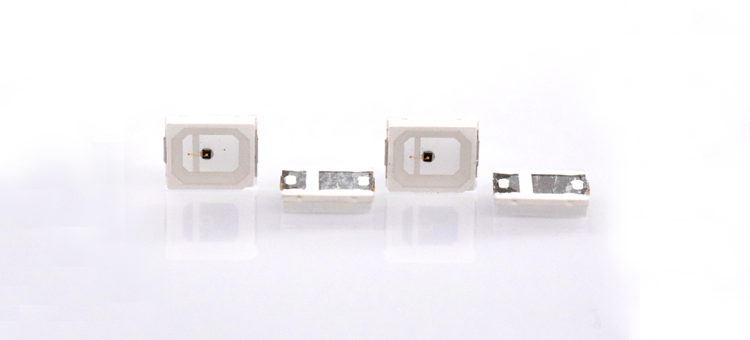

These 820nm LED bare die can be packaged with different SMD LED case or through-hole LED as your requirement. 820nm LED are widely used in infrared light source, LED light source, ring light source, LED spotlight, LED searchlight or other medical industry. 2835FIRC-82L/14I100 is a 820nm infrared LED that packaged by 2835 SMD LED surface mount device. This 2835 SMD LED case have a heat stink on the bottom of the LED so that when this infrared LED is working, this SMD LED case will dispatch the extra heat on time so that it can protect this IR LED from the heat problem. Shenzhen Best LED Opto-electronic Co.,Ltd offers kinds of high quality infrared LED with different wavelength, shapes and side ect. Contact us if you need some infrared LED for your project.

820nm LED 2835 smd led

- Size: 3.5*2.8*0.8mm

- Chip Number: 1 chip

- Color: 820nm LED

- Type: Surface mount device

- Chip brand: customize

- Nick mark: Anode

- Different color are available

- Different wavelength are available

- Warranty: 5 Years

- RoHS, REACH, EN62471

- Uniform light output

- Long life-solid state reliability

- Low Power consumption

-Anti UV epoxy resin package

-High temperature resistance

-Dimension Parameters -

Customized 820nm IR LED

These SMD LED case are also available for IR LED, UV LED, Blue SMD LED, Red SMD LED, Amber LED ect.

- Emitting Color -

*Colors in the photo was took by camera, please take actual emitting color as standard.

- Electrical Parameters -

Absolute Maximum Ratings At Ta=25℃

Parameter	Symbol	Rating
Power Dissipation	Pd	230mW
Pulse Forward Current	IFP	350mA
Forward Current	IF	100mA
Reverse Voltage	VR	5V
Junction Temperature	Tj	115°C
Operating Tempertature	Topr	-40 - +80°C
Storage Tempertature	Tstg	-40 - +100°C
Soldering Temperature	Tsol	260°C
Electro-Static-Discharge(HBM)	ESD	2000v
Warranty	Time	5Years
Antistatic bag	Piece	4000Back
*Pulse Forward Current Condition:Duty 1% and Pulse Width=10us.
*Soldering Condition:Soldering condition must be completed with 3 seconds at 260°C

Optical and Electrical Characteristics( Tc=25℃)

Parameter	Symbol	Min	Typ	Max	Unit	Test Condition
Forward Voltage	VF	1.7		2.4	V	IF=100mA
Pulse Forward Voltage	VF		2.8		V	IFP=350mA
Radiant Intensity	IE	35		55	mw/sr	IF=100mA
Peak Wavelength	λP	815	820	825	nm	IF=100mA
Total Radiated Power	PO		4.6		mw	IF=100mA
Half Width	Dl		50		nm	IF=100mA
Viewing Half Angle	2q1/2		±60		deg	IF=100mA
Reverse Current	IR			5	uA	VR=5V
Rise Time	Tr		25		ns	IF=100mA
Fall Time	Tf		13		ns	IF=100mA
*Luminous Intensity is measured by ZWL600.
*q1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
*lD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

- 820nm LED -

- Golden Wire Connection -

* In order to keep every one of LED's long lifespan, BestLED factory use high pure gold wire for inside circuit connection

- Packing -

*We package it with vacuum packing after tape it as a reel

- Application -
