880nm IR LED with 3528 SMD LED Package

8 month ago

18 0

Shenzhen Best LED Opto-electronic Co.,Ltd / BESTSMD CO LIMITED(HK)

 8 year year

Product details

- 2835 SMD LED -

2835IRC-88L/12I60

2835 SMD LED case are not only for 850nm LED or 940nm LED, but also available other wavelength LED from 365nm to 1550nm. As we know, different wavelength will have different application such as, 520nm and 630nm are widely used for LED lighting project and some LED toy ect, UV LED are widely for Mosquito trap lamp or currency detector ect, for infrared LED, 940nm and 850nm are widely used in night vision camera. But for other wavelength LED, for instance, 900nm LED, 880nm LED, 1550nm LED, 730nm LED or 780nm LED, 660nm LED are more widely used for some medical and beauty apparatus and instruments or for some medical testing instrument ect. 880nm LED are perfect for deeper wound healing ect. Do you need some infrared LED for your project? Contact us for more detail.

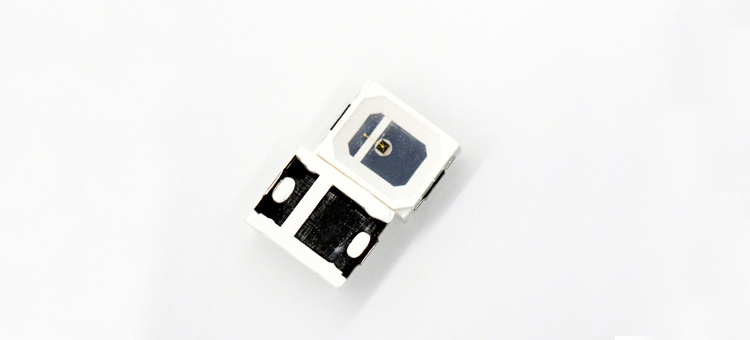

880nm Emitting Diode - 2835 SMD LED

- Size: 3.5*2.8*0.8mm

- Chip Number: 1 chip

- Wavelength: 880nm LED

- Type: Surface mount device

- Chip brand: Tyntek

- Nick mark: Anode

- Different color are available

- Different wavelength are available

- Warranty: 5 Years

- RoHS, REACH, EN62471

- Uniform light output

- Long life-solid state reliability

- Low Power consumption

-Anti UV epoxy resin package

-High temperature resistance

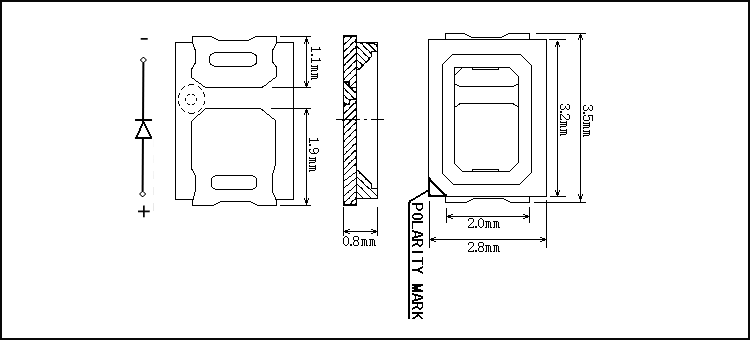

-Dimension Parameters -

2835 smd 880nm led

These SMD LED case are also available for IR LED, UV LED, Blue SMD LED, Red SMD LED, Amber LED ect.

- Emitting Color -

*Colors in the photo was took by camera, please take actual emitting color as standard.

- Electrical Parameters -

Absolute Maximum Ratings At Ta=25℃

Parameter	Symbol	Rating
Power Dissipation	Pd	120mW
Pulse Forward Current	IFP	350mA
Forward Current	IF	60mA
Reverse Voltage	VR	5V
Junction Temperature	Tj	115°C
Operating Tempertature	Topr	-40 - +80°C
Storage Tempertature	Tstg	-40 - +100°C
Soldering Temperature	Tsol	260°C
Electro-Static-Discharge(HBM)	ESD	2000v
Warranty	Time	5Years
Antistatic bag	Piece	4000Back
*Pulse Forward Current Condition:Duty 1% and Pulse Width=10us.
*Soldering Condition:Soldering condition must be completed with 3 seconds at 260°C

Optical and Electrical Characteristics( Tc=25℃)

Parameter	Symbol	Min	Typ	Max	Unit	Test Condition
Forward Voltage	VF	1.4		2.0	V	IF=50mA
Pulse Forward Voltage	VF		2.6		V	IFP=350mA
Radiant Intensity	IE	7		12	mw/sr	IF=50mA
Peak Wavelength	λP	870	880	890	nm	IF=50mA
Total Radiated Power	PO		3.0		mw	IF=50mA
Half Width	Dl		50		nm	IF=50mA
Viewing Half Angle	2q1/2		±60		deg	IF=50mA
Reverse Current	IR			5	uA	VR=5V
Rise Time	Tr		25		ns	IF=50mA
Fall Time	Tf		13		ns	IF=50mA
*Luminous Intensity is measured by ZWL600.
*q1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
*lD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

- 880nm LED -

- Golden Wire Connection -

* In order to keep every one of LED's long lifespan, BestLED factory use high pure gold wire for inside circuit connection

- Packing -

*We package it with vacuum packing after tape it as a reel

- Application -

- Related LED -

- Production -

- Use -

SMD LED Use of attention
