Product details

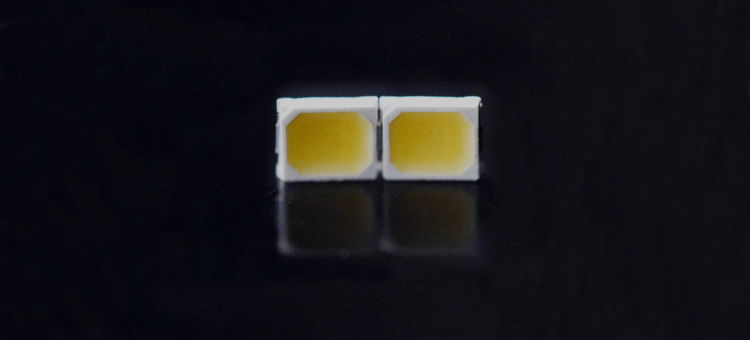

- 2835 SMD LED -

2835NW-40K30L3W

2835NW-40K30L3W is a phosphor converted white SMD LED. We mixed the phosphor with the epoxy for the LED lens. That's why you can see there have a yellow color on the top of the white LED. These 2835NW-40K30L3W is a 4000K Natural White 2835 LED, then people might confused, what is the 4000K? What's that mean and how we can produce this different color of white LED? "K" (Kelvin) can as a symbol for color temperature in LED industry. normally, white LED can be like 1800K, 2500K, 3000K, 3500K, 4000K, 5000K, 6000K or even 10000K or 20000K. With the number goes large, the color of the white LED will be more bluish. And with the number go down, the color will be more yellowish. Blue always can make people feel cool and yellow looks warm, that why some people can also name the white LED as warm white LED and cool white LED. Do you need some white LED for your project? Contact us for more detail about it~

2835 smd led 4000K White LED 0.2W

- Size: 3.5*2.8*0.8mm

- Chip Number: 1 chip

- Color: natural led

- Type: Surface mount device

- Chip brand: epistar

- Different color are available

- Different wavelength are available

- Warranty: 5 Years

- RoHS, REACH, EN62471

- Uniform light output

- Long life-solid state reliability

- Low Power consumption

-Anti UV epoxy resin package

-High temperature resistance

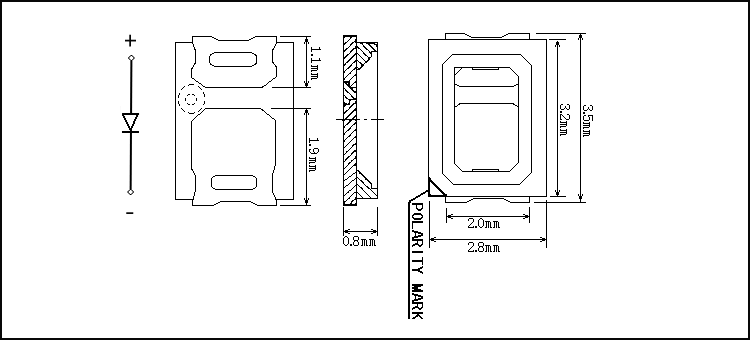

-Dimension Parameters -

SMD 2835 4000K LED

These SMD LED case are also available for IR LED, UV LED, Blue SMD LED, Red SMD LED, Amber LED ect.

- Emitting Color -

*Colors in the photo was took by camera, please take actual emitting color as standard.

- Electrical Parameters -

Absolute Maximum Ratings At Ta=25℃

Parameter	Symbol	Rating
Power Dissipation	Pd	200mW
Pulse Forward Current	IFP	200mA
Forward Current	IF	60mA
Reverse Voltage	VR	5V
Junction Temperature	Tj	115°C
Operating Temperature	Topr	-40 - +80°C
Storage Temperature	Tstg	-40 - +100°C
Soldering Temperature	Tsol	260°C
Electro-Static-Discharge(HBM)	ESD	1000v
Warranty	Time	5 Years
Antistatic bag	Piece	4000 Bag
*Pulse Forward Current Condition:Duty 1% and Pulse Width=10us.
*Soldering Condition:Soldering condition must be completed with 3 seconds at 260°C

Optical and Electrical Characteristics( Tc=25℃)

Parameter

Symbol

Min

Typ

Max

Unit

Test Condition

Forward Voltage

VF

3.0

3.4

V

IF=60mA

Luminous Flux

Φ

28

30
lm

IF=60mA

Color Temperature

TC

3500

4000

k

IF=60mA

4000

4500

Color Rendering Index

Ra

80

IF=60mA

CIE 1931 Coordinate

XY

X:0.38

Y:0.38

IF=60mA

Half Width

Dl

20

nm

IF=60mA

Viewing Half Angle

2q1/2

±60

deg

IF=60mA

Reverse Current

IR

10

uA

VR=5V

Rise Time

Tr

25

ns

IF=60mA

Fall Time

Tf

13

ns

IF=60mA

*Luminous Intensity is measured by ZWL600.

*q1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.

*lD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

- Golden Wire Connection -

* In order to keep every one of LED's long lifespan, BestLED factory use high pure gold wire for inside circuit connection

- Packing -

*We package it with vacuum packing after tape it as a reel

- Application -

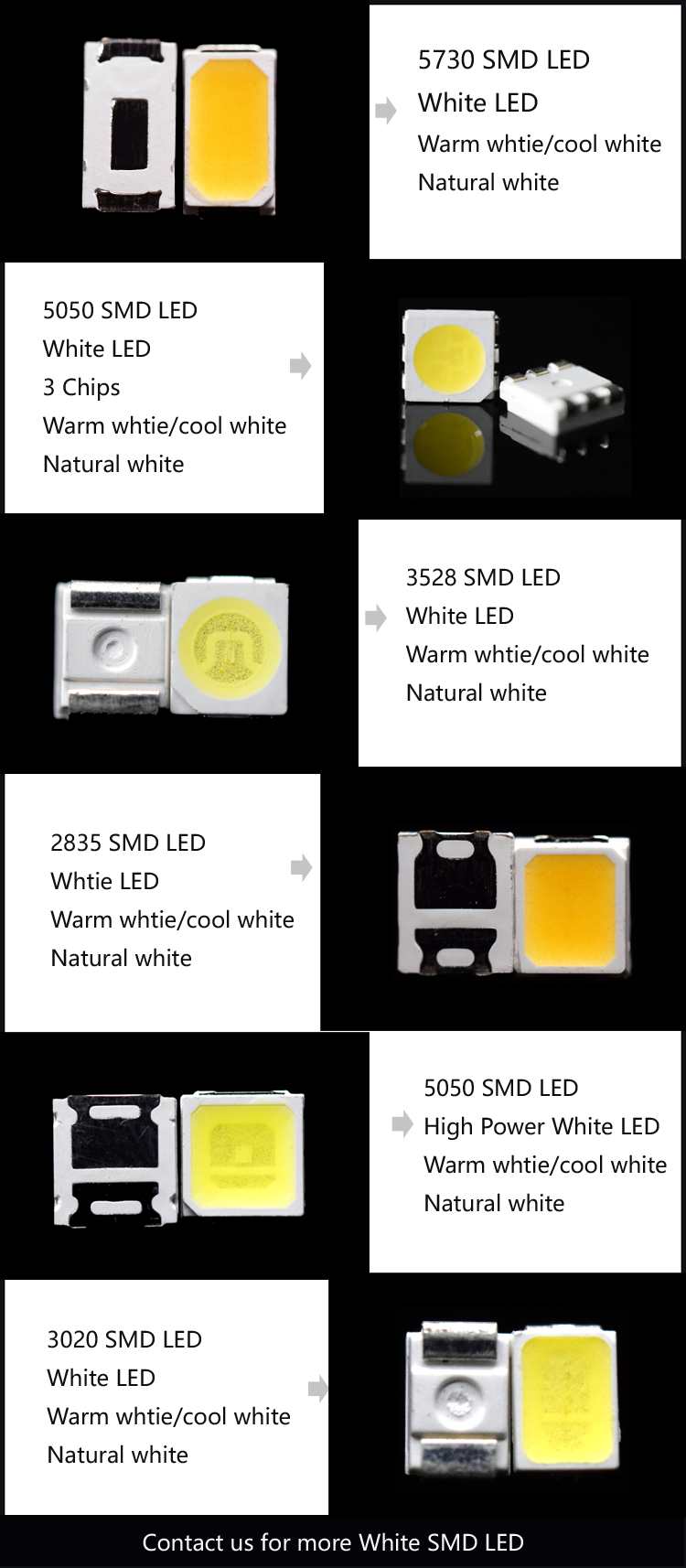

- Related White SMT LED -

- Production -

- Use -

SMD LED Use of attention
