Annual Production: 40, 000, 000PCS/Year
Material: polypropylene (V2)
Parameters
| Item No. | P03-100 | ||
| Electrical Data | |||
| IEC/EN | |||
| Rated Voltage (V) | 450 | ||
| Rated Current (A) | 24 | ||
| Ambient Temperature | Polypropylene | T90 | |
| Connection Data | |||
| IEC/EN | |||
|
Installation side
(A holes)
|
Lighting side
(B holes)
|
||
| Cross Section | Solid conductor | 0.75-2.5mm² | 0.5-2.5mm² |
| Stranded conductor | - | 0.5-2.5mm² | |
| Flexible conductor | - | 0.5-2.5mm² | |
| Strip length (mm) | 10 | ||
| Means of connection | push in | ||
| Rewirable | X | √ | |
| Number of terminals | single | ||
| Number of connection points | 1 | 1 | |
| Materials | |||
| Insulation Materials | Designation | Polypropylene | |
| Flammability class | UL 94V-2 | ||
| Packing Quantity (pcs/carton) | |||
| 4000 | |||

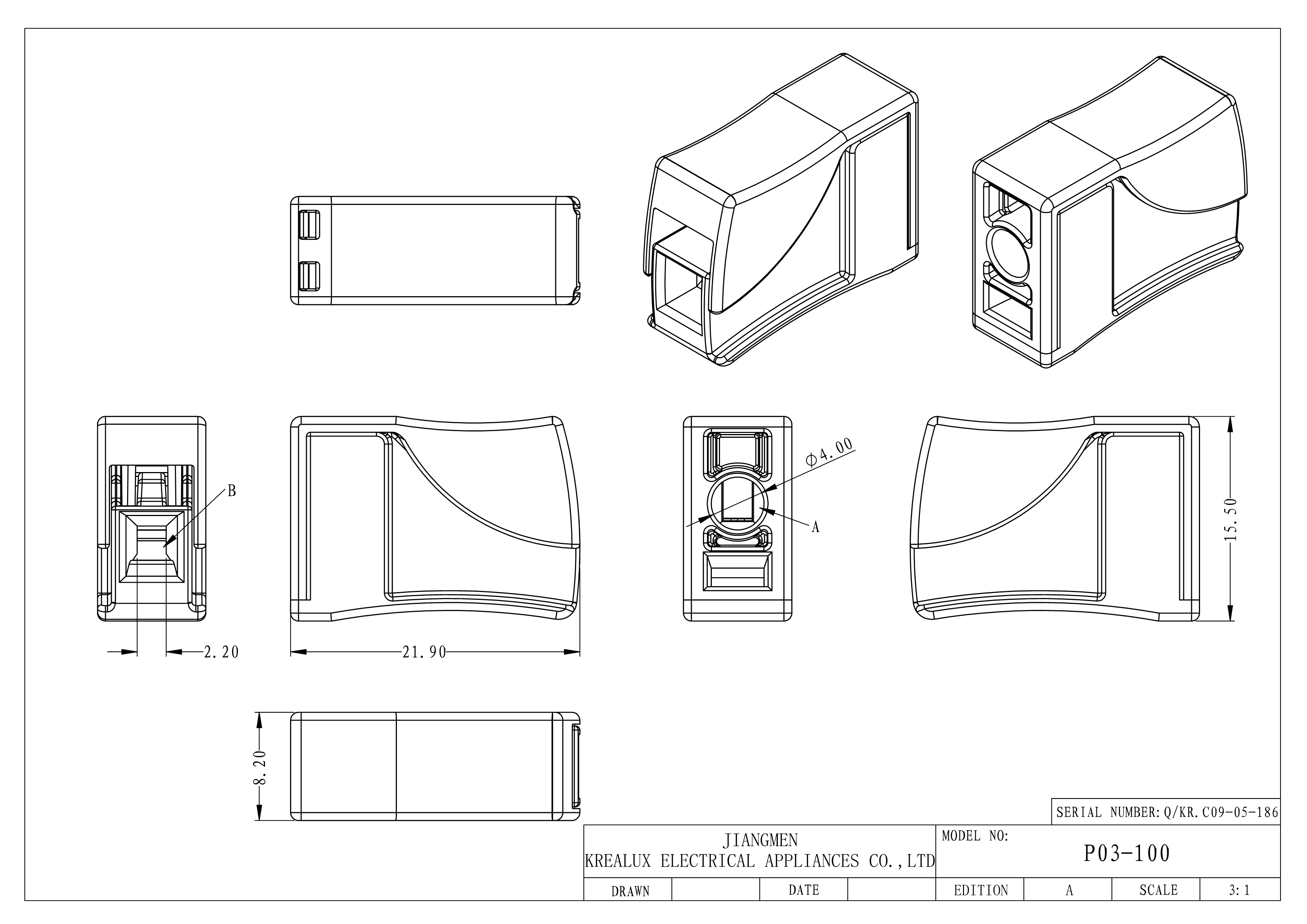

Drawing
