The Pouch Cell is a kind of polymer battery that has a layer of aluminum plastic film on the outer bread of liquid or semi-solid lithium-ion, it is not a metal hard case. So, compared with ordinary square batteries, the weight can be lighter, and it can be easily made into different sizes and shapes.

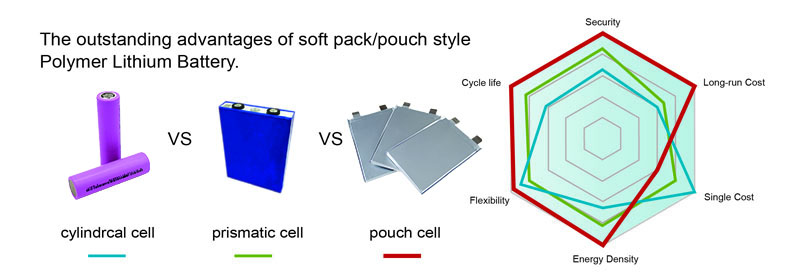

The advantages of pouch cell batteries are higher energy density with the same weight, higher discharge rate, more safety performance, and lower internal resistance. However, its more difficult to produce, and the technical requirements for the factory will be higher.
The pouch cell lithium battery often used in racing motorcycles, drones, RC racing cars, jump starters, and any applications that require magnification, explosive power, and instant powerful output.
ZTTEK 3.7V 10Ah 15Ah 20Ah 24Ah 26Ah 28Ah LMO/NCM/NCA/LFP Pouch Lithium ion Polymer Solar
Open Battery Cell.
|
Items:
|
Specifications:
|
Items:
|
Specifications:
|
|
Material system
|
LMO/NCM/NCA/LFP
|
Standard discharging method
|
0.5C (constant current discharge to 2.75V )
|
|
Charge cut-off voltage
|
4.20V
|
Max Continuous Charge Current
|
0.5C （charging temperature 0℃~45℃）
|
|
Nominal cut-off voltage
|
3.7V
|
Max Continuous Discharge Current
|
1.0C（continuous current , working temperature -20-55℃）
|
|
Discharge cut-off voltage
|
2.75V
|
Operating temperature
|
Charging ： 0℃~45℃
Discharging ： -20℃~55℃
|
|
Delivery voltage
|
3.80-3.90V
|
Cell Weight
|
Approx ：425.0±15.0g
|
|
Rated Capacity
|
20.0Ah @ 0.5C Discharge
|
Cell Internal Impedance
|
≤ 3.0mΩ
Internal resistance measured at AC 1KHZ after 40% charge
|
|
Standard voltage decline
|
≤0.05mV/h (after 6 days aging at natural temperature)
|
||
|

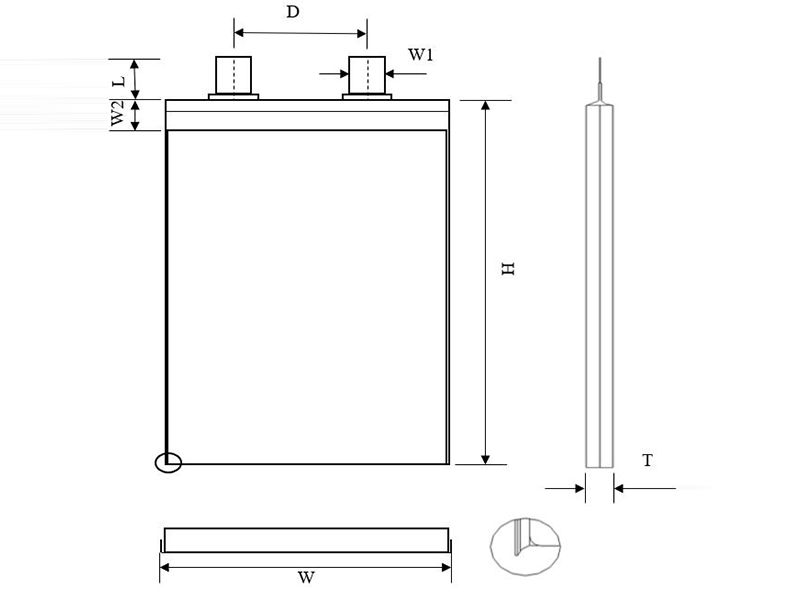

Item:
|
Code:
|
Specification(mm):
|
Remark:
|
|
Thickness
|
T
|
10.2±0.2
|
|
|
Width
|
W
|
115.5+0.5
-1.0 |
|
|
Height
|
H
|
164.5+0.5
-2.0 |
Without Tab-Lead
|
|
Tab-Lead Length
|
L
|
20±1
|
With Tab-Lead
|
|
Tab-Lead Width
|
W1
|
20±0.1
|
|
|
Tab-Lead Distance
|
D
|
58±1.5
|
|
|
Top Seal Width
|
W2
|
12±0.5
|
Reference
|
