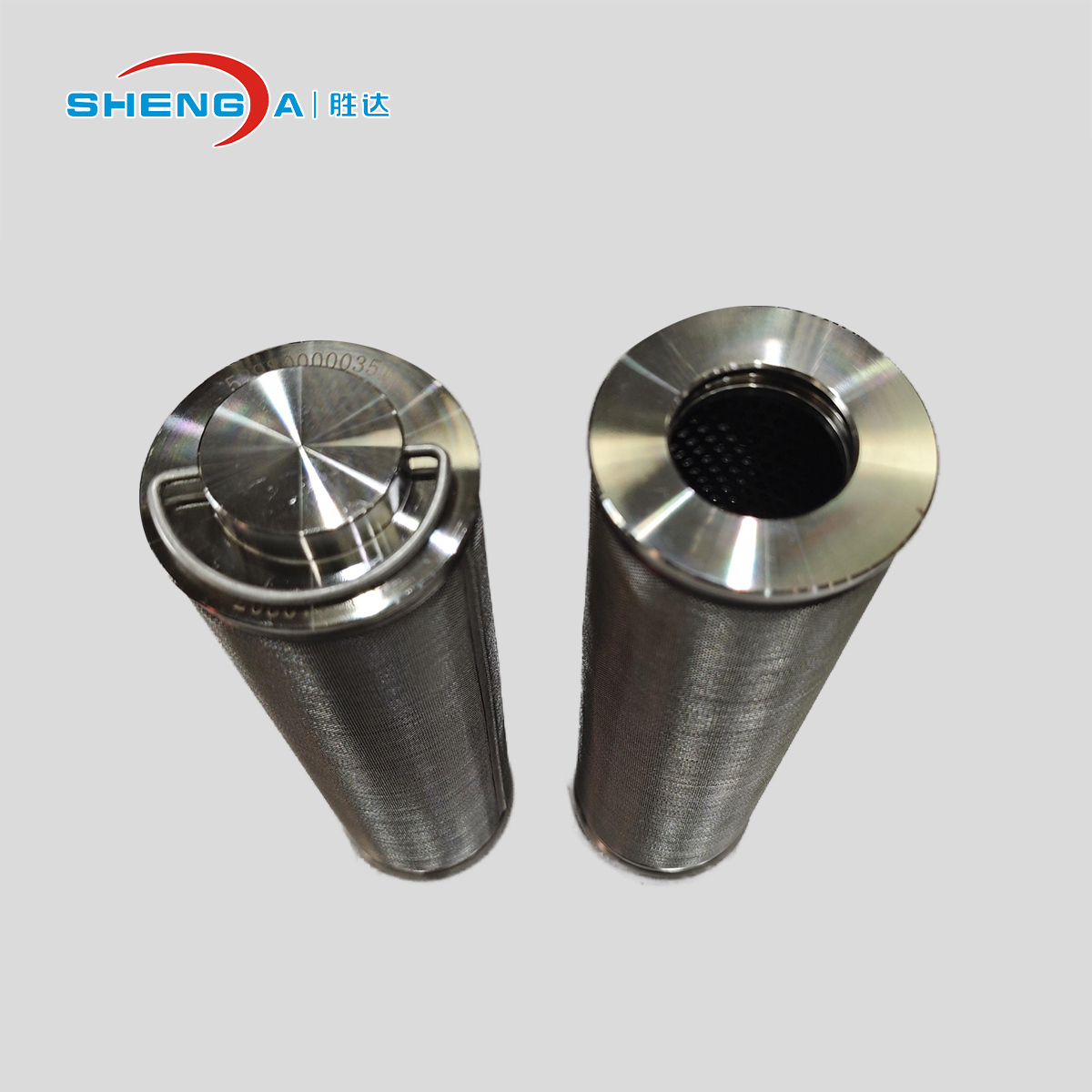

Sea Water Basket Filter Element
I. Introduction
Sea water filter element is mostly used in the filtration of seawater and liquid under the similar working condition. Considering to the complicate and corrosive working condition, the filter material is Monel 400 (nickel base alloy) for its good corrosion resistance and chemical stability. Its application greatly improves the service life of filter element in seawater filtration.
II. Applicable code
Contour welding stainless steel pipe (sy5182-87)
III. Common materials
1321,316L,904L, duplex stainless steel 2205/2507. Monel 400, Titanium,ect.
IV. Working Principle

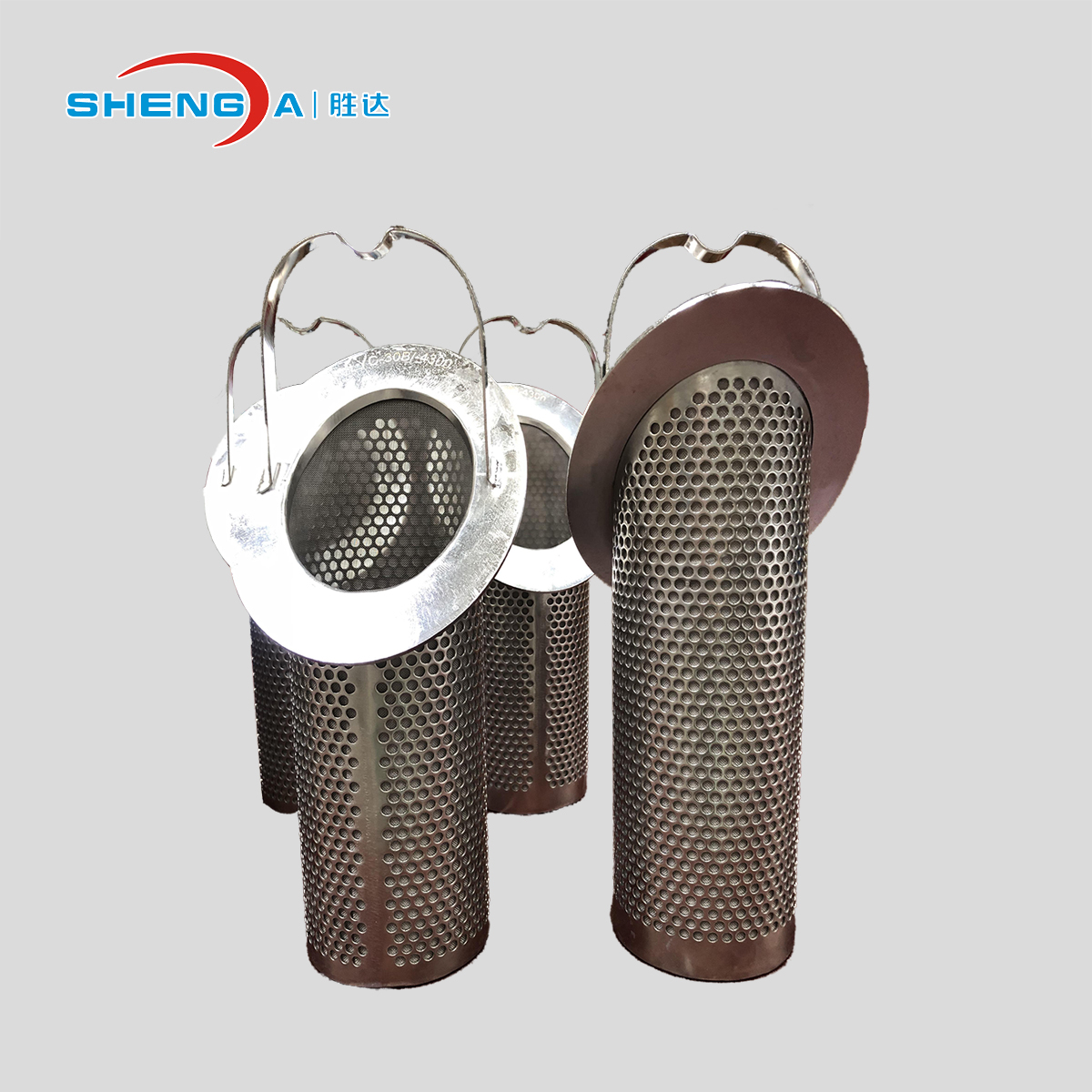

The working principle of a basket filter is relatively simple. When fluid passes through the filter cylinder with a certain mesh, solid impurities are blocked within the filter basket, while clean filtrate exits the filter through the outlet. This effectively removes impurities from the fluid and ensures the normal operation of equipment.
V. Advantages
1. High mechanical strength, withstand large differential pressure
2. Wedge shape slot opening can improve the ability of backwashing and regeneration
3. Resistance to pressure, temperature, aging and corrosion
VI. Selection Principles
When selecting a basket filter, the following factors need to be considered:
Inlet and Outlet Diameter: The inlet and outlet diameter of the filter should match the pipeline diameter to ensure smooth fluid flow.
Nominal Pressure: The pressure rating of the filter should be determined based on the highest possible pressure in the pipeline to ensure the safe operation of the filter.
Mesh Size Selection: The selection of mesh size mainly depends on the particle size of the impurities to be intercepted and process requirements. Generally, the smaller the impurity particle size, the higher the required mesh size.
VII. Maintenance and Servicing
To ensure the normal operation and extend the service life of a basket filter, regular maintenance and servicing are required. This mainly includes:
Cleaning the Filter Basket: Regularly clean the impurities in the filter basket to prevent clogging and wear.
Replacing the Filter Screen: If the filter screen is found to be deformed or damaged, replace it with a new one to ensure filtration effectiveness.
Shengda Filtration provides you with various kinds of wedge wire screen. Johnson screen (commonly known as wedge wire screen) is made of V-shape profile wire and support rod on high precision special welding equipment. Because of its special V-shape slot opening and the advantages of easy backwash and regeneration, it is widely used in various industries.
IF YOU NEED IT, PLEASE CONTACT US.
