Is your compressed air pure and clean?
Dust, various impurities, hydrocarbons and wather in the form of humidity are the main contamination agents enclosed in atmospheric air.Compresssion process escalates and steps up the concentration of such pollution in the air, representing a threat for your business. Compressed air circuits are filled with these contaminants and corrosion comes as the natural effect of such problem. Protect and maintain your downstream equipment thanks to YUKA line air filters.

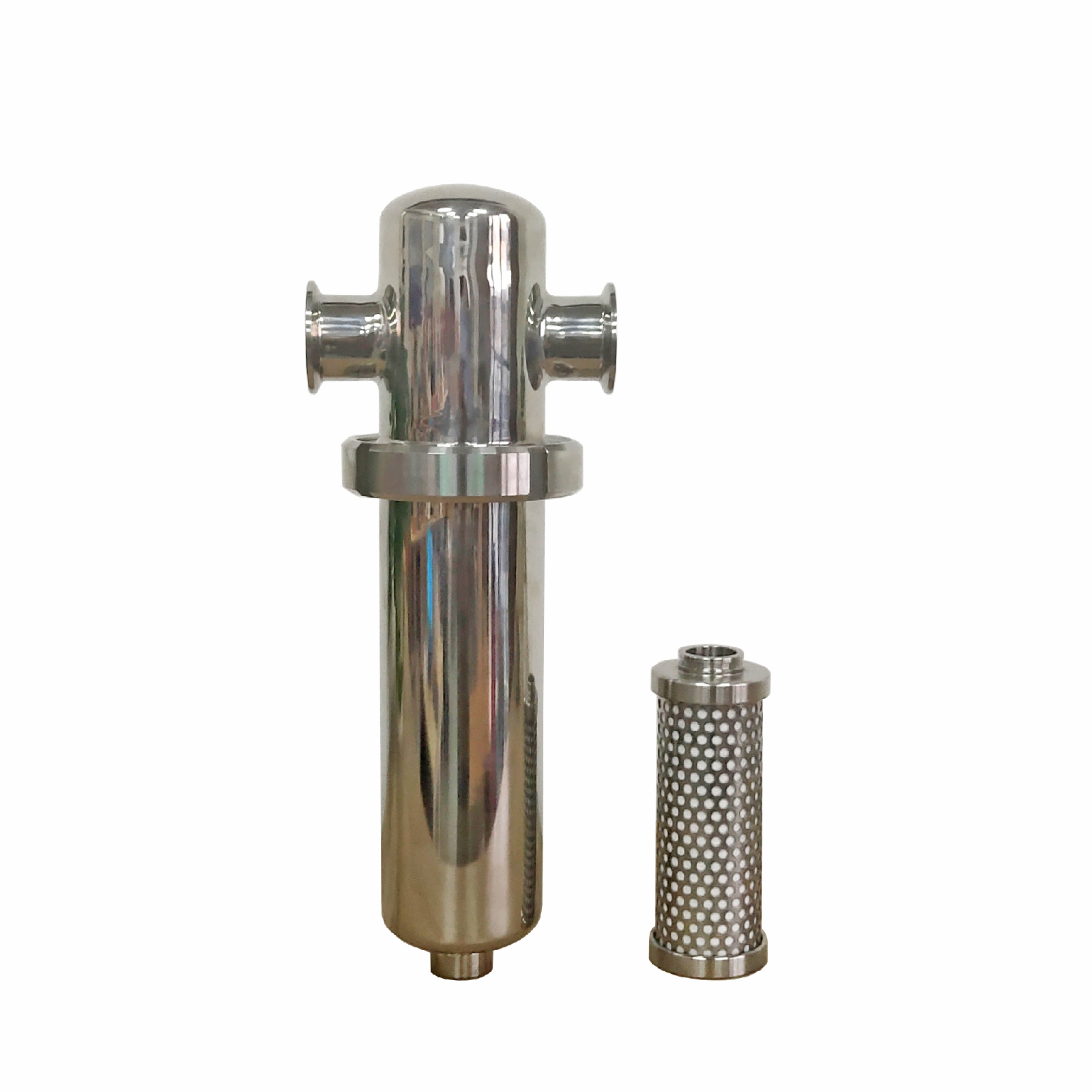

Do you know how to select right stainless steel air filter for your compressed air system?
The below step will will help you to choose the situable filter for your application.
If there is any point you do NOT understand, please contact YUKA's application engineers.
· Assess the requirements of your application. Different industry require different solution.
· What type of filtration is needed? Coalecent filter material removes solid and liquied contaminants from gas streams. Particulate filter media removes solid from gas streams. Absorber media removes hydrocarbon vapors from gas streams.
· Any specific micron of filtration performance you required?
· What are the working conditions of your application? Mainly criteria of consider : Flow, working pressure, temperature,pressure loss,material of structure (stainless steel, aluminum alloy, mild steel, carbon steel)
· Filter flow rate from how much SCFM? Pressure drop should be less than **bar? For saving the cost and protect environment.
Feature & Advantage
· 304 & 314 stainless steel material in die-casted integrated technology, housing warranty with 15 years.
· Design for harsh and complex working environment, low maintenance and repaired fee.
· Stainless steel filter element material, double support mesh, prevent second pollution from itself.
· Filtration performance meet ISO8573.1-2010 standard, particle removal accuracy down to 1 micron.
Technical Specification
| Model | Connection | Flow rate | Dimension(mm) | ||||
| L/S | m³/min | scfm | Width (W) | Depth (D) | Height (H) | ||
| BHL030 | 25 | 25.1 | 1.5 | 53.0 | 150.0 | φ76 | 250 |
| BHL080 | 40 | 66.8 | 4.0 | 141.2 | 170.0 | φ108 | 390 |
| BHL145 | 40 | 116.9 | 7.0 | 247.1 | 170.0 | φ108 | 530 |
| BHL220 | DN65 | 183.7 | 11.0 | 388.3 | 220.0 | φ133 | 700 |
| BHL260-330 | DN80 | 250.5 | 15.0 | 529.5 | 320.0 | φ133 | 980 |
| BHL360 | 334.0 | 20.0 | 706.0 | ||||
| BHL430 | DN80 | 450.9 | 27.0 | 953.1 | 360.0 | φ159 | 850 |
| BHL620 | DN100 | 467.6 | 28.0 | 988.4 | 360.0 | φ159 | 1080 |
| BHL800 | DN100 | 835.0 | 50.0 | 1765.0 | 420.0 | φ219 | 1180 |
| BHL1000 | DN125 | 1002.0 | 60.0 | 2118.0 | 473.0 | φ273 | 1203 |
| BHL1200 | DN125 | 1336.0 | 80.0 | 2824.0 | 473.0 | φ273 | 1203 |
| BHL1400 | DN150 | 1670.0 | 100.0 | 3530.0 | 530.0 | φ325 | 1280 |
| BHL1600 | DN150 | 2505.0 | 150.0 | 5295.0 | 580.0 | φ377 | 1350 |
| BHL1800 | DN200 | 3340.0 | 200.0 | 7060.0 | 630.0 | φ426 | 1450 |
| BHL2000 | DN200 | 4175.0 | 250.0 | 8825.0 | |||
| BHL2200 | DN250 | 5010.0 | 300.0 | 10590.0 | 720.0 | φ500 | 1550 |
| BHL2400 | DN250 | 5845.0 | 350.0 | 12355.0 | |||
| Technical Requirement | Maxi.pressure：16bar g, Maxi.working temperature:80℃, Mini working Temperature 1.5℃ | ||||||
Pressure
Barg
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Psig
15
29
44
59
73
87
100
116
131
145
160
174
189
203
219
232
Correction factor
0.38
0.53
0.65
0.76
0.85
0.93
1.00
1.07
1.13
1.19
1.23
1.31
1.36
1.41
1.46
1.51
Filter Element Grade
Filtration Grade
PF
AO
AA
AX
ACS
AR
AAR
Size of solid particles(ISO12500-3)
5μm
1μm
0.01μm
0.01μm
-
1μm
0.01μm
Filtration performance of solid particles(ISO12500-3)
-
99.999+%
99.999+%
99.999+%
99.999+%
99.999+%
99.999+%
Filtration performance of oil(ISO12500-1)
50%
80+%
99.9+%
99.99+%
-
-
-
Residual oil content(ISO12500-1)
5mg/m³
0.6mg/m³
<0.01mg/m³
<0.001mg/m³
<0.004mg/m³
-
-
