Is your compressed air really clean and pure, free from any stuff that could mess with its quality?
Air from the atmosphere usually has dust, all sorts of impurities, hydrocarbons, and moisture in the form of humidity. These are the main culprits when it comes to contamination. When we compress this air, these pollutants get concentrated, which can seriously impact your business operations. Compressed air systems are especially vulnerable to these contaminants, leading to corrosion over time.
To keep your downstream equipment safe and sound, it's super important to have good filtration solutions in place. The YUKA line of air filters is here to help by effectively getting rid of those unwanted particles from your compressed air systems. With YUKA air filters on your side, you can make sure that your compressed air stays clean and pure—protecting your equipment from damage and helping it last longer. Don’t let contamination put a dent in your business—go for YUKA air filters for reliable protection!

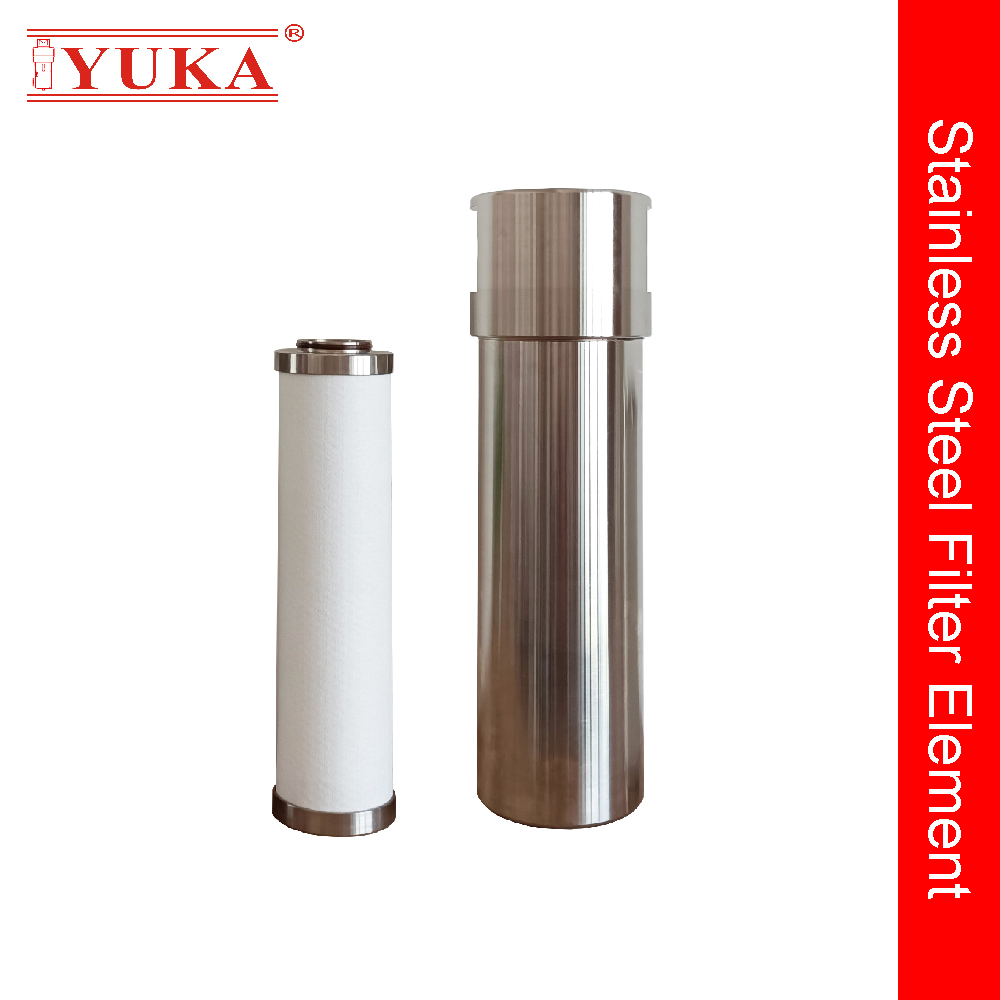

Advantages of stainless steel air filter
①Stainless steel material, 304, 316, 316L optional, resistant to acid and alkali chemical corrosion environment, the shell warranty period is 15 years; the filter element is 4000-6000 hours;
②Deep-wrap filtration, with a filtration performance of 99.99%, suitable for marine operating platforms;
③The double-layer stainless steel filter element support net makes the filter element stronger and prevents secondary pollution;
④Precise thread processing technology, good sealing performance and easy installation, low pressure drop;
⑤Working pressure can be customized
Technical Specification
The flow rate below is the treatment capacity of compressed air under rated working pressure 7 barg (100psi g). For the application in other working pressure, please refer to the correction factors.
Model | Connection | Flow rate | Dimension(mm) | |||||
L/S | m³/min | scfm | Width(W) | Height(H) | A | B | ||
G-BHL017 | Rc1/2" | 16.7 | 1.0 | 35.3 | 85 | 195 | 19.6 | 175.4 |
G-BHL025 | Rc3/4" | 25.0 | 1.5 | 53.0 | 85 | 195 | 19.6 | 175.4 |
G-BHL030 | Rc1/2" | 30.0 | 1.8 | 63.6 | 88 | 205 | 18.8 | 186.2 |
G-BHL035 | Rc3/4" | 33.3 | 2.0 | 70.6 | 88 | 205 | 18.8 | 186.2 |
G-BHL058 | Rc3/4" | 46.7 | 2.8 | 98.9 | 110 | 250 | 24.2 | 225.8 |
G-BHL068 | Rc1" | 60.0 | 3.6 | 127.1 | 110 | 250 | 24.2 | 225.8 |
G-BHL080 | Rc1" | 80.0 | 4.8 | 169.5 | 118 | 380 | 32.2 | 347.8 |
G-BHL145 | Rc1-1/2" | 120.0 | 7.2 | 254.2 | 118 | 380 | 32.2 | 347.8 |
G-BHL220 | Rc2" | 200.0 | 12.0 | 423.7 | 143 | 470 | 43.0 | 427.0 |
G-BHL260 | Rc2-1/2" | 233.3 | 14.0 | 494.4 | 143 | 470 | 43.0 | 427.0 |
G-BHL330 | Rc2" | 267.2 | 16.0 | 564.8 | 150 | 814 | 55.5 | 758.5 |
G-BHL360 | Rc2-1/2" | 317.3 | 19.0 | 670.7 | 150 | 814 | 55.5 | 758.5 |
G-BHL405 | Rc2-1/2" | 367.4 | 22.0 | 776.6 | 185 | 584 | 58.5 | 525.5 |
G-BHL430 | Rc3" | 467.6 | 28.0 | 988.4 | 185 | 584 | 58.5 | 525.5 |
G-BHL620 | Rc3" | 620.0 | 37.2 | 1313.6 | 185 | 814 | 58.5 | 755.5 |
Technical Requirement | Maxi.pressure:250barg, Maxi.working temperature:90℃, Mini working :1.5℃ |
Model Number | BHL017 | BHL025 | BHL030 | BHL035 | BHL058 | BHL068BH | BHL080 | BHL145 | BHL220 | BHL260 | BHL330 | BHL360 | BHL405 | BHL460 | BHL620 |
Flow Rate (m³/min) |
1 | 1.5 | 1.8 | 2.0 | 2.8 | 3.6 | 4.8 | 7.2 | 12.0 | 14.0 | 16.0 | 19.0 | 22.0 | 28.0 | 37.2 |
Filter Grade | PF/AA/AO/AX/ACS/AR/AAR |
Element Performance
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
PF | AO | AA | AX | ACS | AR | AAR |
As a primary filter, particles whose diameter more than 5μm can be removed, the maximum residual oil contect is negligible. | High efficiency general protection, dust particles, water mist and oil mist whose diameter more than 1μm can be removed, the residual content of oil mist does not exceed 0.6mg/m³(21ºC), 1ppm(w). | High efficiency oil removal filtration, dust particles, water mist and oil mist whose diameter more than 0.01μm can be removed, the residual content of oil mist does not exceed 0.01mg/m³(21ºC), 0.01ppm(w). | Ultra-efficient filtration, dust particles, water mist and oil mist whose diameter more than 0.01μm can be removed, the residual content of oil mist does not exceed 0.001mg/m³(21ºC), 0.001ppm(w). | Dust particles whose diameter more than 0.01μm, oil vapor and odor can be removed, the maximum residual residual content of oil vapor does not exceed 0.003mg/m³(21ºC), 0.003ppm(w). | Dust particles whose diameter more than 1μm can be removed. | Dust particles whose diameter more than 0.01μm can be removed. |
International test and measurement standard ISO12500
>ISO 12500 has made clear a general test and definition method for the compressed air filter manufacturers. The main performance parameters
are the air inlet oil content and particles size distribution of the solid particles.
>ISO12500-1 specifies the test requirements for the filtration performance of oil aerosol in the coalescing filter.
>ISO12500-2 specifies the test requirements of adsorption filters for the removal performance of steam adsorption.
>ISO12500-3 specifies the requirements for removal of particulate matter from solid pullutants.
Products are tested with the international advanced testing equipment based on standard ISO12500,
which is equivalent to the standard ISO8573.
Filtration Grade | PF | AO | AA | AX | ACS | AR | AAR | |
Size of solid particles(ISO12500-3)
|
5μm | 1μm | 0.0μm | 0.01μm | - | 1μm | 0.01μm | |
|
- | 99.999+% | 99.999+% | 99.999+% | 99.999+% | 99.999+% | 99.999+% | |
Filtration performance of oil(ISO12500-3) | 50% | 80+% | 99.9+% | 99.99% | - | - | - | |
Residual oil content(ISO12500-1) | 5mg/m³ | 0.6mg/m³ |
|
<0.001mg/m | <0.004mg/m³ | - | - |
Why choose YUKA as your long term business partner?
YUKA's YD series filters are ideal solutions for removing pollutants in compressed air systems and saving energy. Use imported quality filter materials and design technology to ensure high-quality compressed air quality and lower operating costs.
We have a full set of testing equipment imported from Europe. Filters and gas-water separators can be tested and rated according to ISO 8573.1: 2009
air quality standards, and provide performance test reports.
Packing & Shipping
Packing: Good packing will protect the goods from damage during transport. We use strong, durable packing material to pack the goods.
Shipping: By air,by sea ,by express
