High power thyristor for phase control applications
YZPST-KP4350A1600V
Features:
. All Diffused Structure
. Linear Amplifying Gate Configuration
. Blocking capabilty up to 1600 volts
. Guaranteed Maximum Turn-Off Time
. High dV/dt Capability
. Pressure Assembled Device
ELECTRICAL CHARACTERISTICS AND RATINGS
Blocking - Off State
|
Device Type |
VRRM (1) |
VDRM (1) |
VRSM (1) |
|
KP4350A |
1600 |
1600 |
1700 |
VRRM = Repetitive peak reverse voltage
VDRM = Repetitive peak off state voltage
VRSM = Non repetitive peak reverse voltage (2)
|
Repetitive peak reverse leakage and off state leakage |
IRRM / IDRM
|
450 mA (3) |
|
Critical rate of voltage rise |
dV/dt (4) |
300 V/msec |
|
Parameter |
Symbol |
Min. |
Max. |
Typ. |
Units |
Conditions |
|
Average value of on-state current |
IT(AV) |
|
4350 |
|
A |
Sinewave,180o conduction,TS=70oC |
|
Peak one cpstcle surge (non repetitive) current |
ITSM |
|
48900
|
|
A
|
10.0 msec (50Hz), sinusoidal wave- shape, 180o conduction, Tj = 125 oC |
|
I square t |
I2t |
|
11.9x106 |
|
A2s |
10.0 msec |
|
Latching current |
IL |
|
1000 |
|
mA |
VD = 12 V; RL= 12 ohms |
|
Holding current |
IH |
|
450 |
|
mA |
VD = 12 V; I = 2.5 A |
|
Peak on-state voltage |
VTM |
|
1.5 |
|
V |
ITM = 6000 A; Duty cpstcle £ 0.01% Tj = 25 oC |
|
Critical rate of rise of on-state current (5) |
di/dt |
|
200 |
|
A/ms |
Switching from VDRM £ 1000 V, non-repetitive |
Gating
|
Parameter |
Symbol |
Min. |
Max. |
Typ. |
Units |
Conditions |
|
Peak gate power dissipation |
PGM |
|
200 |
|
W |
tp = 40 us |
|
Average gate power dissipation |
PG(AV) |
|
5 |
|
W |
|
|
Peak gate current |
IGM |
|
15 |
|
A |
|
|
Gate current required to trigger all units |
IGT |
30 |
300 200 125 |
|
mA mA mA |
VD = 12 V;RL = 6 ohms;Tj = -40 oC VD = 12 V;RL = 6 ohms;Tj = +25 oC VD = 12 V;RL = 6 ohms;Tj = +125oC |
|
Gate voltage required to trigger all units
|
VGT |
0.30 |
5 3
|
|
V V V |
VD = 12 V;RL = 6 ohms;Tj = -40 oC VD = 12 V;RL = 6 ohms;Tj = 0-125oC VD = Rated VDRM; RL = 1000 ohms; Tj = + 125 oC |
|
Peak negative voltage |
VGRM |
|
15 |
|
V |
|

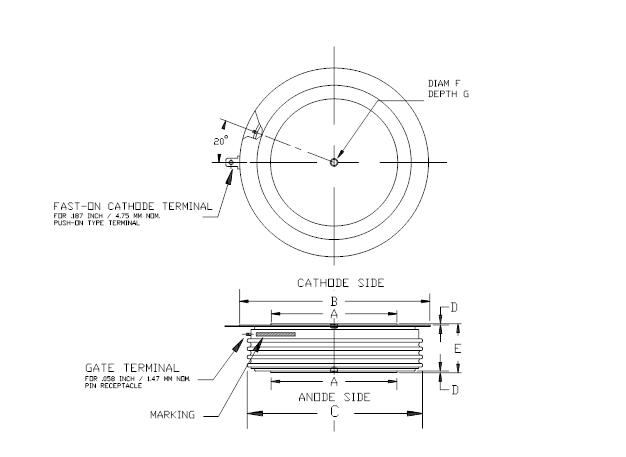

CASE OUTLINE AND DIMENSIONS.
