TRIAC
BTA12-600SW
TO-220A Table glass passivation process Voltage stability triac
●Product features
Single mesa structure (Single Mesa),
Table glass passivation process,
Voltage stability
The ability of strong current shock resistance
The applicable model： BTA12
●The main purpose
Washing machine, the hair straightened
Solid state relay, AC motor speed control
●Package
TO-220A
●Main Feature (Tj=25℃)
|
Symbol |
Value |
Unit |
|
IT(RMS) |
12 |
A |
|
VDRM / VRRM |
600/800 |
V |
|
VTM |
1.55 |
V |
●Absolute ratings (Limiting Values)
|
Symbol |
Parameter |
Value |
Unit |
|
ITSM |
Non repetitive surge peak on-state Current (tp=10ms) |
115 |
A |
|
I2t |
(tp=10ms) |
70 |
A2S |
|
dI/dt |
IG=2IGT，tr≤100ns,Tj=125℃ |
50 |
A/μs |
|
IGM |
Peak gate current(tp=20us) |
4 |
A |
|
PG(AV) |
Average gate power |
1 |
W |
|
Tstg Tj |
Storage temperature Operating junction temperature |
-40--+150 -40--+125 |
℃ |

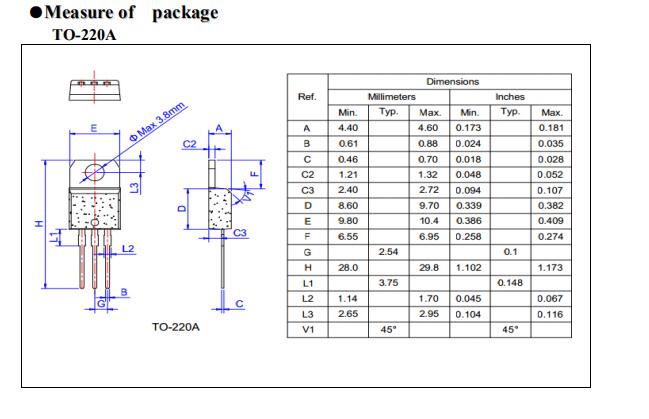

●Measure of package
TO-220A
