---up to 400 l/min
---up to 210bar
---material: GGG/steel
1. Basic Introduction
The FMND model filter is a high-performance inline filter widely used in hydraulic systems and other fluid systems to remove impurities from the fluid and protect system components from damage.
2. Structural Composition
Filter Housing: With a built-in bypass valve and screw-in filter bowl, making it easy to replace and clean the filter element. Filter housings must be earthed.
Filter Element: Made of high-quality materials, providing excellent filtration performance and service life.
Connection Components: Offering multiple connection options, such as 1/2 to SAE DN 38, allowing users to choose based on actual needs.
Indicator: A cclogging indicator monitors the clogging condition of the filter element. When the filter element is clogged, the indicator signals users to replace it promptly. * When using electrical clogging indicators, the electrical power supply to the system must be switched off before removing the clogging indicator connector.
3. Technical specification
3.1 Filter housing
Construction

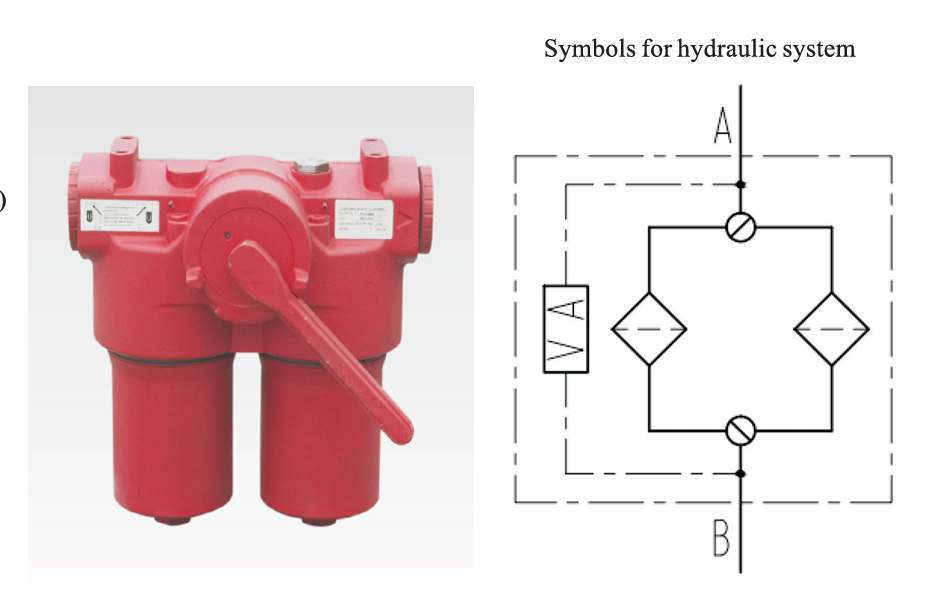

Change-over inline filter consist of a filter head with a built-in change-over valve and screw-in filter bowls.
Standard equipment:
* Without bypass valve
* Connection for a clogging indicator
* Oil drain plug
3.2 Filter elements
Max. Allowable D.P.:
BN/HC: 20bar； BH/HC: 210bar
3.3. Description
Mounting: Inline filter
Temperature range: -10 °C to +100 °C
Pressure setting of the clogging indicator: 5bar-10% (others on request)
Bypass cracking pressure: 7bar+10% (others on request)
Seals: NBR
4. Working principle
The FMND series filters filter impurities from the fluid through its built-in filter element. When the fluid passes through the filter, impurities are blocked by the filter element and accumulate on the filter element. With the increase of use time, the impurities on the filter element will gradually increase, resulting in a decrease in filtration effect. At this time, the normal working state of the filter can be restored by replacing or cleaning the filter element.
5. Applications
It can be used for mineral oils, lubrication oils, non-flam fluids, synthetic and rapidly biodegradable fluids.
6. Product Advantages
High flow rate: FMND series filter flow rate of up to 400 l/min, can meet the needs of large flow system.
High pressure capacity: Its pressure capacity can reach 250 bar, suitable for high pressure working environment.
Compact: Includes a filter head and a screw-in filter bowl for compact installation and easy maintenance.
