Product details

Inherent properties of anti-static Bakelite: high mechanical strength, superior wear resistance, intermediate electrical insulation.

Product Characteristics

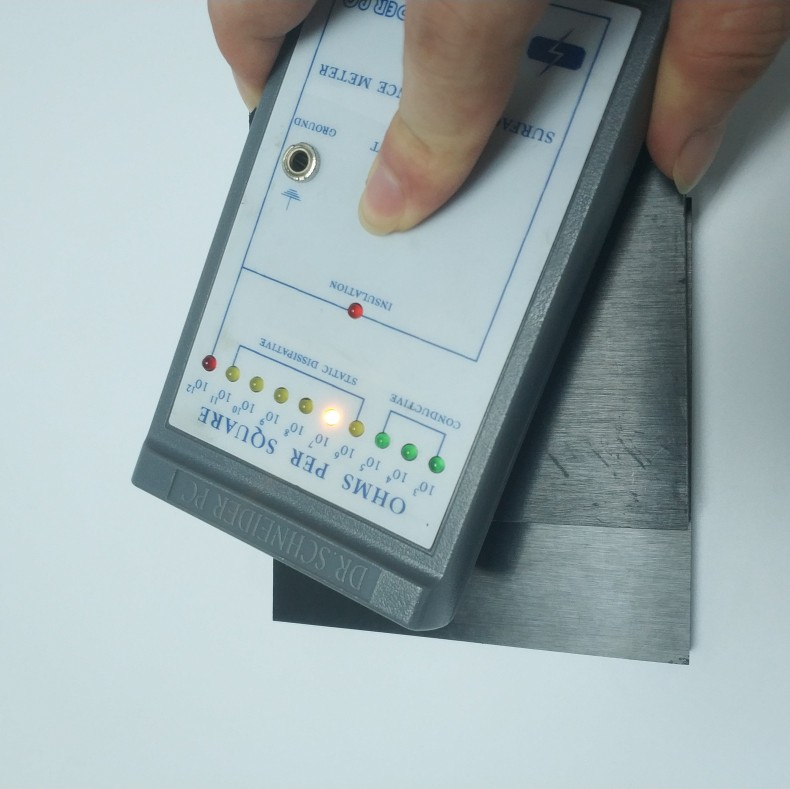

Antistatic Bakelite boards have the same antistatic value in all parts, and the overall resistance value is 10^8-10^10Ω, which has stable antistatic performance.

After mechanical processing or surface abrasion, there is no change in the antistatic value.

Resistant to organic solvents, insoluble at room temperature, the use temperature is -20-120 ℃ high mechanical strength, excellent processing performance.

Antistatic Bakelite board plays an important role in many fields with its stable performance.

Anti-static bakelite board has good mechanical properties. It has high strength and can withstand certain pressure and impact, and is not easy to rupture or damage. In the process of use, even if it is subjected to external forces, it can maintain its shape and structural integrity. At the same time, it also has good abrasion resistance, which can resist friction and abrasion and prolong its service life.

In terms of anti-static performance, anti-static bakelite board excels. It can effectively prevent the generation and accumulation of static electricity, avoiding damage to electronic equipment and sensitive components caused by static electricity. This stable anti-static performance makes it widely used in electronic and electrical fields, providing a reliable guarantee for the normal operation of equipment.

In addition, anti-static bakelite board has good insulating properties. It can stop the passage of electric current and prevent electrical accidents from occurring. In high temperature and humid environment, its insulating properties remain stable and will not be reduced due to the influence of environmental factors.

Anti-static bakelite board has a wide range of applications

In the field of electronic industry, anti-static bakelite boards are often used as insulating materials and gaskets for electronic products. Due to its good anti-static properties, it can effectively prevent static electricity from damaging electronic components and ensure the stable operation and service life of electronic products. For example, in the circuit board manufacturing and assembly process, anti-static bakelite board can be used as a support and isolation materials to protect sensitive electronic components from external static interference.

In the machinery manufacturing industry, anti-static bakelite board can be used to make gaskets and buffer materials for various mechanical parts. It has a certain degree of hardness and abrasion resistance, can withstand a certain degree of pressure and friction, while at the same time can play a role in shock absorption and noise reduction. In addition, anti-static bakelite board can also be used to make pads and fixtures for molds, improving the precision and service life of molds.

In the field of laboratory and medical equipment, anti-static bakelite board also has important applications. In the laboratory, it can be used as the padding of the experimental bench and the insulating material of the instruments to ensure the safety and accuracy of the experiments. In medical equipment, anti-static bakelite board can be used to make the shell and parts of medical equipment, to prevent static interference with medical equipment and harm to patients.

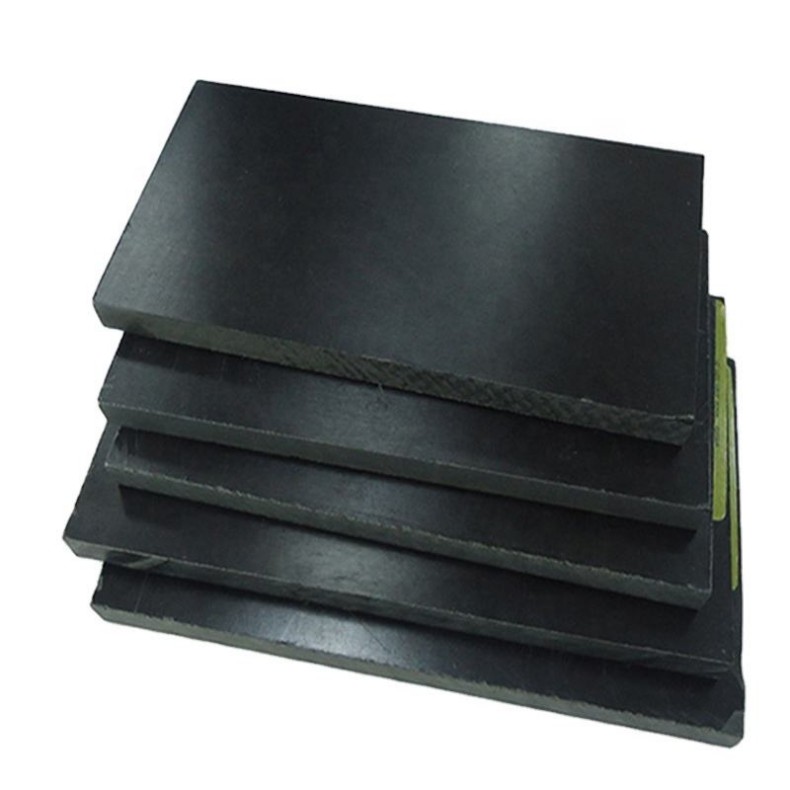

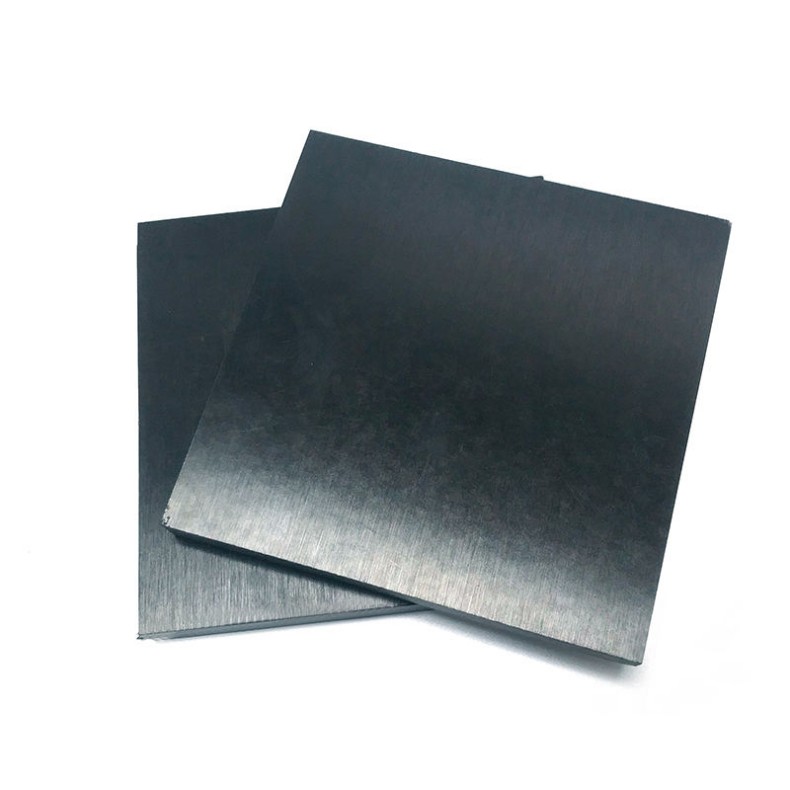

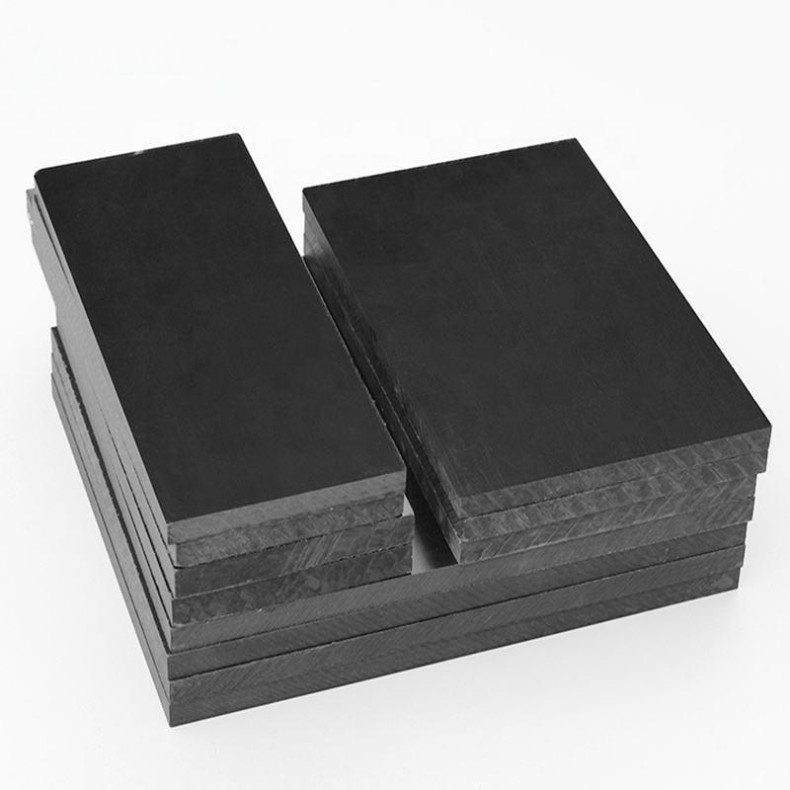

The size specifications of antistatic bakelite boards are as follows:

Thickness: anti-static bakelite boards have a wide range of thicknesses, which can vary from 2mm to 100mm.

Common thicknesses include 2 mm, 3 mm, 4 mm, 5 mm, 8 mm, 10 mm, 12 mm, 15 mm and 20 mm

Length and Width: Anti-static Bakelite panels are also available in a variety of lengths and widths. Common lengths are 2000 mm and widths are 1000 mm or 1220 mm

In addition, there are some other sizes, such as 1020x1220 mm, 1220x1220 mm, 1000x2000 mm, 1240x2440 mm and 1500*3000 mm

Difference between bakelite board and epoxy board, do you know?

Bakelite and epoxy boards are both commonly used sheets in industry and have a wide range of applications. Let's take a closer look at the characteristics of these two types of boards and the application scenarios.

Bakelite: a representative of insulation and durability

Bakelite board is a synthetic cardboard that belongs to plastic products. Its professional name is Bakelite Phenolic Laminated Paperboard, which is mainly made of phenolic resins reacting with high-purity, fully synthetic petrochemical raw materials. Bakelite board is insulating, non-absorbent, non-static, abrasion-resistant, and high-temperature-resistant, so it is commonly used in insulated switches, variable resistors, molds, and fixtures on production lines for electronic products. It can also be used in transformer oil, good electrical properties at room temperature, specific gravity of about 1.45, warping less than 3 ‰, with good electrical and processing properties. Paper glued wood is a common form of bakelite board, widely used in a variety of industrial laminates, especially suitable for use in motors and electrical equipment with high mechanical performance requirements.

Epoxy boards: the choice for high insulation and heat resistance

Epoxy board is also known as epoxy fiberglass board or epoxy phenolic laminated glass cloth board. It is made of fiberglass cloth bonded with epoxy resin and made by heating and pressing. Epoxy board has high mechanical properties under medium temperature and stable electrical properties under high humidity. It is suitable for high insulating structural parts for machinery, electrical appliances and electronics, with high mechanical and dielectric properties, good heat and moisture resistance. The heat resistance grade is F (155 degrees). Specification thickness ranging from 0.5 ~ 100mm, heat deformation at high temperatures of 180 degrees Celsius, generally not with other metals in a piece of heat, so as not to cause deformation of the metal plate. Epoxy plate (FR-4) has high mechanical properties and dielectric properties, good heat and moisture resistance, and good machinability.

Summarize

Bakelite and epoxy boards each have their own characteristics. Bakelite boards are known for their insulation and durability, while epoxy boards are known for their high insulating and heat-resistant properties. Choosing the right board according to the specific application requirements can better utilize their advantages.
