1uF IGBT buffer absorption capacitor P=32.5mm
IGBT buffer absorption capacitor
Rated capacitance ( CN )：1μF
Rated voltage(UN )：1600V.dc
Surge voltage(US )：2400V t<100ms
Specifications
Reference standards
IEC 61071(GB/T 17702)
Rated capacitance ( CN )
1μF
Capacitance tolerance
± 5%(J )
Rated voltage(UN )
1600V.dc
Surge voltage(US )
2400V t<100ms
1 . 1UN 8h/day
1 . 15UN 30min/day
Over voltage
1 . 2UN 5min/day
1 . 3UN 1min/day
Max . current(Im a x )
25A(40°C)
Max . peak current(Ip ea k )
1 . 1kA
Dielectric dissipation factor(tanδ0 )
2×10- 4
Series resistance(Rs )
6mΩ(100kHz)
Self- inductance(Ls )
28nH
Expected lifetime
100000h
Failure rate
30 FIT
Test data
Test voltage between terminals(UT-T )
1 . 5UN/10s
Test voltage between terminals to case(UT- C )
4000V.ac/10s
Dissipation factor(tanδ)
≤1×10- 3 (1kHz)
Insulation resistance(@20°C, 100V, 1min)
IR≥15000MΩ(C N ≤0 .33μF)
IR×CN ≥ 5000s(CN >0 .33 μF)
Environmental data
Operating temperature
-40°C ~ +85°C
Storage temperature
-40°C ~ +85°C
Climatic category
40/85/21
Cooling
Natural cooling
Max . altitude
2000m

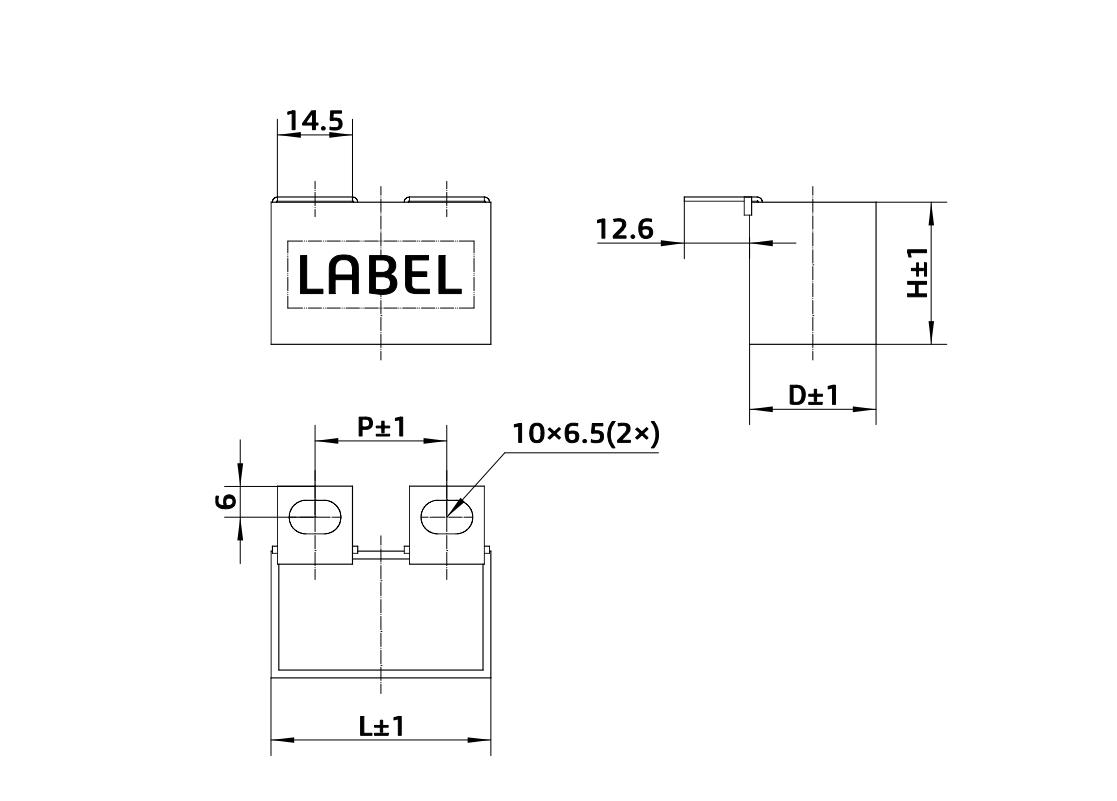

Outline drawing
Length(L)
57 . 5mm
Depth(D)
30mm
Height(H)
45mm
Center distance(P)
32 . 5mm
