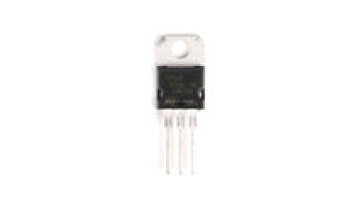

P/N: YZPST-BT139 Series 16A Triacs
YZPST-BT139-600E
DESCRIPTION:
With low holding and latching current, BT139 Series triacs are especially recommended for use on middle and small resistance type power load.
|
symbol |
value |
unit |
|
IT(RMS) |
16 |
A |
|
VDRM/VRRM |
600/800 |
V |
|
VTM |
≤1.6 |
V |
ABSOLUTE MAXIMUM RATINGS:
| Parameter | Symbol | Value | Unit | |
| Storage junction temperature range | Tstg | -40~150 | ℃ | |
| Operating junction temperature range | Tj | -40~125 | ℃ | |
| Repetitive peak off-state voltage (Tj=25℃) | VDRM | 600/800 | V | |
| Repetitive peak reverse voltage (Tj=25℃) | VRRM | 600/800 | V | |
| RMS on-state current | IT(RMS) | 16 | A | |
| Non repetitive surge peak on-state current | ||||
| (full cycle, F=50Hz) | ITSM | 140 | A | |
| I2t value for fusing (tp=10ms) | I2t | 98 | A2s | |
| Critical rate of rise of on-state current (IG=2 × IGT) | Ⅰ- Ⅱ-Ⅲ | 50 | ||
| dI/dt | Ⅳ | 10 | A/ μs | |
| Peak gate current | IGM | 2 | A | |
|
Average gate power dissipation |
PG(AV) |
0.5 |
W |
|
Peak gate power |
PGM |
5 |
W |
ELECTRICAL CHARACTERISTICS (Tj=25℃ unless otherwise specified)
| Parameter | Value | ||||||
| Test Condition | Quadrant | D | E | F | Unit | ||
| Ⅰ- Ⅱ-Ⅲ | 5 | 10 | 25 | ||||
| IGT | Ⅳ | 10 | 25 | 70 | mA | ||
| VGT | VD=12V, RL=33Ω | Ⅰ- Ⅱ-Ⅲ-Ⅳ | MAX | 1.3 | V | ||
| VGD | VD=VDRM | Ⅰ- Ⅱ-Ⅲ-Ⅳ | MIN | 0.2 | V | ||
| IH | IT=100mA | MAX | 10 | 20 | 40 | mA | |
| Ⅰ-Ⅲ-Ⅳ | 15 | 30 | 50 | ||||
| IL | IG=1.2IGT | Ⅱ | MAX | 20 | 40 | 70 | mA |
| VD=0.66×VDRM Tj=125℃ Gate open | |||||||
| dV/dt | MIN | 20 | 50 | 100 | V/ µs | ||
THERMAL RESISTANCES
| Symbol | Test Condition | Value | Unit | |
| TO-220C | 1.3 | |||
| Rth(j-c) | junction to case(AC) | TO-220A(Ins) | 2 | ℃/W |

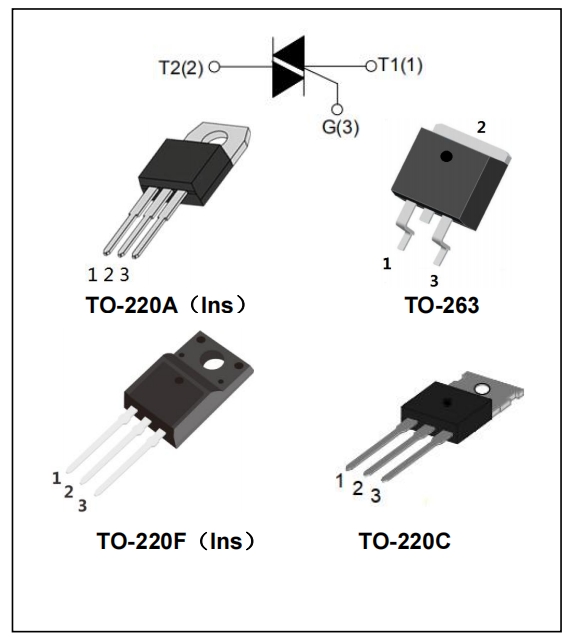

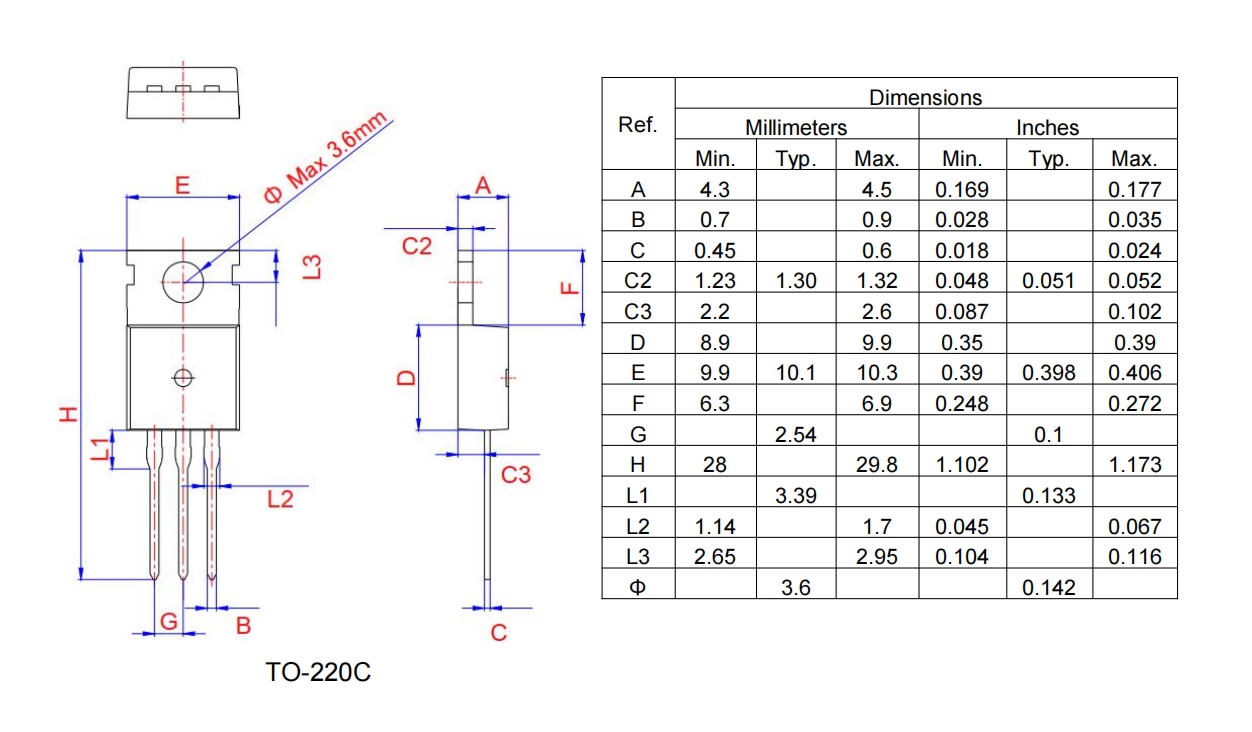

PACKAGE MECHANICAL DATA
