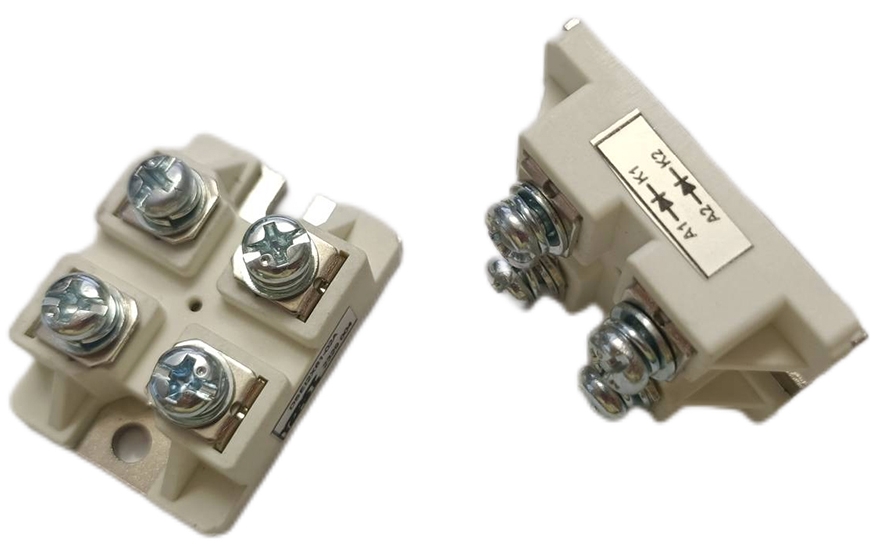

Fast Recovery Diode Modules
P/N:YZPST-DSEI2X61-02A
·Battery chargers
BLOCKING
Symbol
Condition
Ratings
Unit
VRRM
VRSM
Tj=25°C
200
200
V
IRRM
AtVRRM，Single phase，half wave，Tj=125°C
15
mA
VISOL
50Hz, 1S/1MIN
3000/2500
V
CONDUCTING
|
Symbol |
Condition |
Ratings |
Unit |
|
IF(AV) |
TC=150°C; 180° sine |
61 |
A |
|
IF(RMS) |
TC=60°C; 180° sine |
- |
A |
|
IFSM |
TC=45°C; t = 10 ms (50 Hz); sine |
550 |
A |
|
I2t |
Tj= Tj Max.; t = 10 ms (50 Hz); sine |
- |
kA2S |
|
VF(TO) |
Tj= 150°C |
1.51 |
V |
|
rF |
Tj=150°C |
7.1 |
mΩ |
|
VFM |
On-State Current 120A，Tj=150°C |
1.82 |
V |
|
Trr |
IF =100A –di/dt=600A/us VR =600V |
35 |
ns |
Electrical Characteristics
|
Symbol |
Condition |
Ratings |
Unit |
|
Rth(j-c) |
Per Module |
0.5 |
K /W |
|
Rth(c-h) |
Per Module |
0.1 |
K /W |
|
Tj |
|
-40 ~ + 150 |
°C |
|
Tstg |
|
-40 ~ + 125 |
°C |
|
M |
mounting torque |
1.1-1.5 |
Nm |
|
terminal torque |
1.1-1.5 |
Nm |
|
|
W |
|
30 |
g |
Outline Drawing
