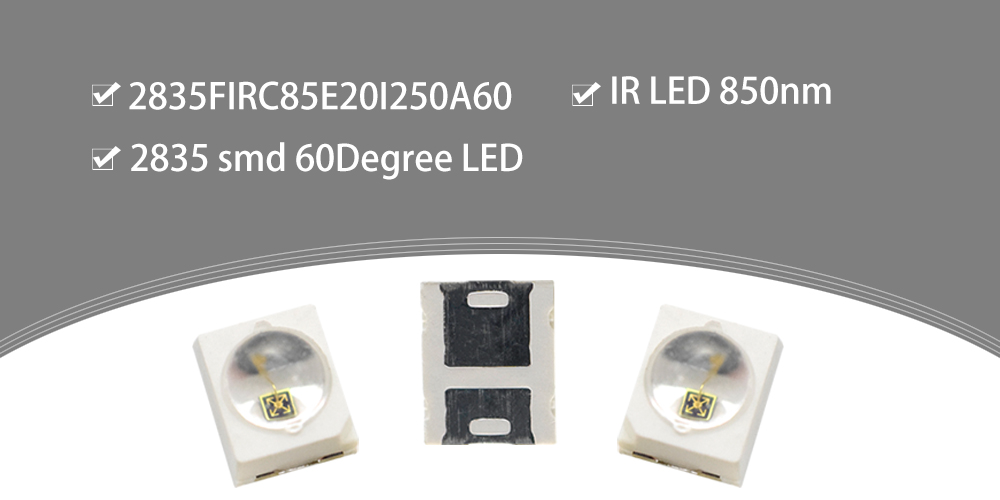

High Power 2835 IR LED 850nm;
As we know, the bigger chip, the higher operation current. In this 2835 dome lens SMD LED frame, we can produce it with three kinds of 850nm LED chip inside. From low to high, this 850nm IR LED can handle 50mA, 100mA and even 250mA operation current. 2835FIRC85E20I250A60 are the one that can handle 250mA current. In this case, the domed lens LED will emits radiation at 320mw/sr. If you need some high efficiency 850nm IR LED for your project, this one will work perfectly for your project.
Electrical Parameters:
|
Parameter |
Symbol |
Rating |
Unit |
|
Reverse Voltage |
VR |
5 |
V |
|
Junction Temperature |
Tj |
100 |
℃ |
|
Operating Temperature |
Topr |
-40 - +80 |
℃ |
|
Storage Temperature |
Tstg |
-40 - +100 |
℃ |
|
Soldering Temperature |
Tsol |
260 |
℃ |
|
Electro-Stati-Discharge(HBM) |
ESD |
1000 |
V |
|
Service lige under normal conditions |
Time |
60000 |
H |
|
Warranty |
Time |
2 |
Years |
|
Antistatic bag |
Piece |
2000 |
Bag |
*Pulse forward current confition: Duty 1% and Pulse width=10us.
*Soldering confition: Soldering confition must be completed with 3 secongds at 260℃
| Parameter | Symbol | Rating | Unit |
| Forward Current | IF | 250 | mA |
| Forward Voltage | V | 1.5-1.7 | v |
| Luminous Intensity | IV | 320 | mw/sr |
| Wavelength |
λP |
850 | nm |
| Packing | Piece | 2000 | Reel |
| Viewing angle | 2θ1/2 | 60 | Deg |
*Luminous intensity is measured by ZWL600.
*λD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

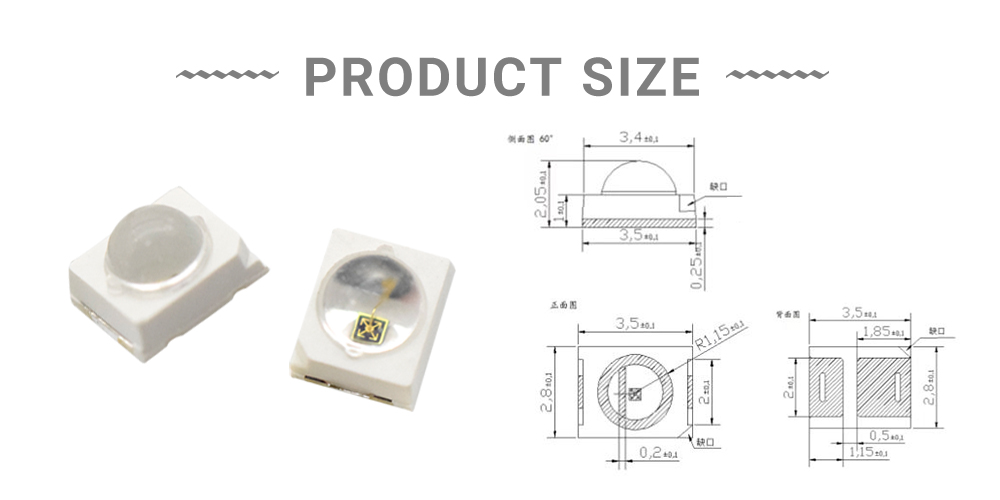

Domed Lens SMD LED Size :
*This SMD LED size are also available in Yellow LED, Red SMD LED, Amber LED, Orange LED ect. *

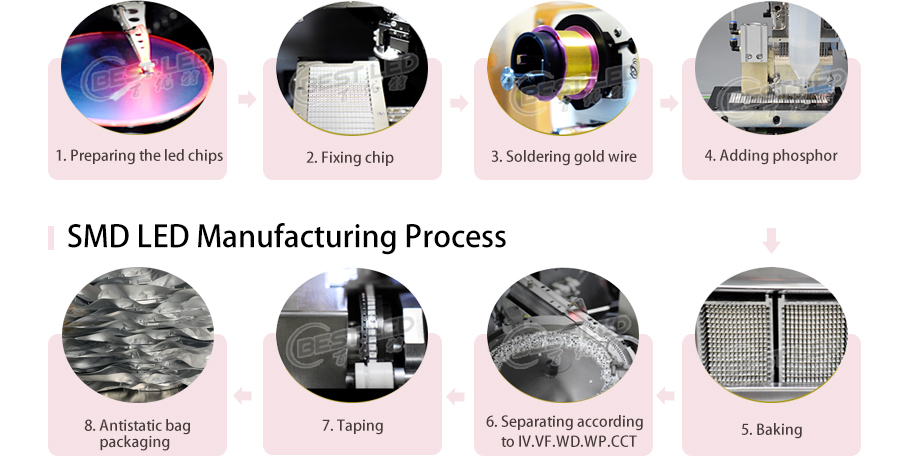

Production of SMD LED;
