Maximum Ratings
|
Symbol |
Parameter |
Value |
Unit |
Test Conditions |
Note |
|
vRRM |
Repetitive Peak Reverse Voltage |
1200 |
V |
TC = 25C |
|
|
vRSM |
Surge Peak Reverse Voltage |
1200 |
V |
TC = 25C |
|
|
vR |
DC Blocking Voltage |
1200 |
V |
TC = 25C |
|
|
IF |
Forward Current |
30 14 10 |
A |
TC ≤ 25C TC ≤ 135C TC ≤ 150C |
|
|
IFSM |
Non-Repetitive Forward Surge Current |
95 |
A |
TC = 25C, tp = 8.3ms, Half Sine Wave |
|
|
Ptot |
Power Dissipation |
150 |
W |
TC = 25C |
Fig.3 |
|
TC |
Maximum Case Temperature |
150 |
C |
||
|
TJ , TSTG |
Operating Junction and Storage Temperature |
-55 to 175 |
C |
||
|
TO-220 Mounting Torque |
1 |
Nm |
M3 Screw |
|
Electrical Characteristics
|
Symbol |
Parameter |
Typ. |
Max. |
Unit |
Test Conditions |
Note |
|
VF |
Forward Voltage |
1.55 2.2 |
1.8 2.5 |
V |
IF = 10A, TJ = 25C IF = 10A, TJ = 175C |
Fig.1 |
|
IR |
Reverse Current |
2 10 |
20 200 |
µA |
VR = 1200V, TJ = 25C VR = 1200V, TJ = 175C |
Fig.2 |
|
C |
Total Capacitance |
650 49 40 |
/ |
pF |
VR = 0V, TJ = 25C, f = 1MHz VR = 400V, TJ = 25C, f = 1MHz VR = 800V, TJ = 25C, f = 1MHz |
Fig.5 |
| C |
Total Capacitive Charge |
29 |
/ |
nC |
VR = 800V, IF = 10A di/dt = 200A/µs, TJ = 25C |
Fig.4 |

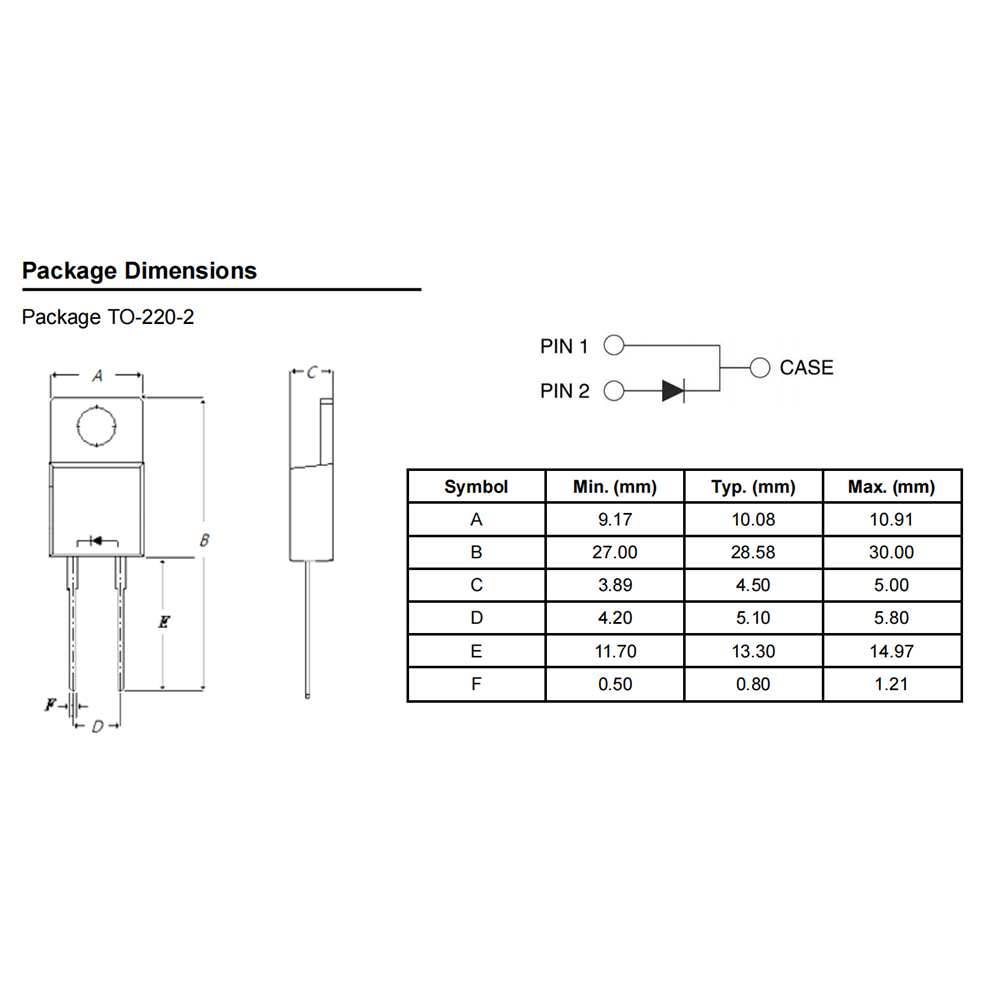

Package Dimensions
Package TO-220-2
