1200V fast recovery epitaxial diode module YZPST-F

3 year ago
86 0
Product details

Fast Recovery Epitaxial Diode (FRED)

YZPST-F2x101-12A
VRRM = 1200 V
IFAVM = 2x 91 A
trr = 48 ns

VRSM V

VRRM V

Type

1200

1200

YZPST-F2x 101-12A

Features


International standard package

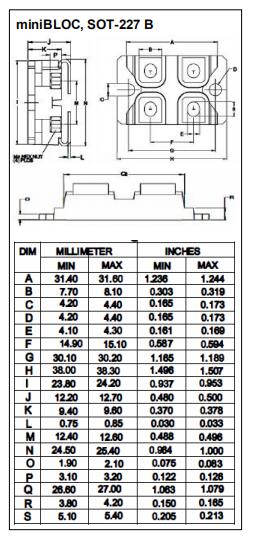

miniBLOC (ISOTOP compatible)
Isolation voltage 2500 V~
matched diodes f. parallel operation
Planar passivated chips
two independent diodes
Very short recovery time
Extremely low switching losses
Low I -values
Soft recovery behaviour
Fast Recovery ModuleFast Recovery ModuleFast Recovery Module
