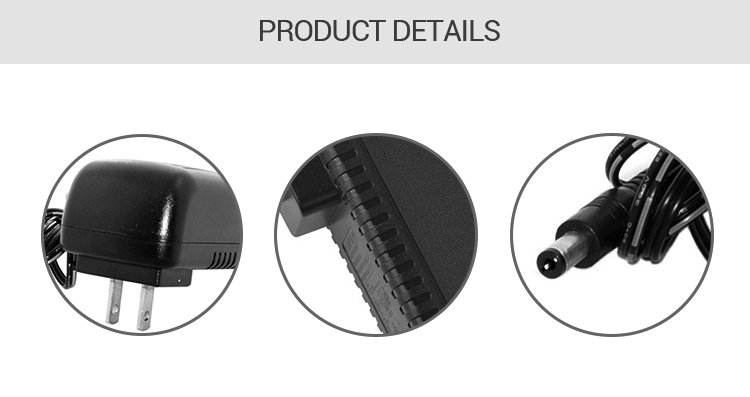

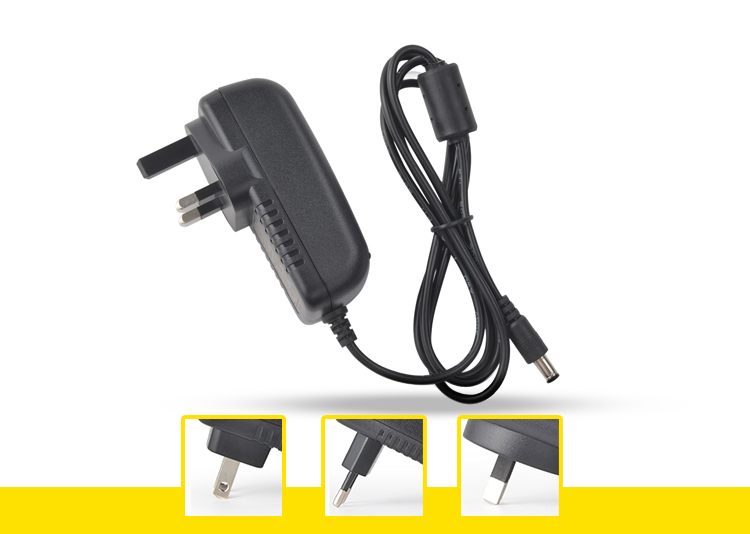

9volt class 2 power supply input 110v-240v ac to 9v 2a dc power adapter for LCD,TV Box, Wide AC input 100-240Vac.100% high voltage test, 100% aging test, 100% full inspection.
Built-in over current, over voltage, over load and short circuit protection,High precision, low ripple and low noise,Super-compact designed, light, handy and portable.Multiple plug type: US/CN/EU/UK/BS/AU/KC/PSE
Certifications: UL FCC CE GS KC PSE SAA RoHS safty approved
|
Specification
|
|
|
|
|
||||
|
Input Voltage Range
|
100-240Vac 50/60Hz
|
|
|
|
||||
|
Output
|
9v 2.0a,18w
|
|
|
|
||||
|
Temperature Coefficient
|
±0.05%/℃
|
|
|
|
||||
|
Voltage Accuracy
|
±2%
|
|
|
|
||||
|
Total Regulation
|
±5%
|
|
|
|
||||
|
Ripple & Noise
|
120mV
|
|
|
|
||||
|
Short Circuit Protection
|
Continuous - hiccup mode
|
|
|
|
||||
|
Over Voltage Protection
|
110-150% of nominal (Cycle input power to reset)
|
|
|
|
||||
|
Efficiency at Average Load
|
83% min
|
|
|
|
||||
|
Operation Temperature
|
0 to ＋60℃, derating linearly to 50% load above 40℃
|
|
|
|
||||
|
Storage Temperature
|
-10 to ＋85℃
|
|
|
|
||||
|
Humidity (non condensing)
|
10-90% RH
|
|
|
|
||||
|
Cooling
|
Convection
|
|
|
|
||||
|
Withstand Voltage
|
Input to Ground 1.5kVAC
Input to Output 3kVAC
(Output is connected to Ground) |
|
|
|
||||
|
Vibration (non condensing)
|
23.52m/s2 (10 - 55Hz: constant sweep 1 min X, Y, Z for 1 hour)
|
|
|
|
||||
|
Shock
|
< 196.1 m/s2 (20G)
|
|
|
|
||||
|
Safety Agency Certifications
|
UL62368,UL1310,UL60950-1, EN609501-1, IEC60950-1, CE Mark
|
|
|
|
||||
|
DOE Regulation
|
VI
|
|
|
|
||||
|
Off-Load Power Consumption
|
<210mV
|
|
|
|
||||
|
Conducted & Radiated EMI
|
EN55023-B, FCC Class B
|
|
|
|
||||
|
Immunity
|
EN55024
|
|
|
|
||||
If you are interested in the product, contact 2bvideo.com for more information for more information
