Product details

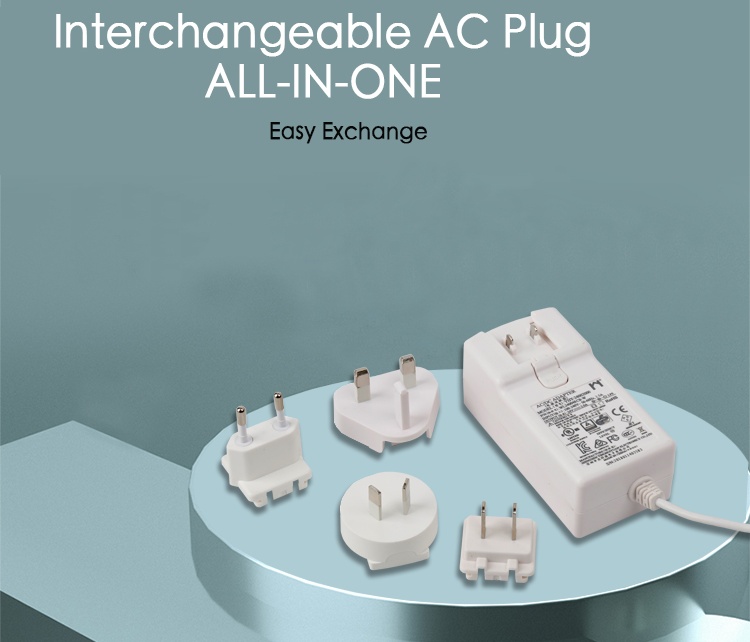

YHY Power Interchangeable AC/DC power adapter solutions in range 5w-60w are available. We can porvide 5w to 60w Interchangeable AC/DC power adapters.



For this 18v 3a power adapter model number YHY-18003000,it have US EU AU UK 4pcs plugs in the kit. Plugs are additional purchase avaliable.


18Vdc 3Amp Power Adapter Product Description

Product
18v 3a Interchangeable plug power adapter
Type
Interchangeable plug Adapter
Material
PC + ABS Fireproof Material
Input
100-240VAC ± 10%; 50/60Hz; 1.5A Max;
Output
18v 3.0a,54W max
Plugs
CN/US/JP/EU/KR/UK/AU/NZ, locking-type plug or detachable-type plug
Protection
Over-temperature protection, over-charge, over-voltage, over-current, short circuit protection
Advantages
Ultra-small size, light weight, streamline, fully sealed and easy to carry
Low-cost design, high reliability, ultrasonic lamination, fireproof housingconstant voltage mode, high precision, low noise
Certificates
CLASS 2 UL1310 / cUL / UL / Level VI / CE / TUV / GS / FCC / KC / KCC / SAA / RoHS / CB / C-Tick / RCM / PSE / CCC
Usage
Intelligent home appliance
medical beauty machines
Consumer electronics
Sports equipment
sweeping robots, air purifier, led lamps, cctv camera, mini fan, massage chair,massage pillow,etc.
facial machines, hair removal device, etc.
tablet, laptop, switch, set top box, electronic musical instrument, etc.
massage gun, E-bike, scooter, etc.


AC DC 18V 3A Interchangeable Power Adapter



AC DC 12V 3A Interchangeable Power Adapter Manufacturing Process



1. Set-Up→2. Hand Insertion→3. Wave Soldering→4. Touch-Up→5. V/I→6. ICT→7. INT→8. Apply Glue→9. Q/A→10. Entering Stock→11. Assembly→12. Power On Test→13. Hi-Pot Test→14. Burn-In→15. Hi-Pot Test→16. All Fun Test→17. Packing→18. OQC→19. Shipping



12Vdc 3A Interchangeable Power Adapter Test Procedures


1.No-load output voltage test→2.input power load test→3.No-load output ripple test→4.Full load open test→5.Full load output voltage test→6.Full load output ripple test→7.Full load input power test→8.Half load output voltage test→9.Half load output ripple test→10.Over load test→11.Over current protection test →12.Short circuit protection test (above test is under both 110V and 230V.)→13.High voltage test→14. burn-in test→15.Turn on delay time test→16.Rise time test→17.Hold time test→18.Overshoot test


60w Interchangeable Power Supply

FAQ

Q1 : Are you a Factory or trading company?

Answer : We are a factory which is located in ShenZhen City, Guangdong.

Q2 : Do you offer the samples for testing?
Answer : Yes, we are pleased to offer you free sample, but you need to bear oversea freight.

Q3 : What’s your MOQ?
Answer : MOQ100pcs,1000pcs for OEM order.

Q4 : OEM and ODM are available?
Answer : Yes, we accept customized products.

Q5 : What is our warranty service?
Answer : For all products we sell have 3 years warranty.

Q6 : Do you have any certifications for your products?
Answer : Yes,we have UL/cUL, FCC, CE, RoHS, KC, TUV GS, PSE, SAA certifications.

Q7 : What’s your payment item?
Answer : Our standard payment is T/T in advance, Paypal and Westerm Union.
