3 Watt Super Bright Blue SMD LED;

8080 is our high power series. It means the SMD LED is a high power LED as long as there have the 8080 in our part number. In this 8080UBC46D45I1A, of course it's also a high power LED with single blue color inside. We produce this blue SMD LED with the biggest blue 460nm LED chip inside so that this SMD LED can even handle 700mA operation current. Most of people will like to install this high power LED onto the star board. If you need that, it's also available in our factory, just contact us for more detail about it~

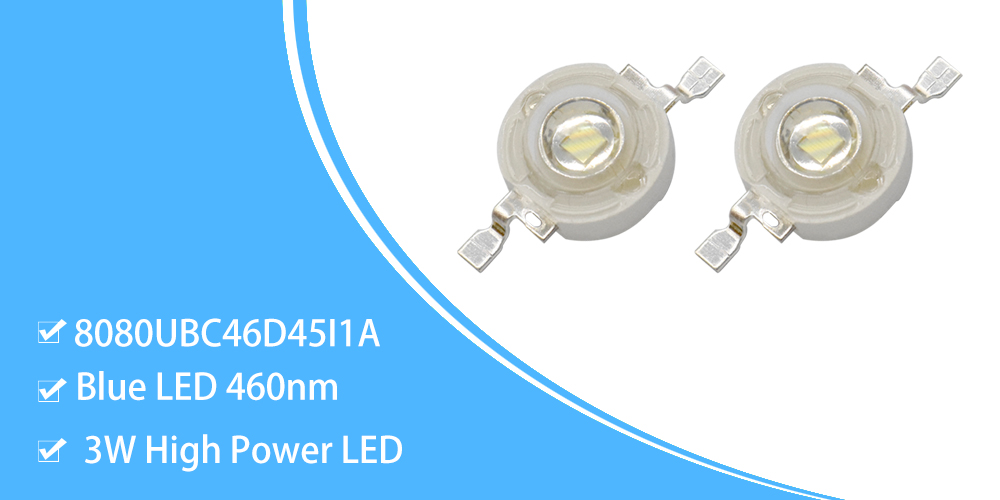

8080UBC46D45I1A 460nm Bright Blue 3W High Power LED SMD High power LED Light source

Blue High Power SMD LED Size:

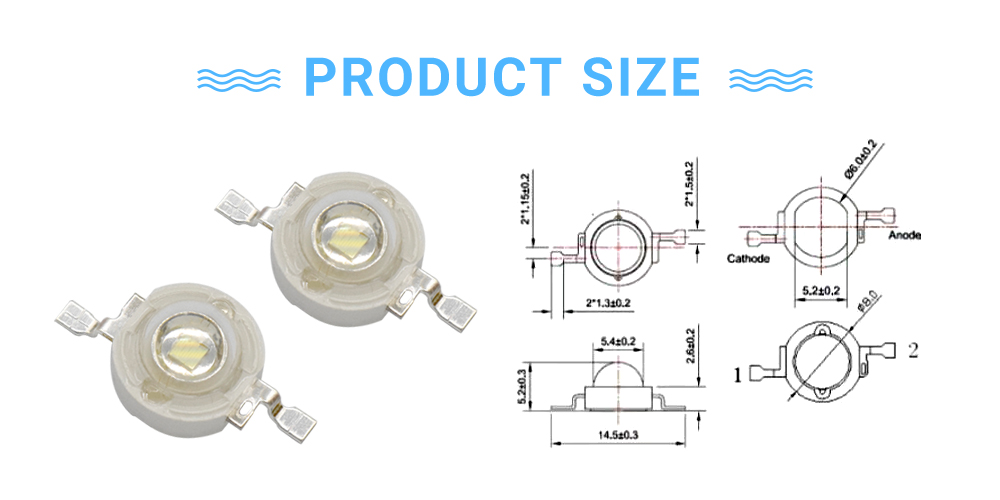

Size of 8080UBC46D45I1A 460nm Bright Blue 3W High Power LED SMD

Electrical Parameters:

Parameter	Symbol	Rating	Unit
Reverse Voltage	VR	5	V
Junction Temperature	Tj	100	℃
Operating Temperature	Topr	-40 - +80	℃
Storage Temperature	Tstg	-40 - +100	℃
Soldering Temperature	Tsol	≤220	℃
Electro-Stati-Discharge(HBM)	ESD	1000	V
Service lige under normal conditions	Time	60000	H
Warranty	Time	2	Years
Antistatic bag	Piece	500	Bag

*Pulse forward current confition: Duty 1% and Pulse width=10us.

*Soldering confition: Soldering confition must be completed with 3 secongds at 260℃

Parameter	Symbol	Rating	Unit
Forward Current	IF	700	mA
Forward Voltage	V	3.0-3.2V	V
Luminous Intensity	IV	20-40	lm
Wavelength	λP	460nm	nm
Packing	Piece	1000	reel
Vewing angle	2θ1/2	120	Deg

*Luminous intensity is measured by ZWL600.

*λD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

Production of SMD Emitting LED:

SMD LED prduction process Blue LED

HANDLING PRECAUTIONS:

Compare to epoxy encapsulant that is hard and brittle, silicone is softer and flexible Althouth its characteristiec significantly reduces thermal stress, it is more susceptible to damage by extemal mechanical force. As a result, special handling precautions need to be observed during assembly using silicone encapsulated Led products. Failure to comply might lead to damage and premature failure of the led

1. Handle the component along the side surfaces by using forceps or appropriate tools.

2, Do not directly touch or handle the silicone lens surface. It may damage the internal circuitry.

3, Do not stack together assembled PCBS containing exposed LEDs. Impact may scratch the silicone lens or damage the internal circuitry.

4, 4-A The inner diameter of the SMD pickup nozzle should not exceed the size of the LED to prevent air leaks;

4-B A plible material is suggested for the nozzle tip to avoid acratching or damaging the LED surface during pickup.

4-C The dimension of the component must be accurately programmed in the pick-and-place machine to insure precise pickup and avoid damage during production;

4-D As silicone encapsulation is permeable to gases, some corrosive substances such as H2S might corrode silver plationg of leadframe. Special care should be taken if an LED with silicone encapsulation is to used near such substances.

5, Please aviod continued exposure to the condensing moisture environment and keep the product away from repid transitions in ambiemt temperature.

6, Product in the original sealed package is recommended to be assembled within 24 hours of opening.
