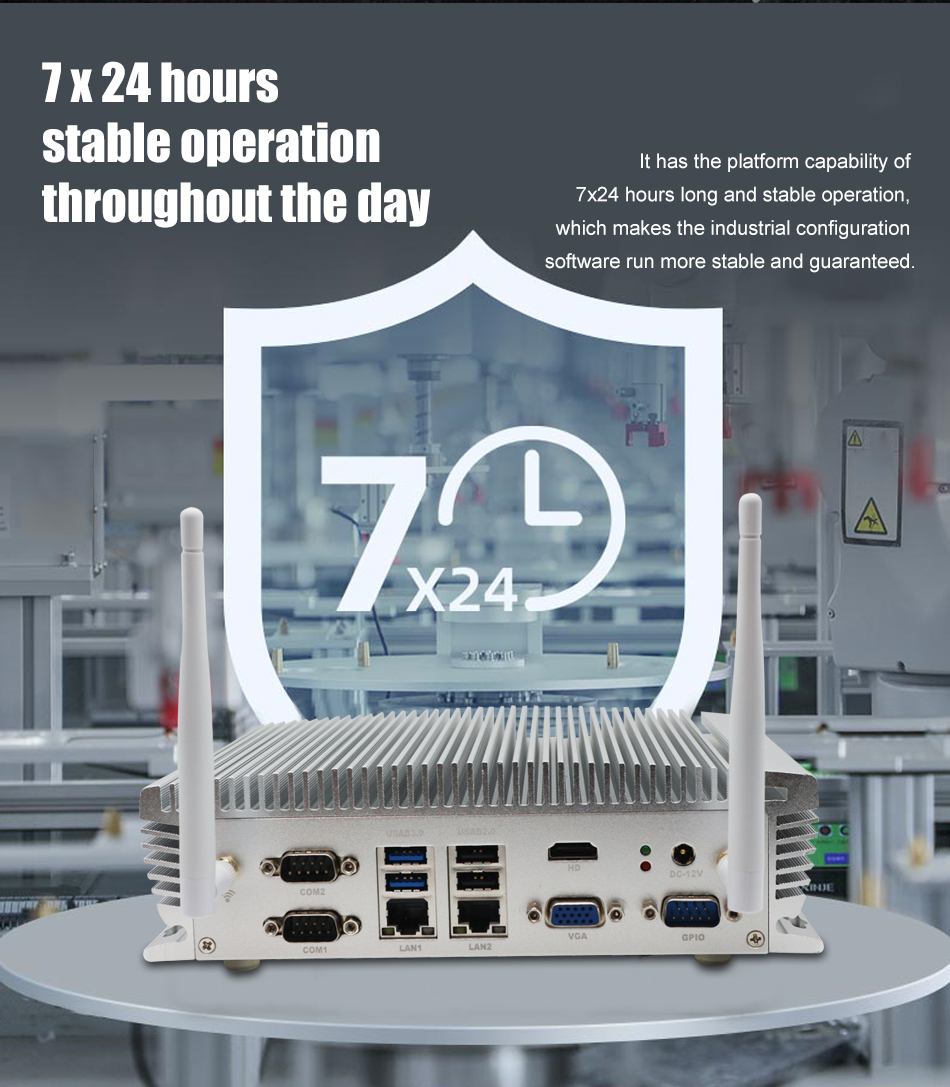

Industrial Mini PC intel nuc i5 6360U DDR4 Desktop industrial mini computer are designed for unique, industrial applications that require compact size, durability, high reliability, and universal performance. These characteristics make these Rugged PCs ideal for applications like manufacturing, industrial automation, medical, semiconductor, food processing, machine control, and other scenarios in which desktops and notebooks are not feasible, yet high processing performance is needed.
|

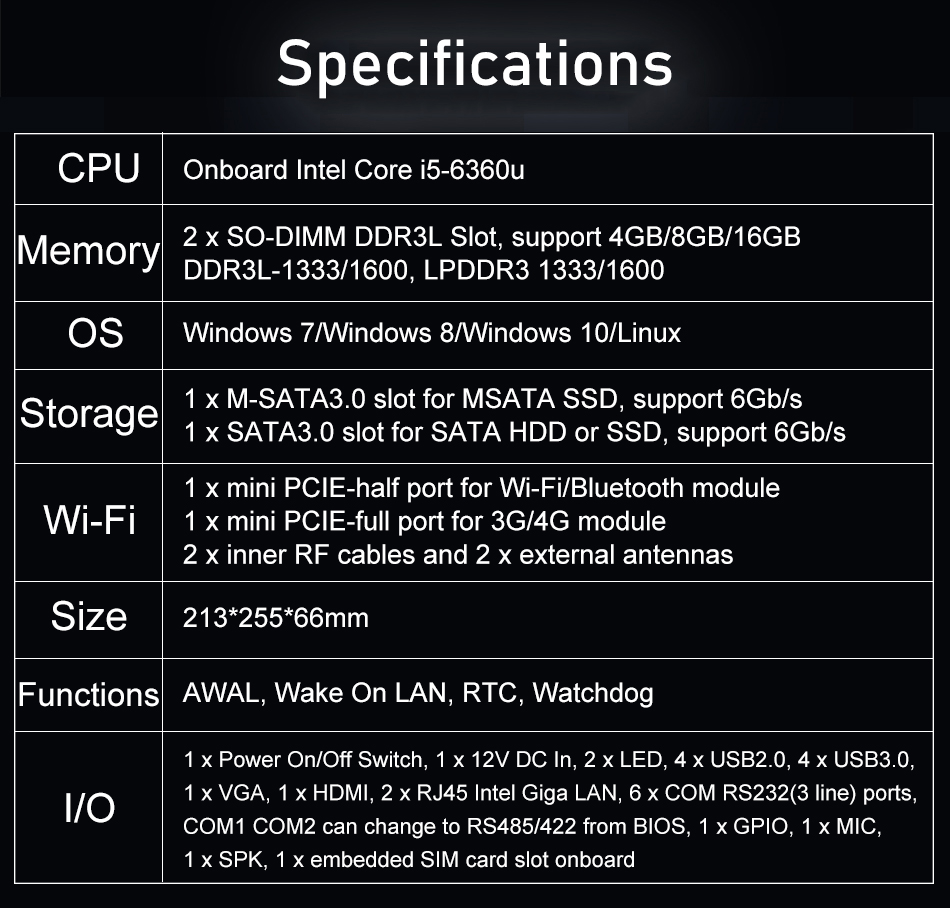

Basic Information: |
|
|
CPU |
Onboard Intel Core i5-6360u |
|
TDP |
15W |
|
Motherboard |
14.5 x 14.7 cm |
|
BIOS |
American Megatrends Inc. 5.6.5 |
|
Chipset |
Intel Sunrise Point-LP, Intel Skylake-U |
|
Memory |
2 x SO-DIMM DDR3L Slot, Support 4GB/8GB/16GB DDR3L 1333/1600, LPDDR3 1333/1600 |
|
OS |
Windows 7/Windows 8/Windows 10/Linux |
|
PXE |
YES |
|
Audio |
Intel Skylake HDMI @ Intel Sunrise Point-LP PCH - High Definition Audio Controller Realtek ALC662 @ Intel Sunrise Point-LP PCH - High Definition Audio Controller |
|
Network |
Onboard Intel i211 Gigabit Network Connection 10/100Mbps/1000Mbps BaseT LAN |
|
Video |
Intel(R) Iris(R) Graphics 540 |
|
Input/output port |
|
|
Switch |
1 x Power On/Off Switch |
|
Power |
1 x 12V DC In |
|
LED |
2 x LED |
|
USB |
4 x USB2.0, 4 x USB3.0 |
|
Display |
1 x VGA, 1 x HDMI |
|
LAN |
2 x RJ45 Intel Giga LAN |
|
COM |
6 x COM RS232(3 line) ports, COM1 COM2 can change to RS485/422 from BIOS |
|
SIM |
1 x embedded SIM card slot onboard |
|
GPIO |
1 x GPIO |
|
Audio |
1 x MIC, 1 x SPK |
|
Storage |
|
|
MSATA |
1 x M-SATA3.0 slot for MSATA SSD, support 6Gb/s |
|
SATA |
1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s |
|
Wi-Fi |
|
|
Module |
1 x mini PCIE-half port for Wi-Fi/Bluetooth module 1 x mini PCIE-full port for 3G/4G module |
|
Antenna |
2 x inner RF cables and 2 x external antennas |
|
Power and Working Environment |
|
|
Input |
DC100-240V AC/50-60Hz |
|
Output |
DC +12V~+19V, recommend 12V/5A |
|
Operating Temperature |
-20/+75 Centigrade |
|
Storage Temperature |
-40/+80 Centigrade |
|
Relative Humidity |
0%~90% (non-condensing) |
|
Product Dimension & Details |
|
|
Size |
213*255*66mm |
|
Weight |
Net 1.6kg, Gross 2.5kg |
|
Shell |
Silver color aluminum alloy(any customized color for bulk order) |
|
Mounting |
4 Mounting holes on case |
|
Cooling Mode |
Fanless |
|
Functions |
AWAL, Wake On LAN, RTC |
|
Package Content |
|
|
Standard |
1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag |
|
Optional |
Wi-Fi antennas, 1xHDMI cable, 1xUser Manual, 1xLong Screws Bag |
If you are interested in the product, contact 2bvideo.com for more information for more information
