YZPST-ZP3016-RD3016-ZP30A1600V 30A Rectifier Diode

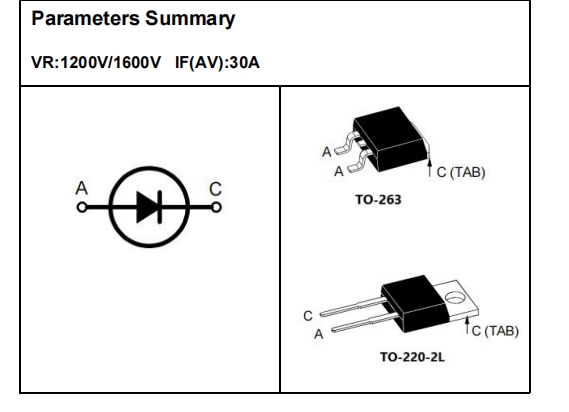

APPLICATIONS:
• Input rectification
•Semiconductors switches and output rectifiers which are available in identical package outlines
ABSOLUTE MAXIMUM RATINGS
|
Parameter |
Symbol |
Test Conditions |
Value |
Unit |
|
Storage junction temperature range |
Tstg |
|
-55 ~ 150 |
℃ |
|
Operating junction temperature range |
Tj |
|
-55~ 150 |
℃ |
|
Maximum Repetitive peak reverse voltage |
VRRM |
|
1600 |
V |
|
Maximum average forward current |
IF(AV) |
TC = 105 °C, 180° conduction half sine wave |
30 |
A |
|
Maximum peak one cycle non-repetitive surge current |
IFSM |
10 ms sine pulse, no voltage reapplied |
350 |
A |
|
I2t value for fusing (tp=10ms) |
I2t |
10 ms sine pulse, no voltage reapplied |
612 |
A2S |
ELECTRICAL CHARACTERISTICS (T=25℃unless otherwise specified)
Thermal Resistances
Parameter
Symbol
Test Conditions
Value
Unit
Maximum forward voltage drop
VFM
IF=30 A
1.2
V
Maximum reverse leakage current
IRM
TJ = 25 °C
5
µA
VR = Rated VRRM
TJ = 150 °C
1
mA
VR = Rated VRRM

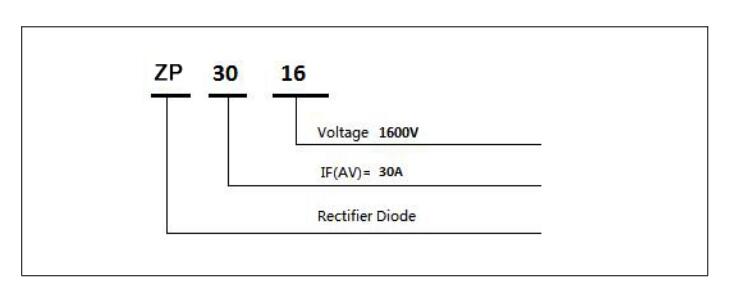

Ordering Information Scheme
Symbol
Parameter
Value
Unit
Rth(j-a)
junction to ambient
45
℃/W
Rth(j-c)
Junction to case
0.9

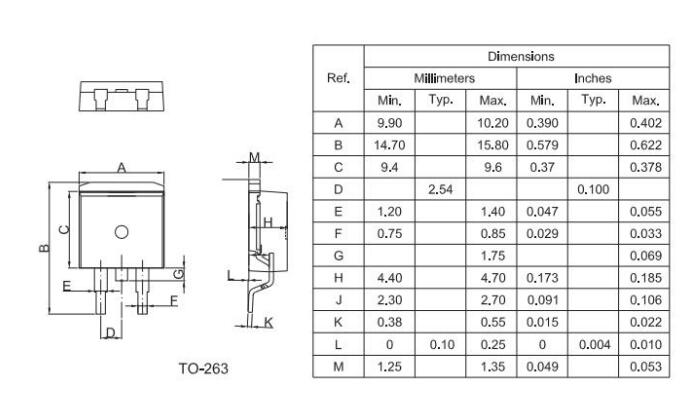

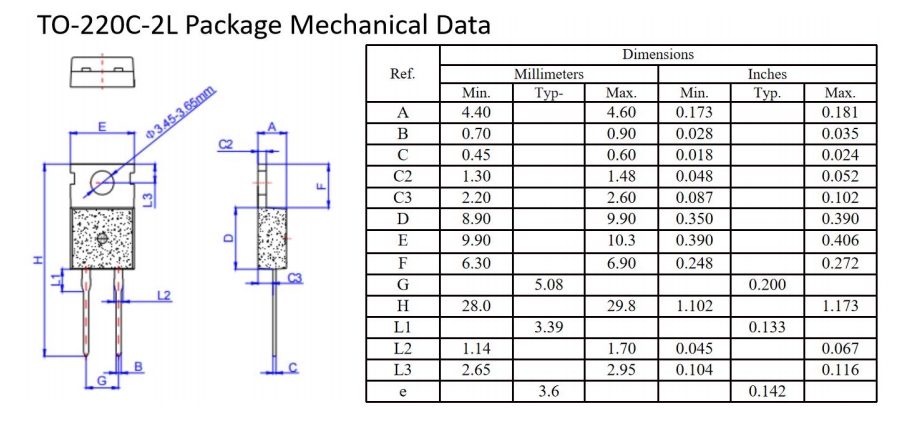

TO-263 Package Mechanical Data
