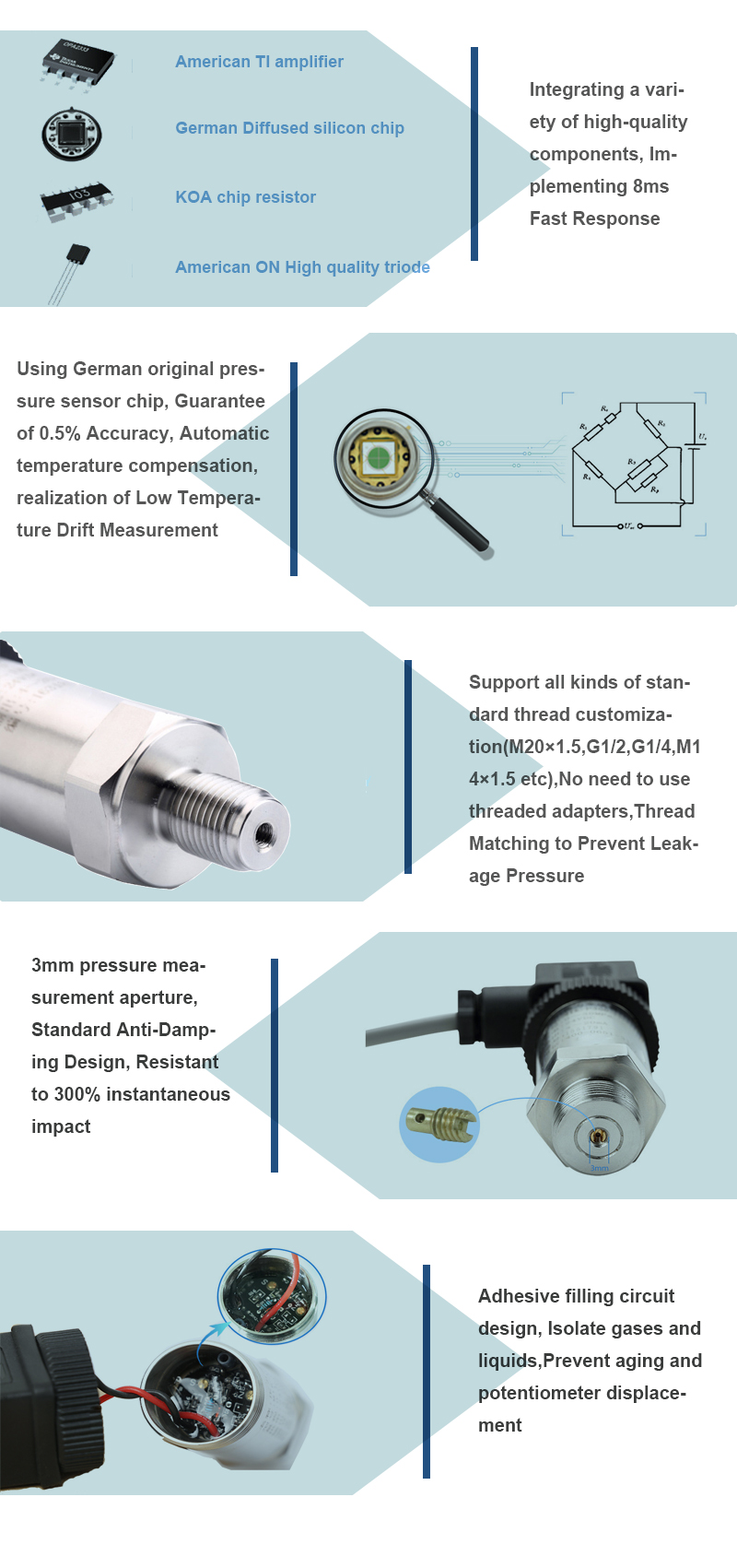

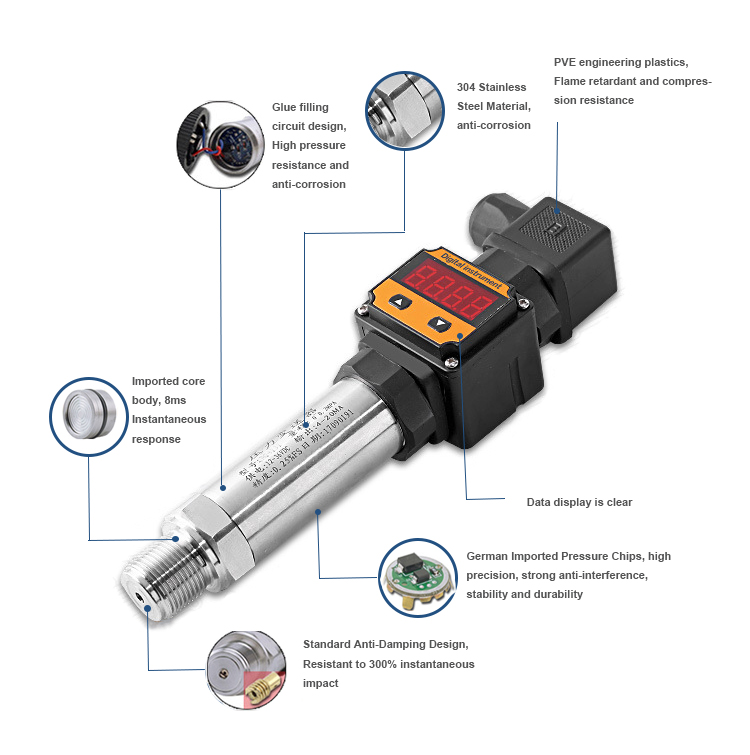

Industrial pressure sensor adopts diffused silicon pressure sensor as pressure sensing element. High precision.Complete with a fully welded stainless steel housing, high shock and vibration and EMI/RFI protection. The Hirschmann, directly cable and M12*4PIN interface.
Product overview
|
Performance parameters |
|
|||
|
Pressure range |
-100kPa…0~100kPa…60MPa |
|||
|
Pressure reference |
Gauge pressure | Absolute pressure |
|||
|
Excitation |
24V(typical) (9~32V) |
24V(typical) (9~30V) |
24V(typical) (15~30V) |
|
|
Output |
4 to 20mA |
1 to 5V | 0 to 5V | 1 to 6V |
0 to 10V | 1 to 10V |
|
|
Accuracy |
±0.5%F.S. (typical) | ±1%F.S. (max.) |
|||
|
Nonlinearity |
≤±0.2%F.S. (Best Fit Straight Line) |
|||
|
Hysteresis & repeatability |
≤±0.1%F.S. |
|||
|
Zero temp. coefficient |
±0.1%FS/10k(typical); ±0.2%FS/10k(max.) |
|||
|
Span temp. coefficient |
±0.1%FS/10k(typical); ±0.2%FS/10k(max.) |
|||
|
Response time |
Viscosity of liquid<100cSt |
<4ms |
||
|
gas |
<35ms |
|||
|
Overpressure |
1.5×FS (max.90MPa) |
|||
|
Burst pressure |
2×FS (max.120MPa) |
|||
|
Service life |
>10×106 pressure cycles |
|||
|
Ambient temp. |
-40ºC - 85ºC |
|||
|
Medium temp. |
-40ºC - 100ºC |
|||
|
Storage temp. |
-50ºC - 85ºC |
|||
|
Compensated temp. |
0ºC - 80ºC |
|||
|
EMC-interference |
EN 61000-6-3 |
|||
|
EMC-immunity |
EN 61000-6-2 |
|||
|
Insulation resistance |
>200MΩ/250VDC |
|||
|
Power frequency test |
SEN 361503 |
|||
|
Vibration resistance |
Sine curve |
15.9mm-pp, 5Hz~25Hz |
IEC 60068-2-6 |
|
|
20g, 25Hz~2kHz |
||||
|
Random |
7.5grms, 5Hz~1kHz |
IEC 60068-2-64 |
||
|
Shock resistance |
Shock: 500g/1ms |
IEC 60068-2-27 |
||
|
Free fall |
IEC 60068-2-32 |
|||
