Chamber Shrink Packager

3 year ago
62 0
Product details

Pneumatic Combo L-Bar Sealer and Shrink


DESCRIPTION

Semi-auto Sealing And Shrinking Series Technical Features of Sealer:

1. Combo design of sealing and shrinking, compact and quite easy to move with castors.

2. Tefloncoated sealing wire in bakelite slots, making the seams straight, closed and unburnt.

3. Liftable sealing and shrinking platform is versatile for packing products in different heights.

4. Mis-cutting and overheating protection devices can effectively protect the products and operator.


Semi-auto Sealing And Shrinking Series Technical Features of Tunnel:

1. Stainless steel heating tubes and strong blowing motor ensure high heating efficiency, large air volume and uniform air circulation.

2. Solid metal rods wrapped by heat-resistance silicone tubes make the conveyor rollers strong and resilient


Scope Of Application:

1. Pneumatic L Bar Sealer is suitable for the packing demands of the mass production in industries such like electronics, hardware, plastics, software, food, printing, pharmaceuticals, floors and other construction materials.

2. Applicable films for Pneumatic L Bar Combo Sealer: PVC/POF

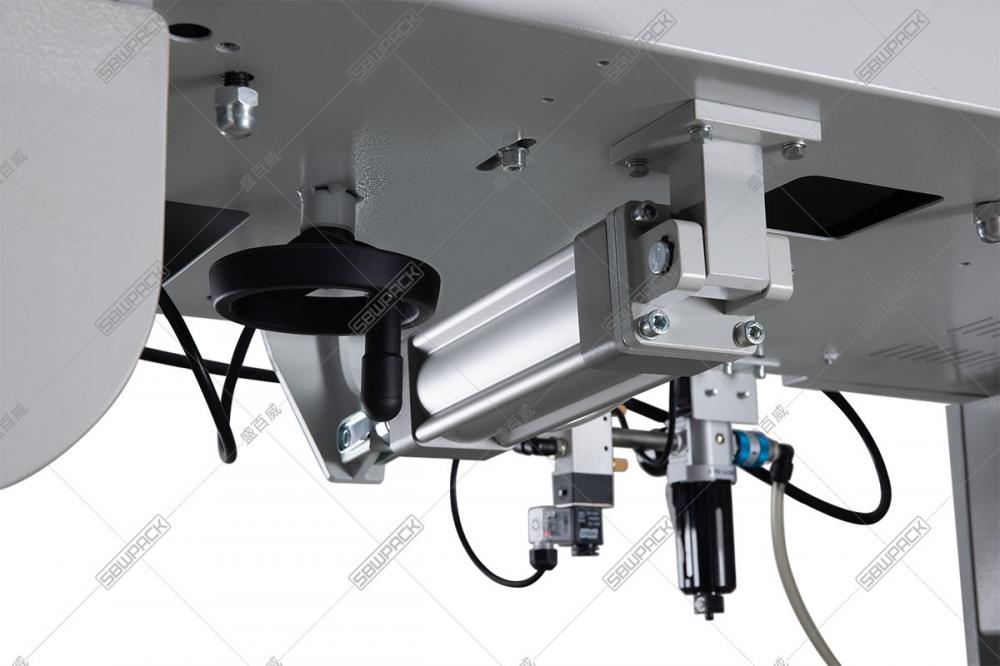

Pneumatic Combo Sealer Cylinder


Model
FL-5545T+SM-4525-C-28″
FL-5545TB+SM-4525-C-28″
Machine Dimensions (mm)

2529 X 724 X 1612

2529 X 724 X 1612

Max packing size L+H(mm) H<200

≤500

≤500

Max Packing Size W+H(mm) H<200

≤400

≤400
Max Sealing Size (mm)

550×450

550×450

Packing speed(pcs/h)
Conveyor speed(m/min)

800-1200

800-1200
N.W. (kg)
420
420
Power (kw)
11
11

Power supply

3PH 220V/380V 50/60Hz

3PH 220V/380V 50/60Hz

Air Source(kg/cm²) / 6-8
Applicable Film
POF/PVC
POF/PVC
