YZPST-SL-R3040SRCP386 3.0 mm ROTUNDITY LED LAMP

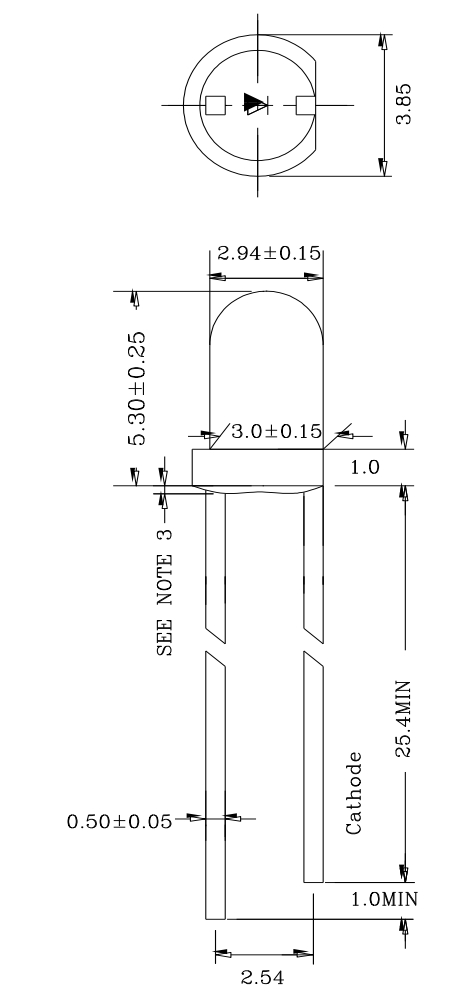

PACKAGE DIMENSIONS

Note:

1. All Dimensions are in millimeters.

2. Tolerance is ±0.25mm (0.010 "). Unless otherwise specified.

3. Protruded resin under flange is 1.5mm (0.059 ") max.

4. The lamps have sharp and hard points that may injure human eyes or fingers etc., so please pay enough care in the handling.

5. ESD≤400V

FEATURES

3.0mm DIA Rotundity LED lamp

Low power consumption

I.C. Compatible

Long life solid state reliability

PB Free product (Compliant with EU’s RoHS.)

CHIP MATERIALS

Dice Material : GaAlInP

Light Color : Red

Lens Color : Water Clear

ABSOLUTE MAXIMUM RATING : ( Ta = 25°C )

Symbol	Parameter	Rated	Unit
PAD	Power Dissipation	70	mW
VR	Reverse Voltage	5	V
IF	Average Forward Current	30	mA
IPF	Peak Forward Current Per Chip (Duty-0.1,1KHz)	100	mA
-	Derating Linear From 25 °C	0.4	mA/ °C
Topr	Operating Temperature Range	-25 °C to 85 °C
Tstg	Storage Temperature Range	-40 °C to 85 °C

ELECTRO-OPTICAL CHARACTERISTICS : ( Ta = 25 °C )

SYMBOL	PARAMETER	TEST	MIN.	TYP.	MAX.	UNIT
Vf	Forward Voltage	IF=20mA	1.8		2.2	V
IR	Reverse Current	VR=5 V			10	μA
λd	Dominant Wavelength	IF=20mA	620		630	nm
2θ1/2	Half Intensity Angle	IF=20mA		30		deg
Iv	Luminous Intensity	IF= 20mA	500		1000	mcd
