Product details

3 phase 7.5kw 11kw 15kw Submersible Borehole Pump

Submersible Borehole Pumps Descriptions

Submersible Borehole Pumps are designed specifically for water extraction from deep wells, integrating an efficient energy-saving motor and precision sealing system to ensure stable operation even in harsh well conditions. Based on fluid dynamics principles, it generates strong suction and thrust through the rotation of the impeller inside the pump, drawing water from the bottom of the well and delivering it to the surface. Suitable for agricultural irrigation, industrial cooling, and urban water supply among other fields. We offer customization services to meet your different application needs. All products undergo rigorous testing before leaving the factory to ensure outstanding quality and stable performance.

The Submersible Pump can be customized according to different head and flow rate requirements.

The Submersible Well Pump is available in Cast iron, SS 304, SS 316, SS 316 L, Duplex SS, SS 904 L.

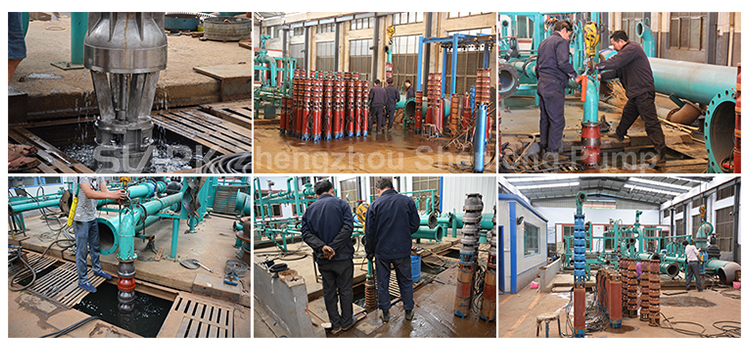

We test each submersible water pump before delivery, such as dynamic and static balance testing, material analysis testing, casting testing, and submersible pump submerged in water for 48 hours to test leaking or not.

Deep Well Water Pump Submersible Pump Technical Parameters Part of parameters, for reference only.

Diameter Inch (")	Model	Power (hp)	Rated Flow (m3/h)	Rated Head (m)
7"	175QJ40-36/3	10	40	36
7"	175QJ50-48/4	15	50	48
8"	200QJ20-135/10	20	20	135
8"	200QJ25-56/4	10	25	56
8"	200QJ32-96/6	20	32	96
8"	200QJ50-65/5	20	50	65
8"	200QJ63-28/2	10	63	28
8"	200QJ80-22/2	10	80	22
8"	200QJ100-30/2	20	100	30
10"	250QJ50-60/3	20	50	60
10"	250QJ63-40/2	15	63	40
10"	250QJ100-36/2	20	100	36
