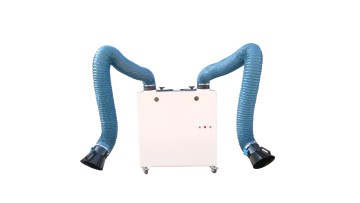

In order to protect metal processing workers and environment, industrial dust collection has become a common choice for most of metal fabrication factories. Our MLWF350 Mobile Fume Extractor can extract welding fumes and smoke at source. The MLWF350 Mobile Fume Extractor is with flexible extraction arm, which can be hovered at the right place where welding fumes and smoke producing to meet a high performance dust collection effect.
1- Integral structure, with Fuma wheel at the bottom, flexible movement and fixing.
2- Anti-suction device to make the effect of ash cleaing more thorough
1- Filtration efficiency (>99.9%) of main filter core (covered polyester fiber)
3- PLC intelligent controll system
5- Differential pressure gauge
8- Left and right air intakes (φ200）
10- Spark trap (large particle dust pre-filter)
Welding workstation (3m*2.5m*4m)
Artificial welding position *2
Grinding machine, intersecting wire cutting and other working conditions
| Power | 3KW | Spare Parts List |
| Voltage | 380V 50Hz |
Main Filter Element Dia.325*660mm Suction Arm Dia.160*2000mm Suction Arm Dia.160*3000mm Spiral duct GD200 Suction hood mouth ZK2015
|
| Air Volume | 3000~3500m3/h | |
| Accuracy | 0.3um | |
| Filter Material | Imported flame retardant coated polyester fibers | |
| Filter Area | 22m2 | |
|
Filter Size |
||
| Cleaning | Pulse back blow | |
| Noise | 70dBA | |
| Size | 840*800*1850mm | |
| Weight | 270kg |
Moland is a professtion manufacurer of industrial dust collection system. We mainly supply Mobile Fume Extractors, Industrial Dust Collectors, Welding Fume Exhaust System, CNC Cutting Smoke Extractors, Polishing Downdraft Tables, Laser Marking Fume Extractors, etc. We have professional technical team to design the most suitable dust collection solution according to your workshop condition.
