The FRD60B20 is a ultrafast soft recovery rectifier diode. It has the characteristics of low forward voltage ，low leakage current ，low power loss，higher reliability systems， RoHS standard.
TO-3PN ultrafast soft recovery rectifier diode FRD60B20
ABSOLUTE MAX I MUM RATINGS Ratings (at 25℃ ambient temperature unless otherwise specified.)
ELECTRICAL CHARACTERISTICS (at 25℃ ambient temperature unless otherwise specified)
Symbol
Parameter
Value
Unit
VR
Maximum D.C. Reverse Voltage
VRRM
Maximum Peak Repetitive Reverse Voltage
VRWM
Working Peak Reverse Voltage
200
V
IF(AV)
Continuous forward current ，TC= 110℃
60
IFSM
Single pulse forward current ，TC=25℃
600
A
TJ,TSTG
Operating and Storage Temperature Range
-55 to +175
°C

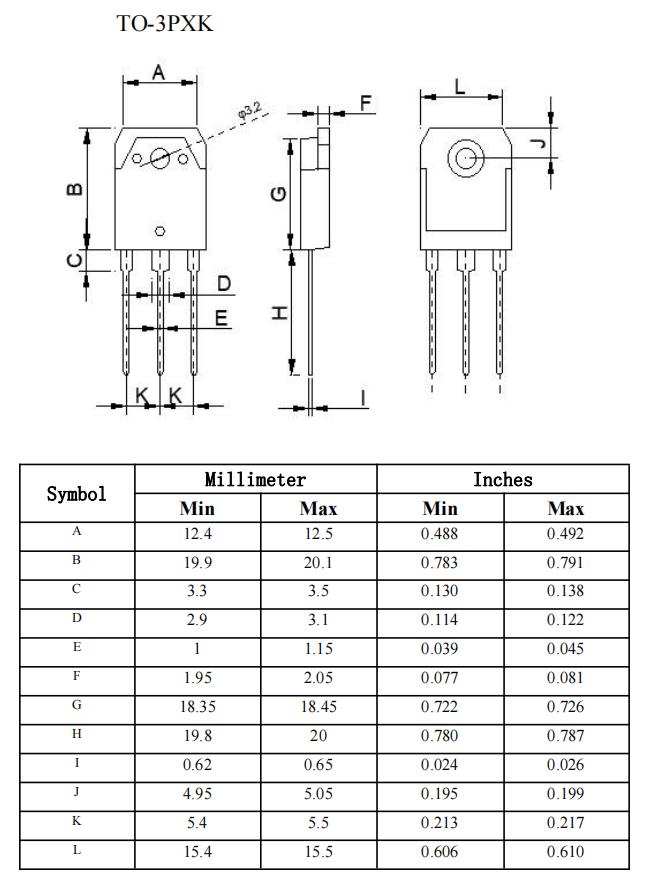

PACKAGE MECHANICAL DATA
Symbol
Parameter
Test Condition
Value
Unit
MIN
TYPE
MAX
VBR
Reverse breakdown voltage
IR= 100µA
200
I F =30A
0.96
1.15
VF
Forward voltage
I F =30A, Tj = 125℃
0.86
1
V
VR =200V
20
IR
Reverse leakage current
Tj = 150℃, VR =200V
200
uA
I F =0.5A, I R = 1A,
35
trr
Reverse recovery time
I RR =0.25A
ns
I F = 1A,VR =30V, di/dt =200A/us
23
35
